HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-08040iAXLH40..L,P202211

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-08040iAXLH40..L,P202211

53301HOOD SUB-ASSY

main53301-08090iAXLH4#..E,L,P,V,W,X202211-202509

53326ACLIP, HOOD MOULDING

main90467-C0006iAXLH4#..E,L,P,V,W,X202211

53326BCLIP, HOOD MOULDING

main53326-0D010iAXLH4#..E,L,P,V,W,X202211

53341BINSULATOR, HOOD

main53341-08040iAXLH4#..E,L,P,V,W,X202211

53393BPROTECTOR, HOOD, FRONT

main53393-08030iAXLH4#..E,L,P,V,W,X202211

53747DEXTENSION, APRON FENDER SIDE, RH

main53747-08120iAXLH40..L,P202211

53748DEXTENSION, APRON FENDER SIDE, LH

main53748-08090iAXLH40..L,P202211

53811BPANEL, FRONT FENDER, RH

main53811-08080iAXLH4#..E,L,P,V,W,X202211

53812DPANEL, FRONT FENDER, LH

main53812-08070iAXLH4#..E,L,P,V,W,X202211

53882KSEAL, FRONT FENDER

main53882-0D020iAXLH4#..E,L,P,V,W,X202211

53882QCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-C0045-C0iAXLH4#..E,L,P,V,W,X202211

BLACK

53882SSEAL, FRONT FENDER, RH

main53882-08050iAXLH4#..E,L,P,V,W,X202211

53883DSEAL, FRONT FENDER, LH

main53883-08050iAXLH4#..E,L,P,V,W,X202211

53883PCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-C0045-C0iAXLH4#..E,L,P,V,W,X202211

BLACK

90119C0075

main90119-C0075

9095006064

main90950-06064¥110

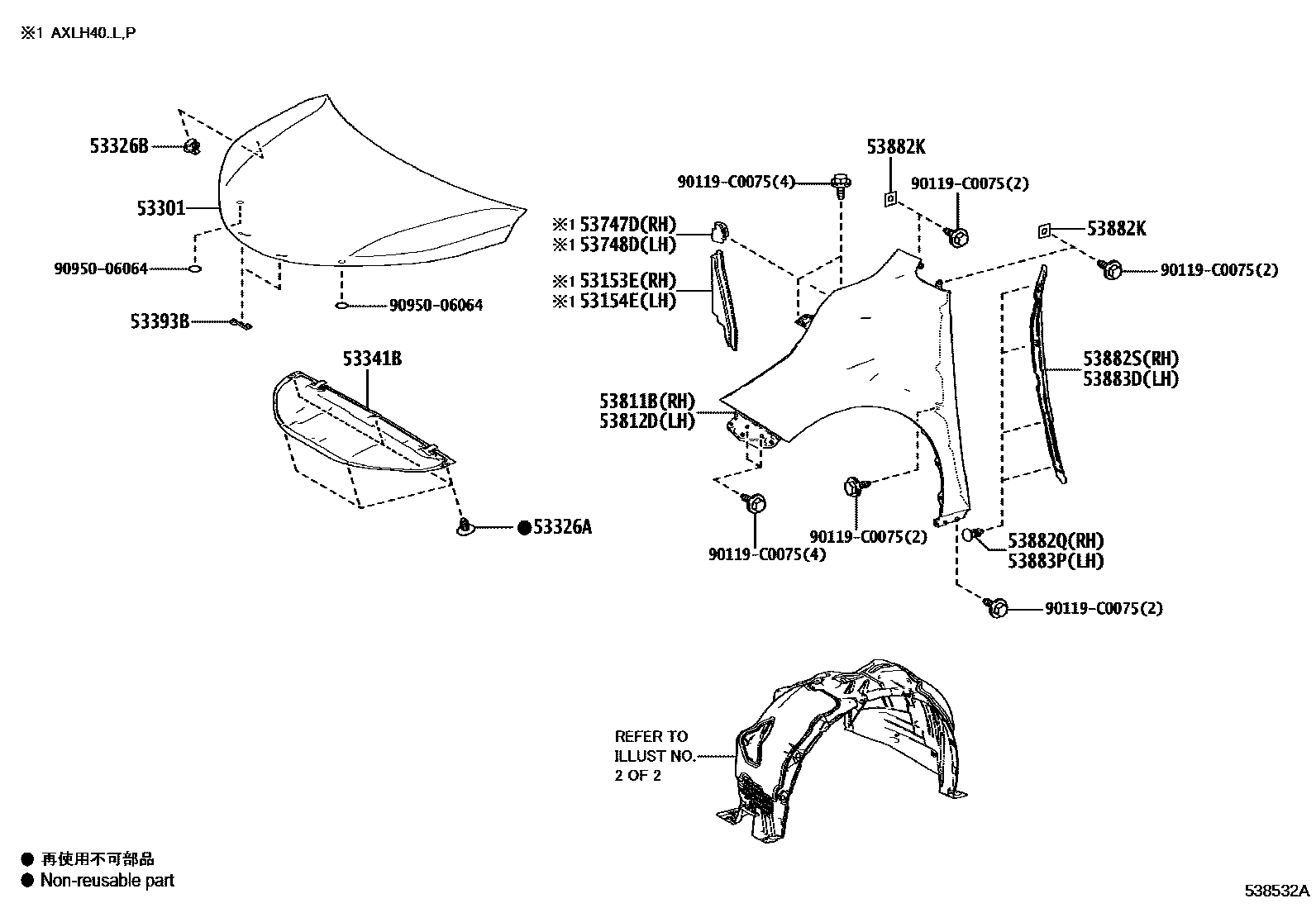

18 parts on this diagram · 2 diagrams in section
