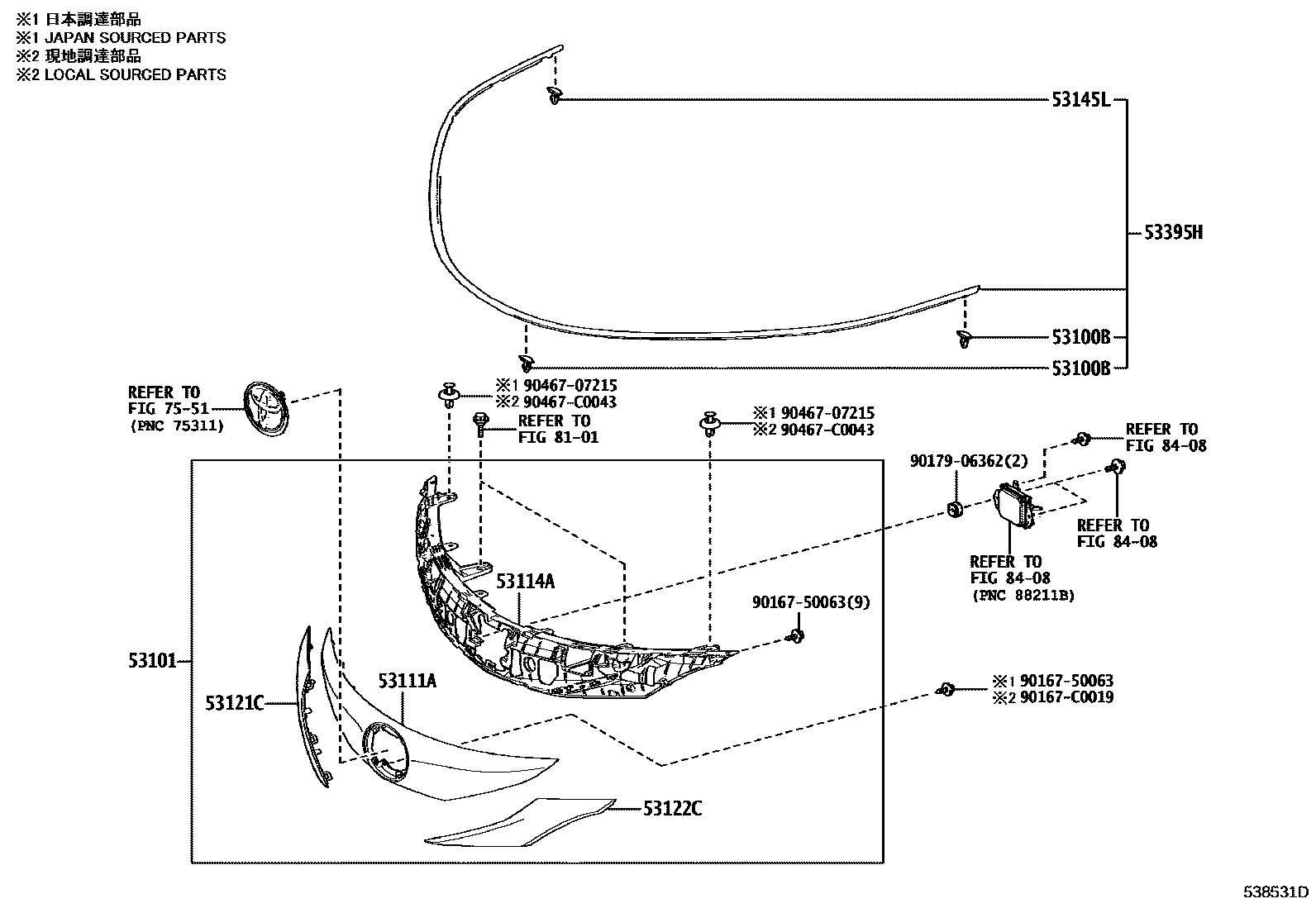

RADIATOR GRILLE

53100BCLIP, RADIATOR GRILLE

main53145-08020iAXLH4#202211

53101GRILLE SUB-ASSY, RADIATOR

main53101-08260iAXLH40..E202211

PLATED

main53101-08270iAXLH4#..L,P,V,W,X202211

PLATED

53111AGRILLE, RADIATOR, OUTSIDE

main53111-08200iAXLH40..E202211

main53111-08210iAXLH4#..L,P,V,W,X202211

53114AGRILLE, RADIATOR, INNER

main53114-08090iAXLH4#..E,L,P,V,W,X202211

53121CPLATE, RADIATOR GRILLE FINISH, RH

main53121-08060iAXLH40..E202211

main53121-08070iAXLH4#..L,P,V,W,X202211

53122CPLATE, RADIATOR GRILLE FINISH, LH

main53122-08110iAXLH40..E202211

main53122-08120iAXLH4#..L,P,V,W,X202211

53145LCLIP, RADIATOR GRILLE

main53145-60030iAXLH4#202211

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-08030iAXLH4#202211

7551

8101

8408

9016750063

main90167-50063

90167C0019

main90167-C0019

9017906362

main90179-06362

9046707215

main90467-07215

90467C0043

main90467-C0043

16 parts on this diagram · 1 diagram in section
