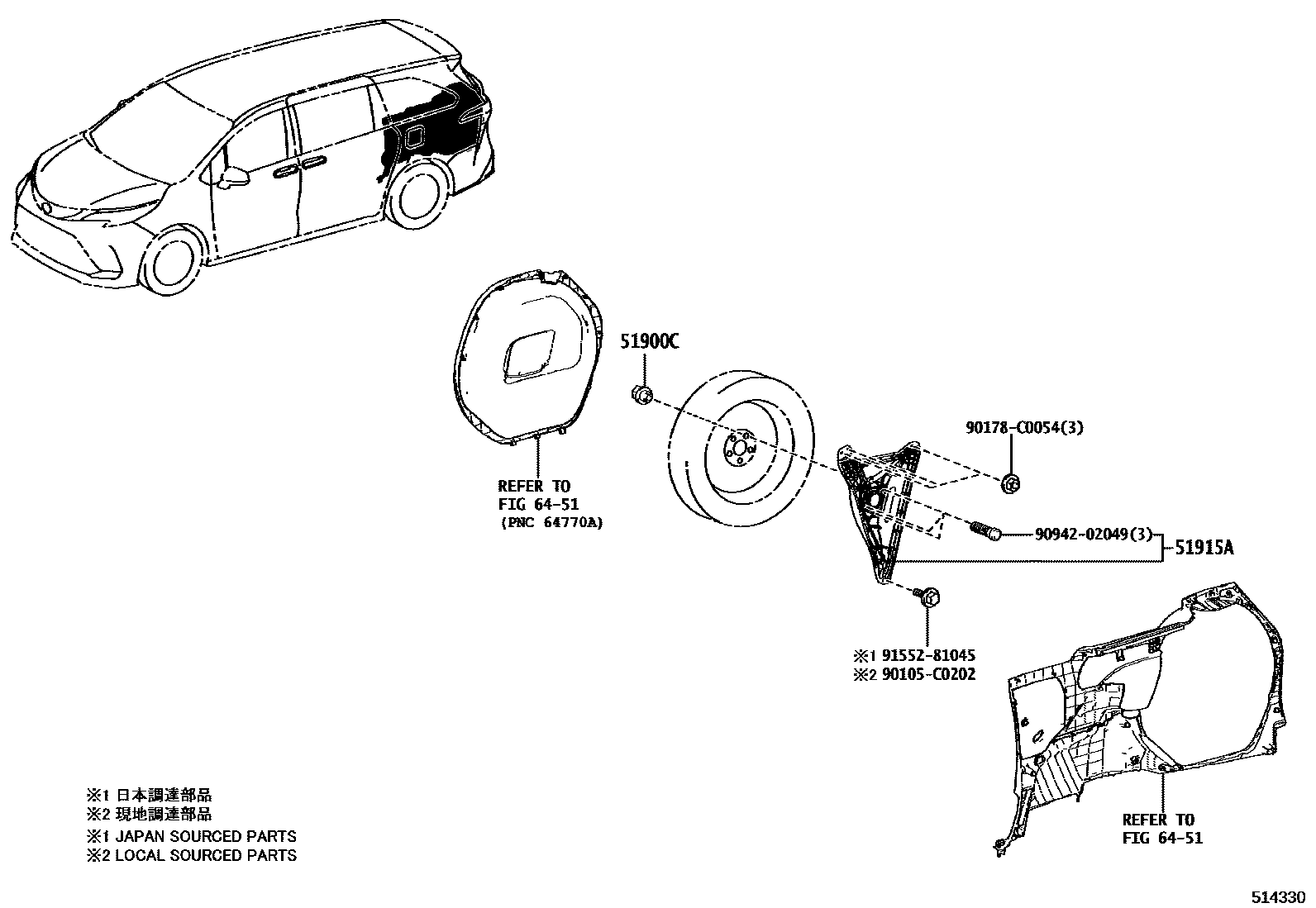

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-C1001iAXLH4#202211

51915ABASE, SPARE WHEEL CARRIER

main51915-08040iAXLH4#..E,L,P,V,W,X202211

6451

90105C0202

main90105-C0202

90178C0054

main90178-C0054

9094202049

main90942-02049

9155281045

main91552-81045

7 parts on this diagram · 1 diagram in section
