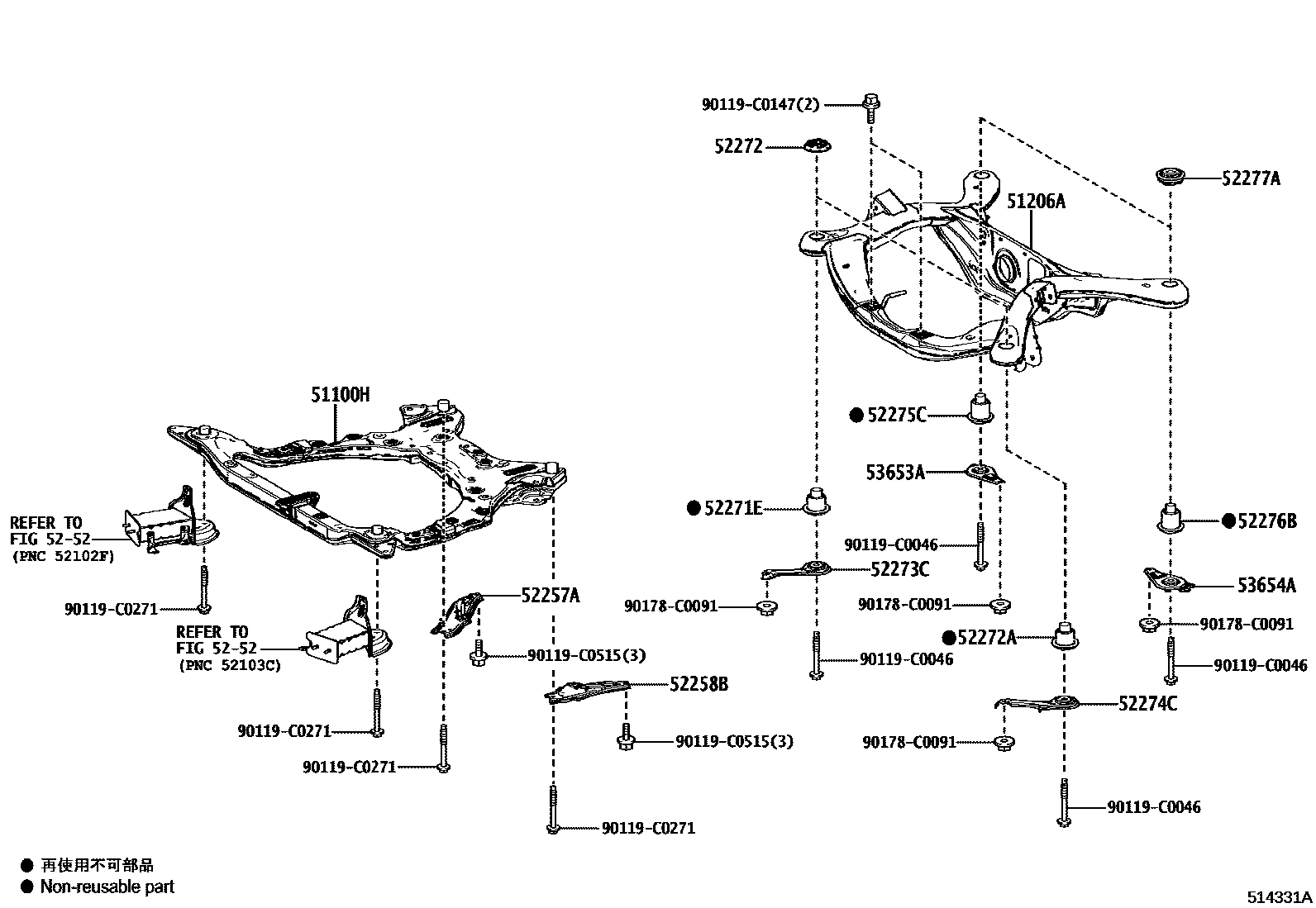

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-08130iAXLH40202211-202303

sub51100-08140

main51100-08140iAXLH4#..E,L,P,V,W,X202303

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-08030iAXLH4#..E,L,P,V,W,X202211

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-08070iAXLH4#..E,L,P,V,W,X202211

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-08070iAXLH4#..E,L,P,V,W,X202211

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E100iAXLH4#..E,L,P,V,W,X202211

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E100iAXLH4#..E,L,P,V,W,X202211

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E100iAXLH4#..E,L,P,V,W,X202211

52273CSTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-08040iAXLH4#..E,L,P,V,W,X202211

52274CSTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-08040iAXLH4#..E,L,P,V,W,X202211

52275CCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR RH

main52275-0E100iAXLH4#..E,L,P,V,W,X202211

52276BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52276-0E050iAXLH4#..E,L,P,V,W,X202211

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E100iAXLH4#..E,L,P,V,W,X202211

5252

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-08040iAXLH4#..E,L,P,V,W,X202211

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-08040iAXLH4#..E,L,P,V,W,X202211

90119C0046

main90119-C0046

90119C0147

main90119-C0147

90119C0271

main90119-C0271

90119C0515

main90119-C0515

90178C0091

main90178-C0091

20 parts on this diagram · 2 diagrams in section
