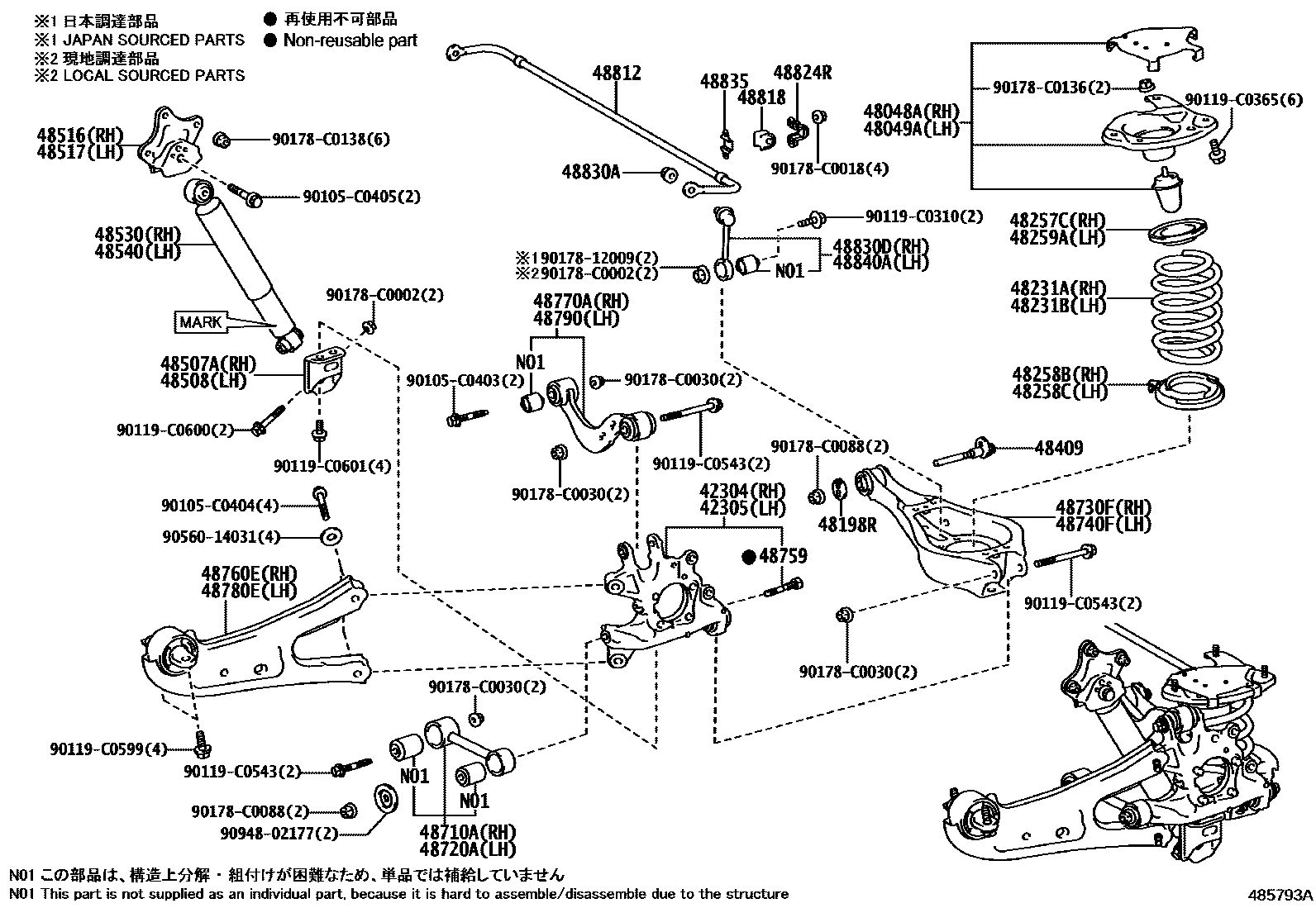

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0E110iAXLH4#202211

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0E110iAXLH4#202211

48048ASEAT SUB-ASSY, SPRING, RH

main48048-08030iAXLH4#202211

48049ASEAT SUB-ASSY, SPRING, LH

main48049-08030iAXLH4#202211

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-48010iAXLH4#202211

48231ASPRING, COIL, REAR RH

main48231-08220iAXLH40..E,N202211

TIRE & DISC WHEEL-235/60R18 7.5J

main48231-08220iAXLH40..L,X202211-202404

main48231-08230iAXLH40..L,X202211-202404

TIRE & DISC WHEEL-235/50R20 7.5J

main48231-08230iAXLH40..P202211

main48231-08250iAXLH45202404

48231BSPRING, COIL, REAR LH

main48231-08220iAXLH40..E,N202211

TIRE & DISC WHEEL-235/60R18 7.5J

main48231-08220iAXLH40..L,X202211-202404

main48231-08230iAXLH40..P202211

main48231-08230iAXLH40..L,X202211-202404

TIRE & DISC WHEEL-235/50R20 7.5J

main48231-08250iAXLH45202404

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-08050iAXLH4#202211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0E090iAXLH4#202211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0E090iAXLH4#202211

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-08050iAXLH4#202211

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-0E060iAXLH4#202211

48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH

main48507-0E050iAXLH4#202211

48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH

main48508-0E050iAXLH4#202211

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-08040iAXLH4#202211

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-08040iAXLH4#202211

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-08200iAXLH40..P202211

MARK 48531-08200,TIRE & DISC WHEEL-235/60R18 7.5J

main48531-08200iAXLH40..L,X202211-202404

MARK 48531-08200

main48531-08210iAXLH40..L,X202211-202404

MARK 48531-08210,TIRE & DISC WHEEL-235/50R20 7.5J

main48531-08210iAXLH40..P202211

MARK 48531-08210

main48531-08220iAXLH45202404

MARK 48531-08220

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-08200iAXLH40..P202211-202404

MARK 48531-08200

main48531-08200iAXLH40..E,N202211

MARK 48531-08200,TIRE & DISC WHEEL-235/60R18 7.5J

main48531-08210iAXLH40..L,X202211-202404

MARK 48531-08210,TIRE & DISC WHEEL-235/50R20 7.5J

main48531-08210iAXLH40..L,X202211

MARK 48531-08210

main48531-08220iAXLH45202404

MARK 48531-08220

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0E110iAXLH4#202211

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0E110iAXLH4#202211

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0E130iAXLH4#202211

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-0E130iAXLH4#202211

48759PIN, LOWER CONTROL ARM

main48759-0E040iAXLH4#202211

48760EARM ASSY, TRAILING, REAR RH

main48760-08030iAXLH4#202211

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-08010iAXLH4#202211

48780EARM ASSY, TRAILING, REAR LH

main48780-08030iAXLH4#202211

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-08010iAXLH4#202211

48812BAR, STABILIZER, REAR

main48812-08050iAXLH4#202211

48818BUSH, STABILIZER, REAR

main48818-08040iAXLH4#202211

48824RBRACKET, STABILIZER(FOR REAR)

main48832-0E250iAXLH4#202211

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iAXLH4#202211

(L)

main94151-21241iAXLH4#202211

(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0E070iAXLH4#202211

48835BRACKET, REAR STABILIZER, LOWER

main48835-0E060iAXLH4#202211

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0E070iAXLH4#202211

90105C0403

main90105-C0403

90105C0404

main90105-C0404

90105C0405

main90105-C0405

90119C0310

main90119-C0310

90119C0365

main90119-C0365

90119C0543

main90119-C0543

90119C0599

main90119-C0599

90119C0600

main90119-C0600

90119C0601

main90119-C0601

9017812009

main90178-12009

90178C0002

main90178-C0002

90178C0018

main90178-C0018

90178C0030

main90178-C0030

90178C0088

main90178-C0088

90178C0136

main90178-C0136

90178C0138

main90178-C0138

9056014031

main90560-14031

9094802177

main90948-02177

52 parts on this diagram · 2 diagrams in section
