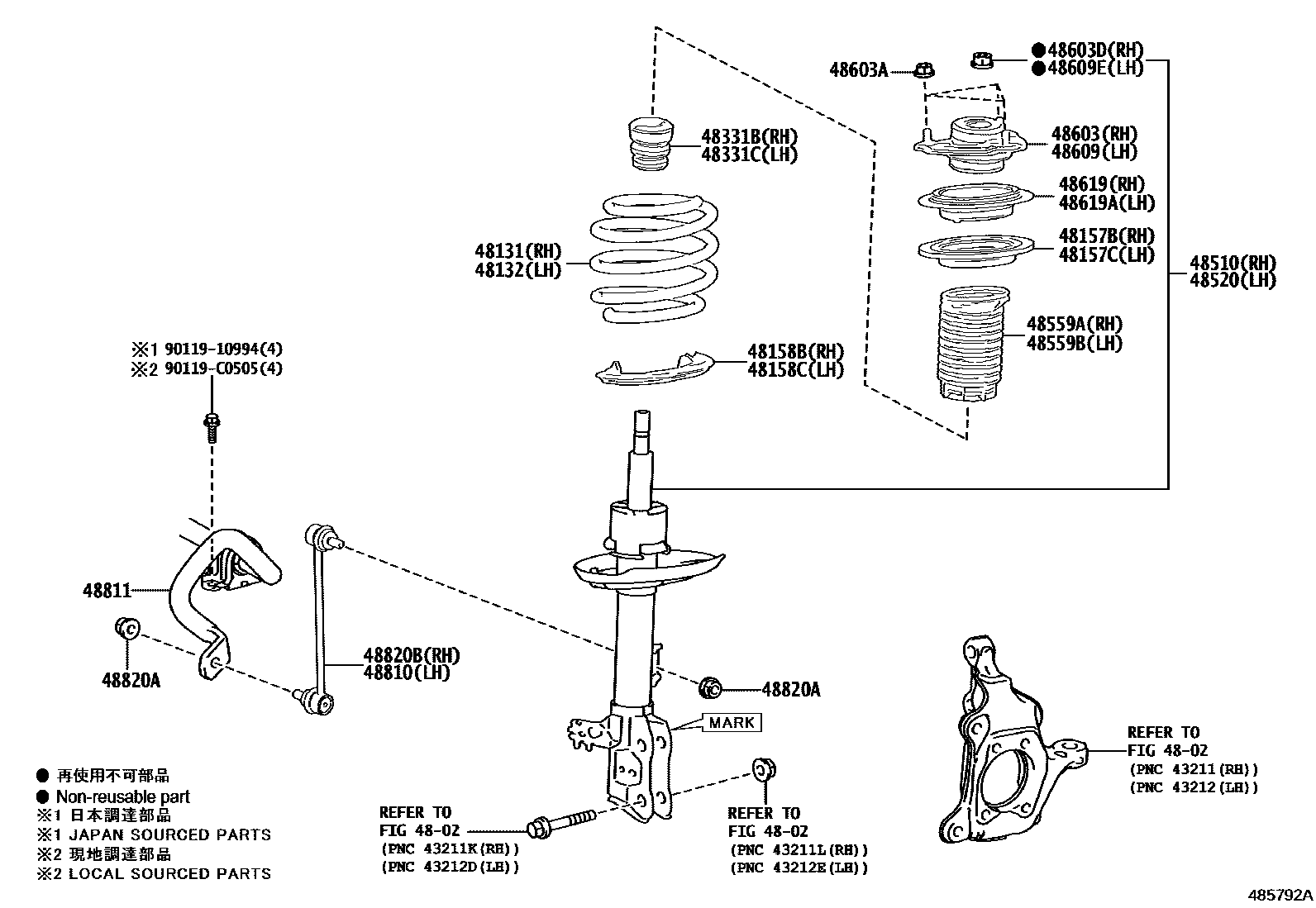

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-08200iAXLH4#..E,N,V,W202211

TIRE & DISC WHEEL-235/60R18 7.5J

main48131-08200iAXLH40..L,X202211-202404

main48131-08210iAXLH40..L,X202211

main48131-08210iAXLH40..L,X202211-202404

TIRE & DISC WHEEL-235/50R20 7.5J

48132SPRING, FRONT COIL, LH

main48131-08200iAXLH40..L,X202211

TIRE & DISC WHEEL-235/60R18 7.5J

main48131-08200iAXLH40..L,X202211-202404

main48131-08210iAXLH40..L,X202211

main48131-08210iAXLH40..L,X202211-202404

TIRE & DISC WHEEL-235/50R20 7.5J

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-07030iAXLH4#202211

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-07030iAXLH4#202211

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-07030iAXLH4#202211

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-07030iAXLH4#202211

48331BBUMPER, FRONT SPRING, RH

main48331-0E090iAXLH4#202211

48331CBUMPER, FRONT SPRING, LH

main48331-0E090iAXLH4#202211

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z564iAXLH40..L,X202211-202404

MARK 48510-08170

main48510-8Z564iAXLH40..L,X202211

MARK 48510-08170,TIRE & DISC WHEEL-235/60R18 7.5J

main48510-8Z565iAXLH40..L,X202211-202404

MARK 48510-08180,TIRE & DISC WHEEL-235/50R20 7.5J

main48510-8Z565iAXLH40..P202211

MARK 48510-08180

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z394iAXLH40..L,X202211-202404

MARK 48520-08170

main48520-8Z394iAXLH4#..E,N,V,W202211

MARK 48520-08170,TIRE & DISC WHEEL-235/60R18 7.5J

main48520-8Z395iAXLH40..L,X202211-202404

MARK 48520-08180,TIRE & DISC WHEEL-235/50R20 7.5J

main48520-8Z395iAXLH40..P202211

MARK 48520-08180

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-0R040iAXLH4#202211

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-0R040iAXLH4#202211

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0E110iAXLH4#202211

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iAXLH4#202211

(J)

main90178-C0033iAXLH4#202211

(L)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXLH4#202211

(J)

main90177-C0025iAXLH4#202211

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0E110iAXLH4#202211

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAXLH4#202211

(J)

main90177-C0025iAXLH4#202211

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-0R060iAXLH4#202211

48619ABEARING, STRUT MOUNTING, LH

main48619-0R060iAXLH4#202211

48810LINK ASSY, FRONT STABILIZER, LH

main48820-08050iAXLH4#202211

48811BAR, STABILIZER, FRONT

main48804-08040iAXLH4#202211

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0018iAXLH4#202211

(L)

main94151-21241iAXLH4#202211

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-08050iAXLH4#202211

9011910994

main90119-10994

90119C0505

main90119-C0505

26 parts on this diagram · 1 diagram in section
