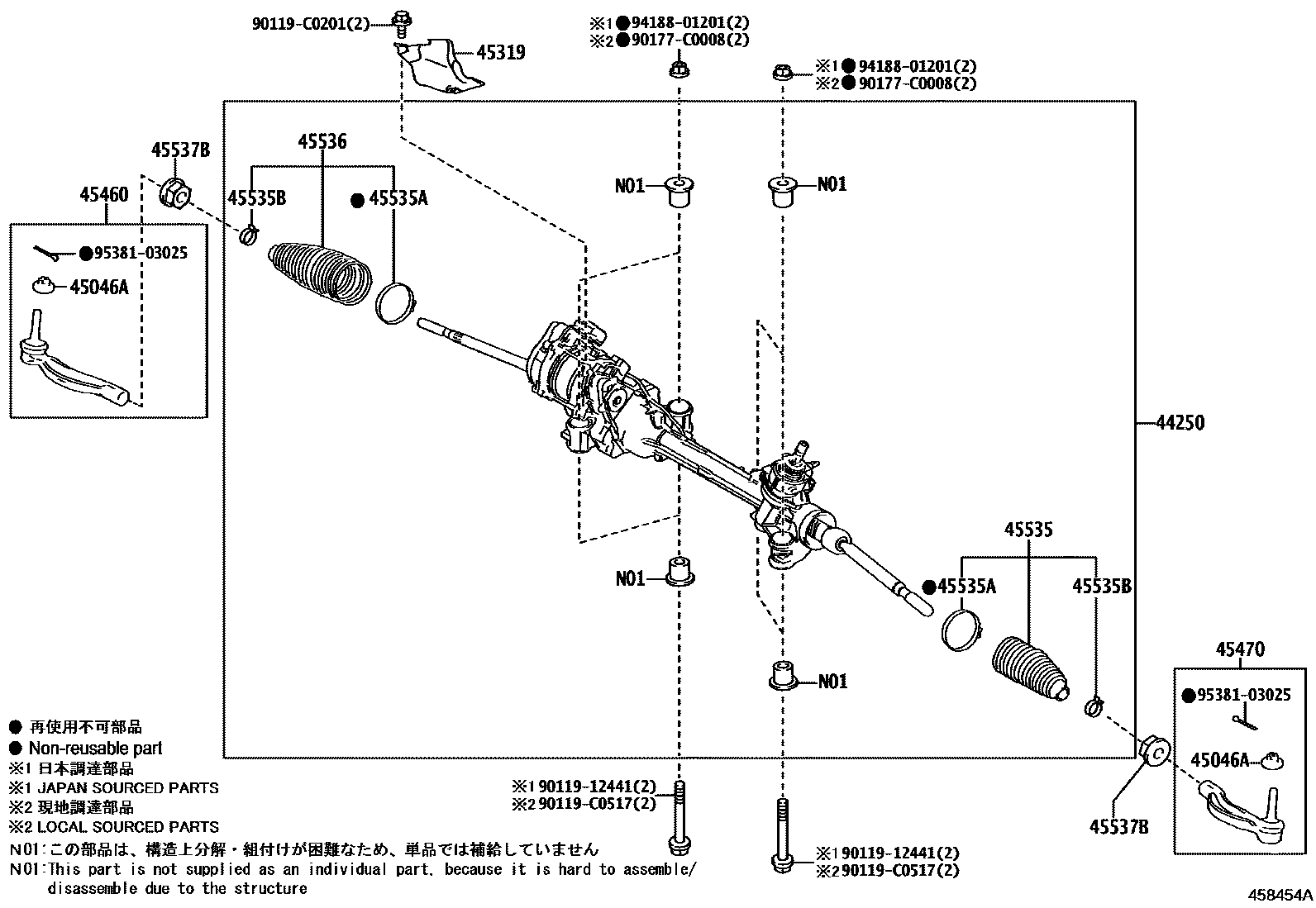

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-08180iAXLH40..E,L,N,X202211-202404

*614

main44250-08180iAXLH40..E,L,N,X202211-202404

TIRE & DISC WHEEL-235/60R18 7.5J,*614

main44250-08181iAXLH40..L,P,X202404-202508

*614

main44250-08181iAXLH40..E,N202404-202508

TIRE & DISC WHEEL-235/60R18 7.5J,*614

main44250-08190iAXLH40..P202211-202404

TIRE & DISC WHEEL-235/50R20 7.5J,*614

main44250-08190iAXLH40..P202211-202404

*614

main44250-08191iAXLH40..L,P,X202404-202508

*614

main44250-08210iAXLH45202404-202508

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXLH4#202211

(J)

main90171-C0014iAXLH4#202211

(L)

45319INSULATOR, STEERING GEAR HEAT

main45319-0R020iAXLH4#202211

45460ROD ASSY, TIE, RH

main45460-09420iAXLH4#202211

45470ROD ASSY, TIE, LH

main45470-09240iAXLH4#202211

45535BOOT, STEERING RACK, NO.1

main45535-09670iAXLH40202211

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06040iAXLH4#202211

45535BCLIP(FOR STEERING RACK BOOT)

main45537-08030iAXLH4#202211

45536BOOT, STEERING RACK, NO.2

main45535-09670iAXLH40202211

45537BNUT, RACK END LOCK

main90178-18003iAXLH4#202211

(J)

main90178-C0121iAXLH4#202211

(L)

9011912441

main90119-12441

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9418801201

main94188-01201

9538103025

main95381-03025

16 parts on this diagram · 1 diagram in section
