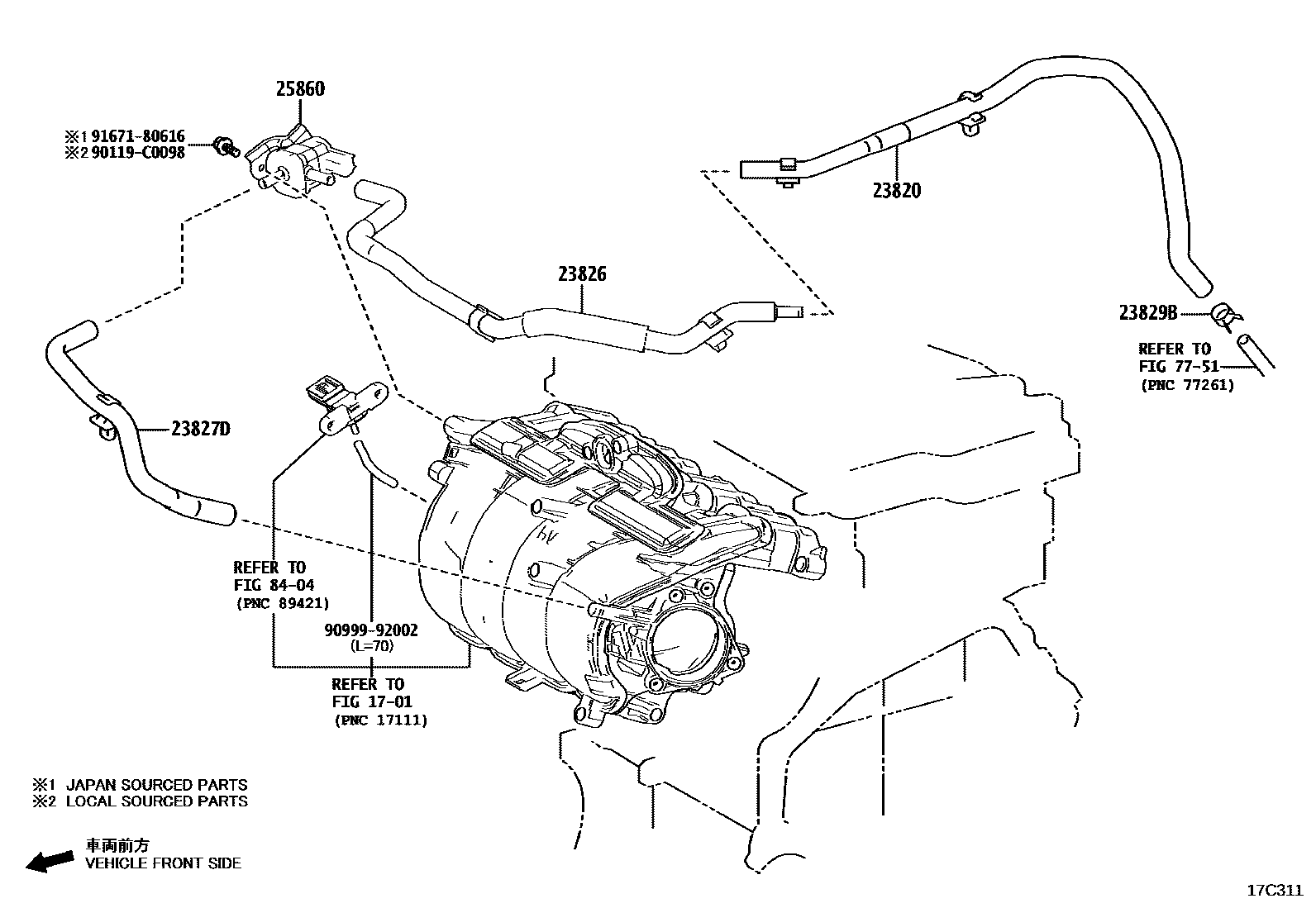

VACUUM PIPING

0001 1 0002 1

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0430iA25..AXLH4#202211

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AXLH4#202211

(J)

main23820-F0410iA25..AXLH4#202211

(L)

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AXLH4#202211

(J)

main23820-F0420iA25..AXLH4#202211

(L)

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96133-41501iA25..AXLH4#202211

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AXLH4#202211

(J)

main25860-F0070iA25..AXLH4#202211

(L)

7751

8404

90119C0098

main90119-C0098

9099992002

main90999-92002

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
