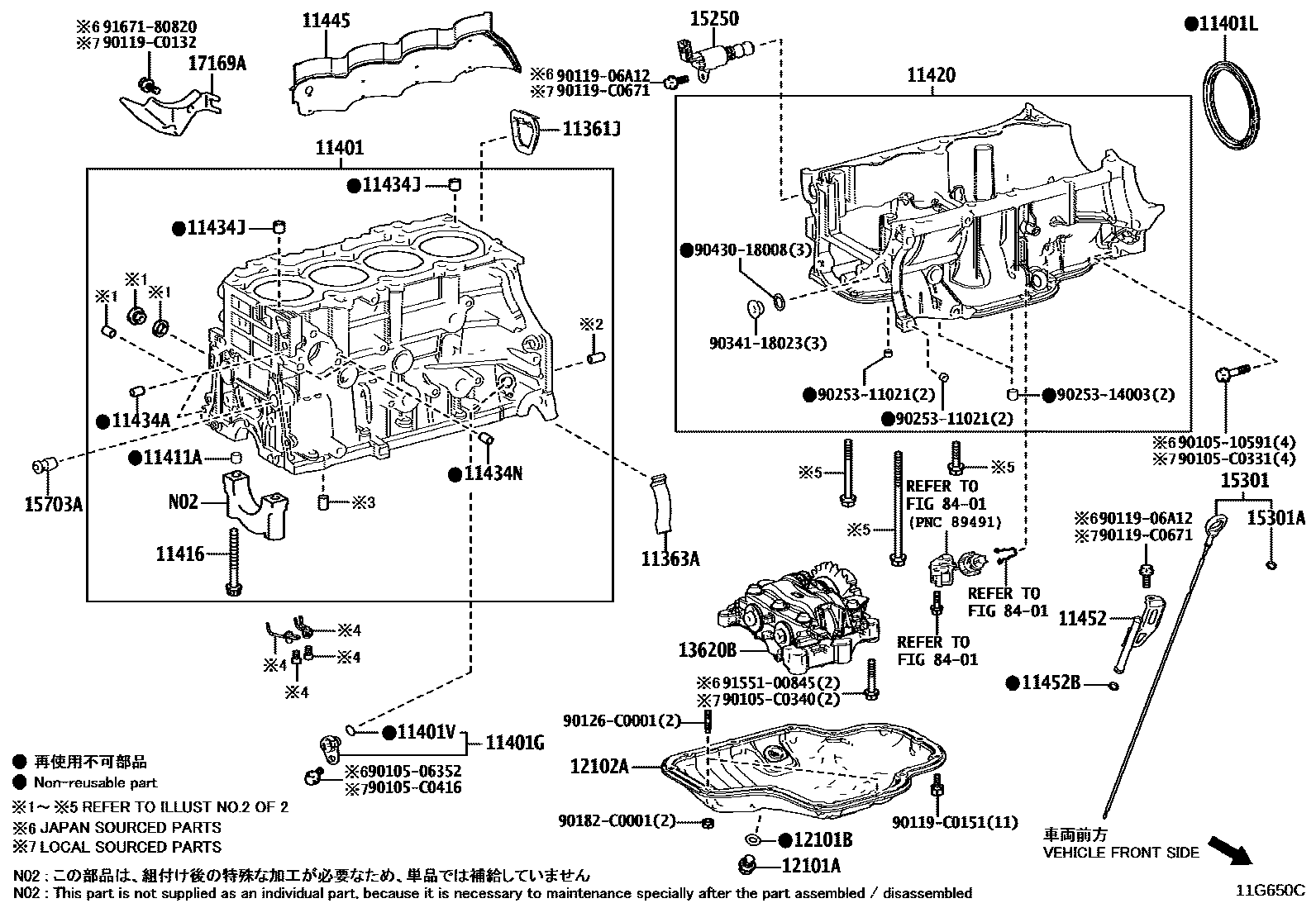

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(J)
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(J)
(L)
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
(J)
(L)
11401LSEAL, ENGINE REAR OIL
(J)
(L)
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
(J)
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
(J)
(L)
11452GUIDE, OIL LEVEL GAGE
(J)
(L)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
(J)
(L)
13620BBALANCER ASSY, ENGINE
15250VALVE ASSY, OIL PRESSURE CONTROL
(J)
(L)
15301GAGE SUB-ASSY, OIL LEVEL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
15301ARING, O(FOR OIL LEVEL GAGE)
(L)
(J)
15703AVALVE SUB-ASSY, OIL NOZZLE
(J)
(L)
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
8401
9010506352
9010510591
90105C0331
main90105-C0331
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
90126C0001
main90126-C0001
90182C0001
main90182-C0001
9025311021
9025314003
9034118023
9043018008
9155100845
9167180820
42 parts on this diagram · 2 diagrams in section
