HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR

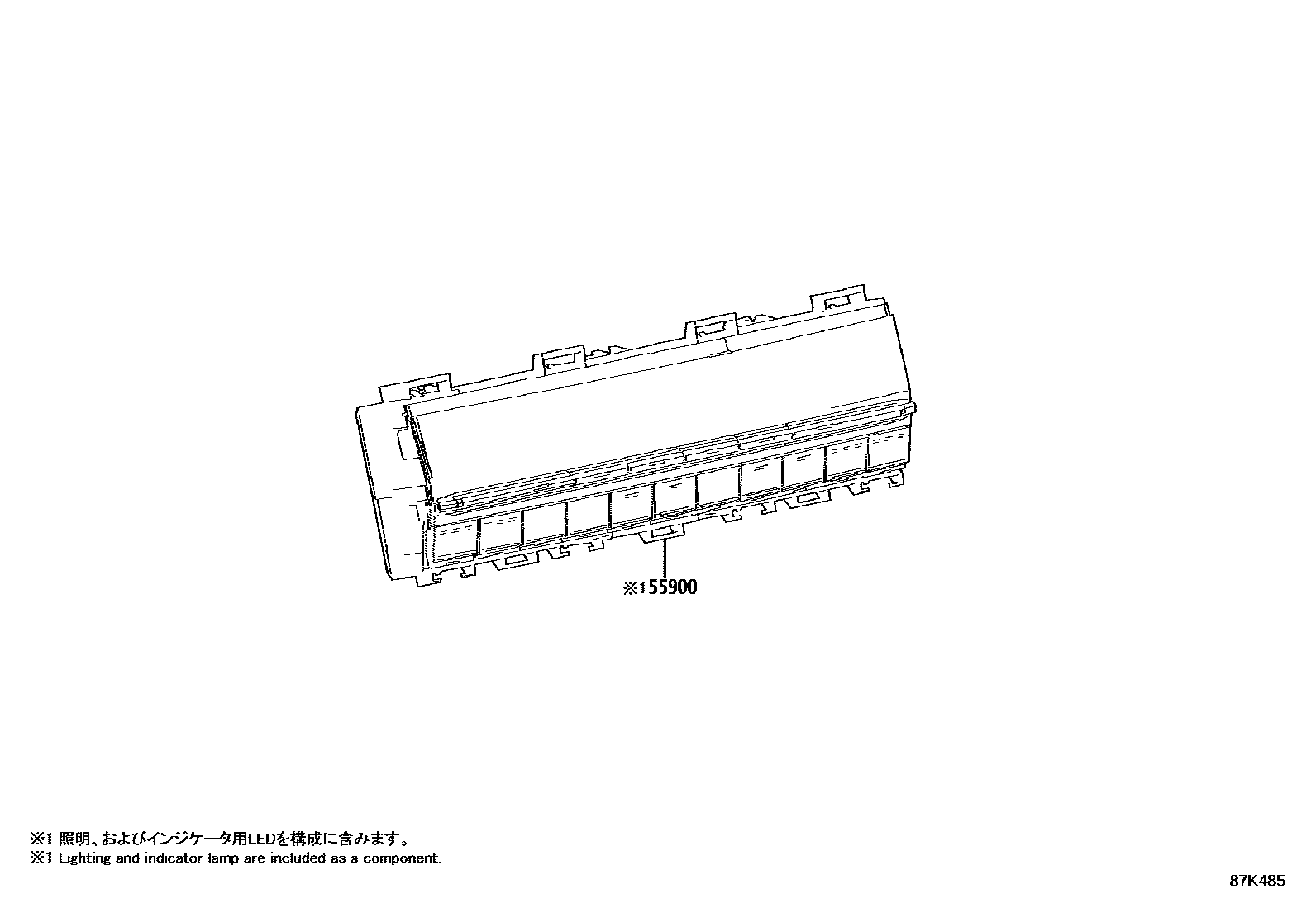

55900CONTROL ASSY, AIR CONDITIONER

main55900-08310iAXLH40..P,U202112-202303

main55900-08320iAXLH40..X202112-202303

main55900-08330iAXLH40..E202112-202303

main55900-08420iAXLH40..L202112-202303

main55900-08440iAXLH40..P,U202303

main55900-08450iAXLH40..X202303-202403

sub55900-08451

main55900-08451iAXLH4#..X202404

main55900-08460iAXLH40..E202303-202403

sub55900-08461

main55900-08461iAXLH40..E202404

main55900-08470iAXLH4#..L202303

1 parts on this diagram · 5 diagrams in section
