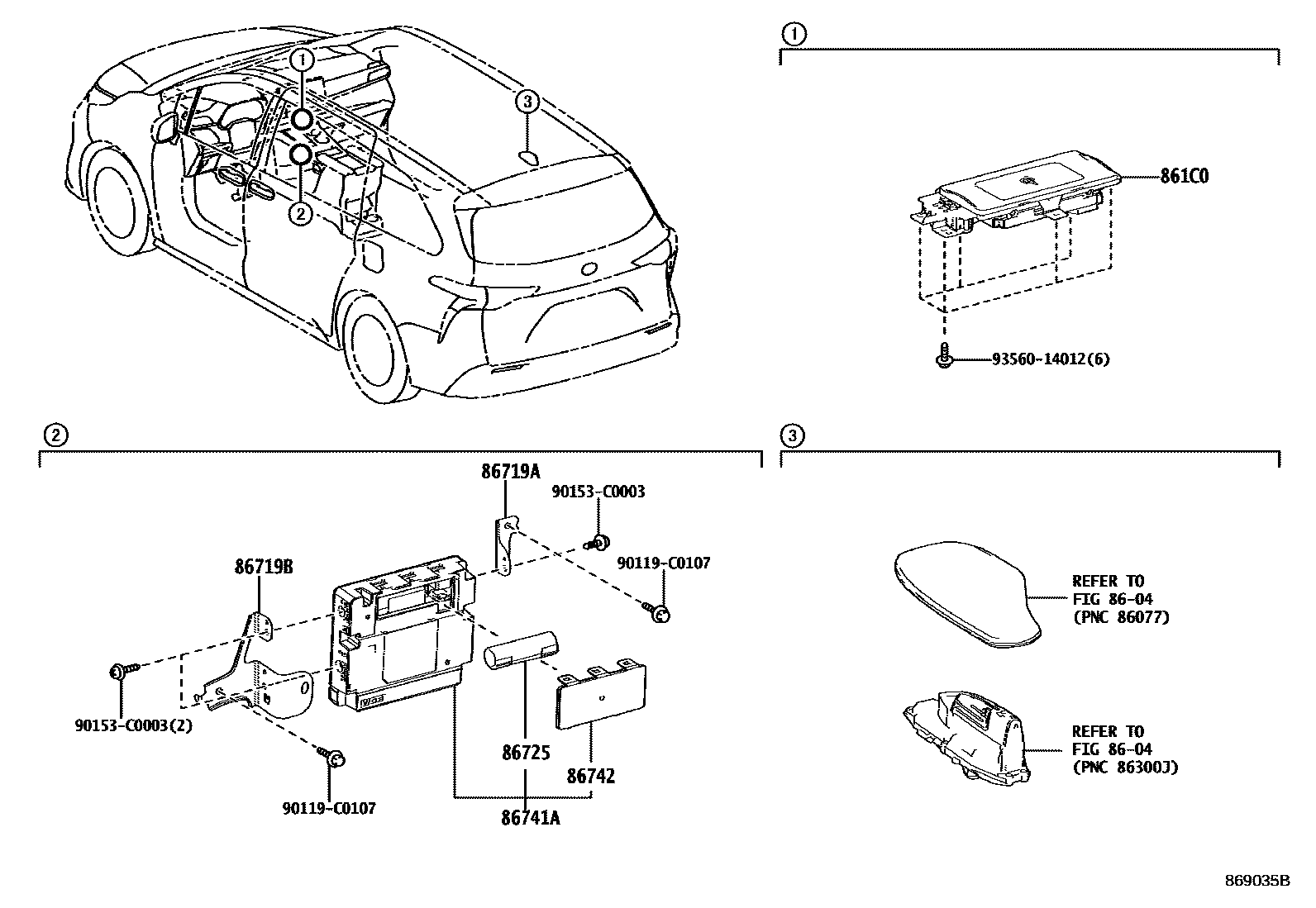

TELEPHONE & MAYDAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-YY050iAXLH40..P202112

WIRELESS CHARGER-WITH

86719ABRACKET, TELEPHONE NO.1

main86719-08030iAXLH4#202112

86719BBRACKET, TELEPHONE NO.2

main86719-08040iAXLH4#202112

86725BATTERY, MOBILEPHONE

main86725-F4010iAXLH4#202112

86741ATRANSCEIVER, TELEMATICS

main86741-06100iAXLH40202112-202303

main86741-08020iAXLH40202303-202404

main86741-0R070iAXLH4#202404

86742COVER, TRANSCEIVER

main86742-0A010iAXLH4#202404

main86742-F4010iAXLH40202112-202404

sub86742-0A010

90119C0107

main90119-C0107

90153C0003

main90153-C0003

9356014012

main93560-14012

10 parts on this diagram · 1 diagram in section
