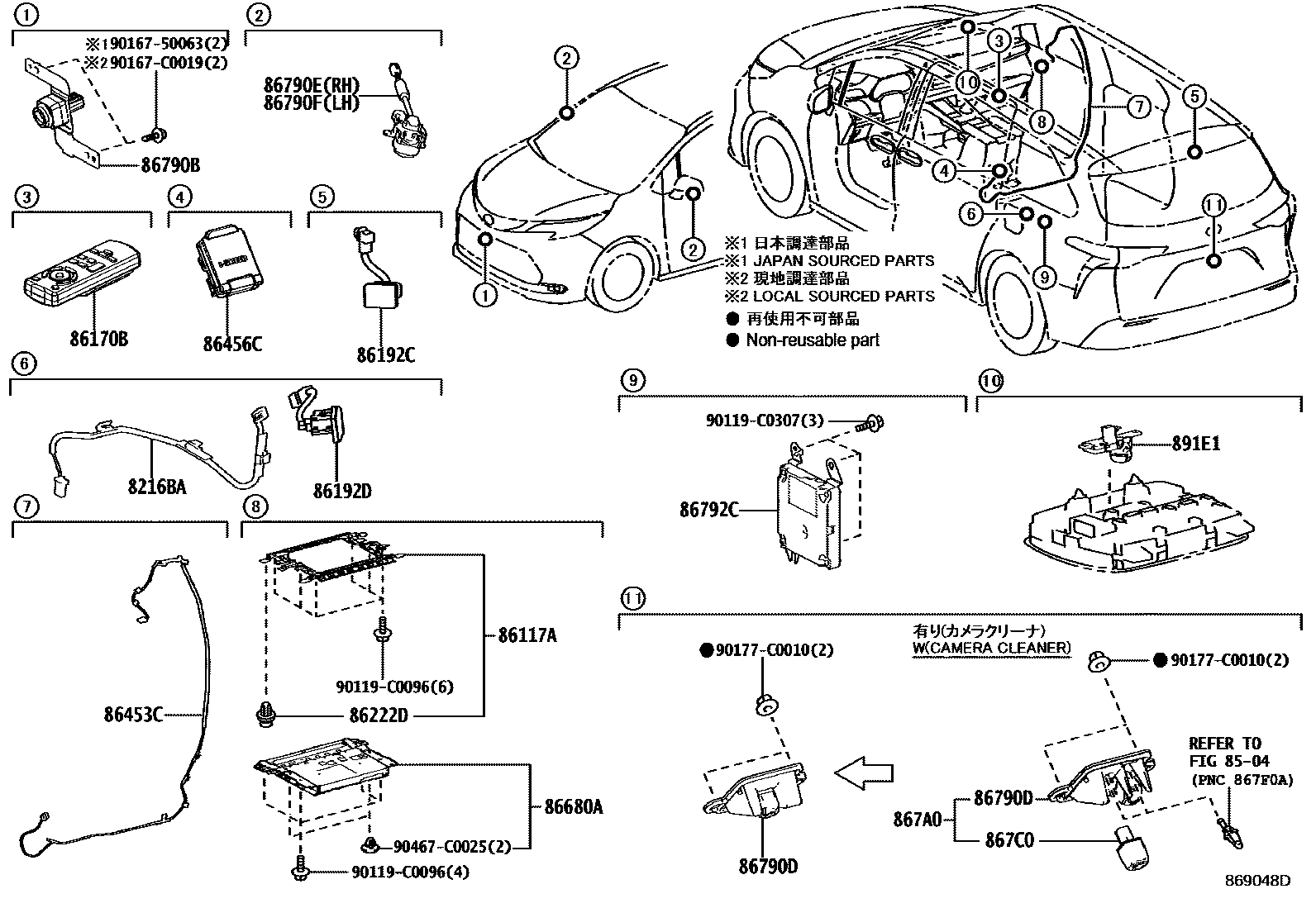

CAMERA & REAR MONITOR DISPLAY
8216BAWIRE, FLOOR NO.8
8504
86117ABRACKET, TELEVISION DISPLAY, A
86170BSWITCH & VOLUME ASSY, TELEVISION
86192CTERMINAL, HEADPHONE, RH
86192DTERMINAL, HEADPHONE, LH
86222DCLIP, TELEVISION BRACKET
BLACK
86453CWIRE, MULTI-MEDIA MODULE
86456CCOVER, MULTI-MEDIA MODULE
86680ADISPLAY ASSY, TELEVISION
PANASONIC,NEUTRAL WARM GRAY,TRIM0#,2#,4#
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITHOUT(ACCESSORY *PVM(WITH ILA & PPO))
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
main867A0-08030
867C0CAMERA ASSY, INNER MIRROR
891E1CAMERA, CABIN OBJECT RECOGNITION
90119C0096
main90119-C0096
90119C0307
main90119-C0307
9016750063
main90167-50063
90167C0019
main90167-C0019
90177C0010
main90177-C0010
90467C0025
main90467-C0025
24 parts on this diagram · 1 diagram in section
