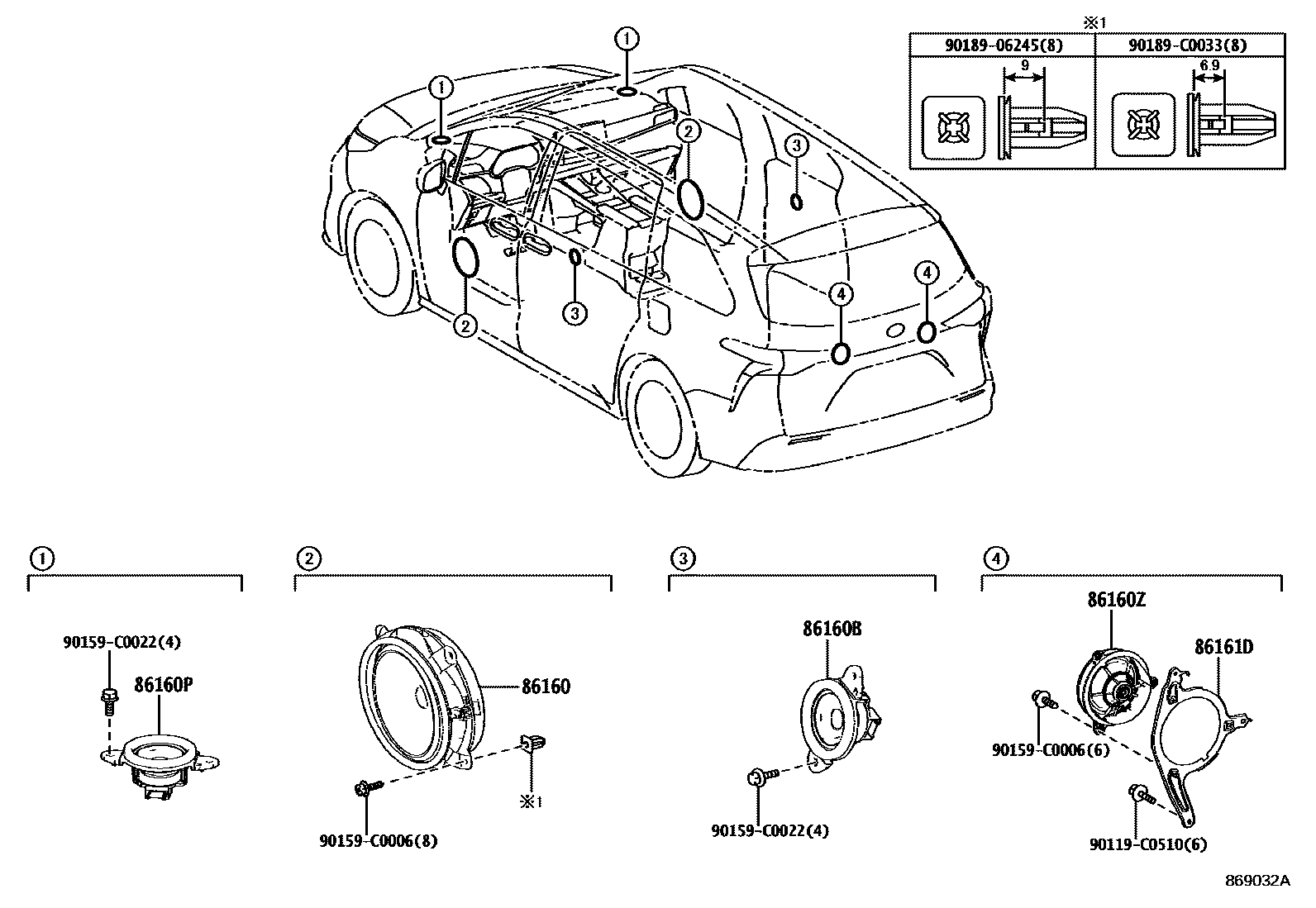

SPEAKER

0001 1 0002 1JBL

86160SPEAKER ASSY, FRONT NO.1

main86160-06880iAXLH40..P202112

main86160-06A20iAXLH4#..E,L,U,X202112-202406

main86160-06B10iAXLH4#..E,L,U,X202407

86160BSPEAKER ASSY, REAR

main86160-06690iAXLH4#..E,L,U,X202112

main86160-06A50iAXLH40..P202112

86160PSPEAKER ASSY, FRONT NO.2

main86160-06690iAXLH4#..L,U,X202112

main86160-06A50iAXLH40..P202112

86160ZSPEAKER ASSY, REAR NO.3

main86150-08060iAXLH40..P202112

main86160-02C10iAXLH4#..E,L,U,X202112-202409

main86160-02C11iAXLH4#..E,L,U,X202410

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-08070iAXLH4#..E,L,U,X202112

LH

main86161-08120iAXLH4#..E,L,U,X202112

RH

90119C0510

main90119-C0510

90159C0006

main90159-C0006

90159C0022

main90159-C0022

9018906245

main90189-06245

90189C0033

main90189-C0033

10 parts on this diagram · 2 diagrams in section
