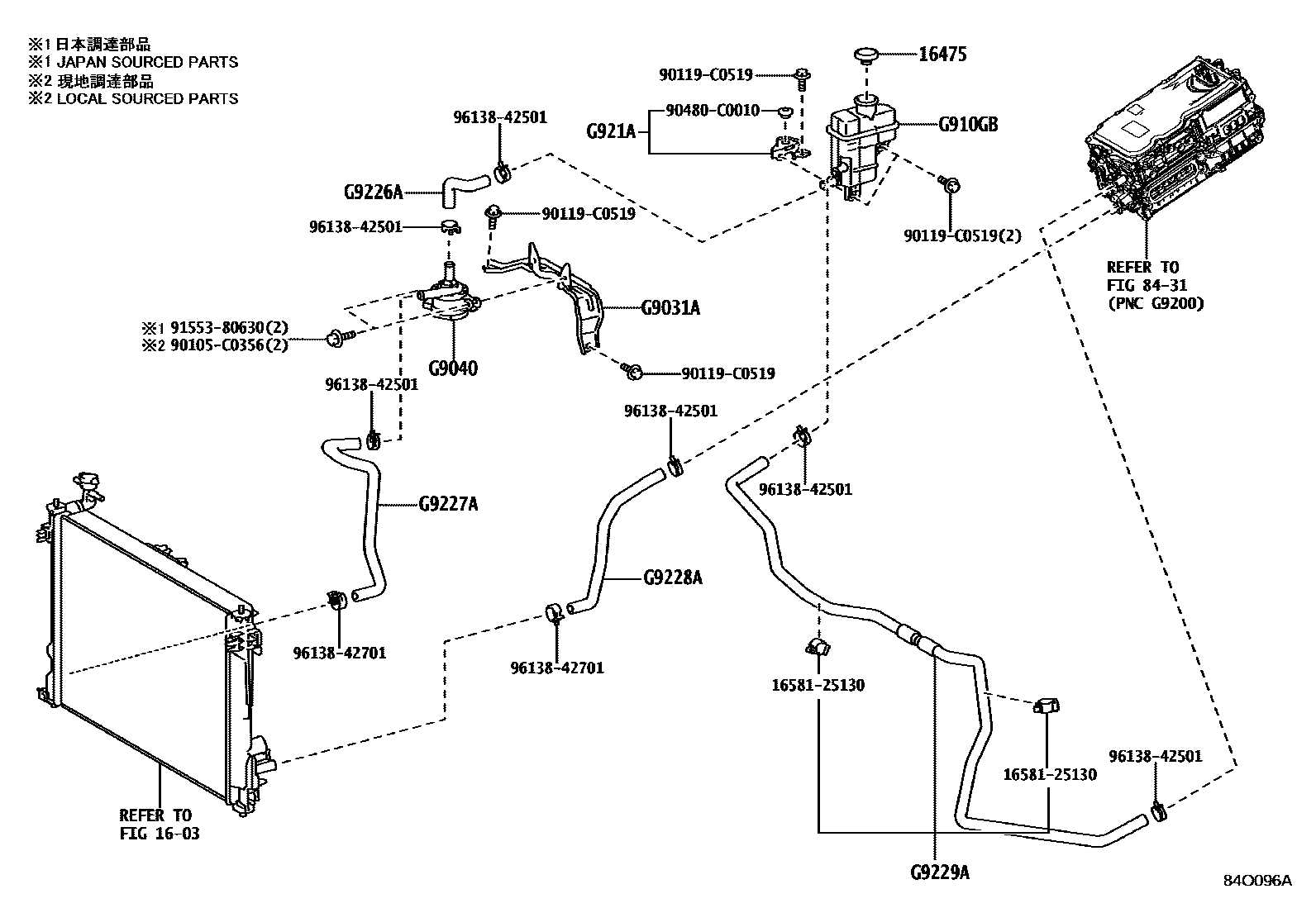

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-0T081iA25DFXS..AXLH4#202112

(L)

main16475-28140iA25DFXS..AXLH4#202112

(J)

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914108020iAXLH4#202112

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXLH40202112-202403

(L)

mainG90400E070iAXLH4#202404

(L)

mainG904048050iAXLH40202112-202404

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R031iAXLH4#202112

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R030iAXLH4#202112

G9226AHOSE, INVERTER COOLING, NO.2

mainG922608020iAXLH4#202112

G9227AHOSE, INVERTER COOLING, NO.3

mainG922708010iAXLH4#202112

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E020iAXLH4#202112

G9229AHOSE, INVERTER COOLING, NO.5

mainG922908020iAXLH4#202112

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90480C0010

main90480-C0010

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701

18 parts on this diagram · 1 diagram in section
