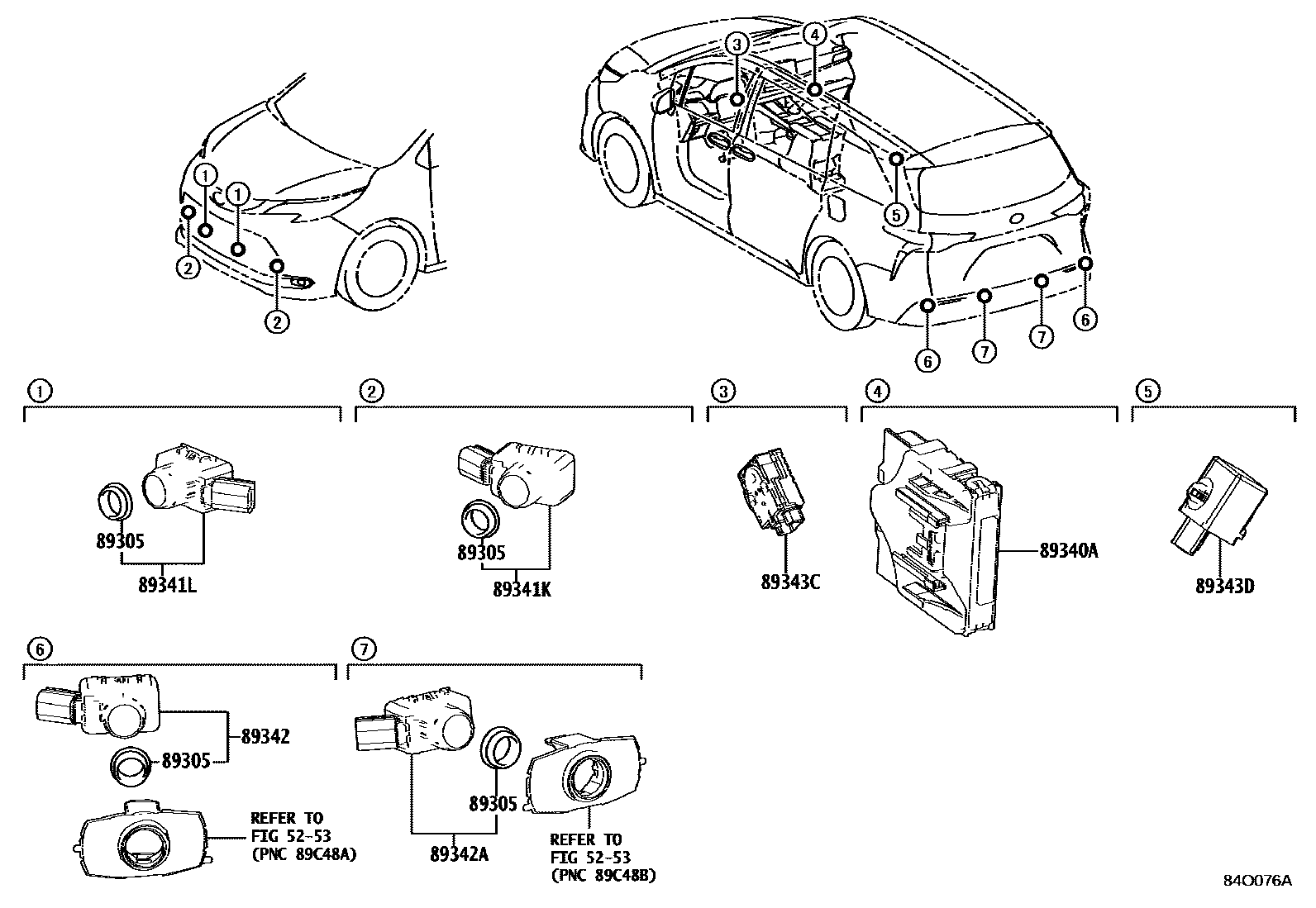

CLEARANCE & BACK SONAR

5253

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iAXLH4#202112

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-08050iAXLH40202112-202303

*614

main89340-08080iAXLH40202303-202404

*614

main89340-08090iAXLH4#202404

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0R080-B6iAXLH40..L,P,U202112-202206

DK.GRAY,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R080-C1iAXLH40202112-202206

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R100-B5iAXLH4#..L,P,U202207

DK.GRAY,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

main89341-0R100-C0iAXLH4#202207

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0R080-C1iAXLH40202112-202206

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R100-C0iAXLH4#202207

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R080-C0iAXLH40..L,P,U202112-202206

BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R080-C1iAXLH40202112-202206

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R100-C0iAXLH4#202207

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

main89341-0R100-C1iAXLH4#..L,P,U202207

BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0R080-C0iAXLH40..L,P,U202112-202206

BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R080-C1iAXLH40202112-202206

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

sub89341-0R100

main89341-0R100-C0iAXLH4#202207

DUMMY-MAT BLACK,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

main89341-0R100-C1iAXLH4#..L,P,U202207

BLACK MC.,089 ,1K0 ,209 ,4X1 ,6X5 ,8X8

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iAXLH4#202112

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040iAXLH4#202112

9 parts on this diagram · 1 diagram in section
