WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 1/2 0004 1ENGINE 2/2 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH VOLTAGE CABLE 0009 1HIGH VOLTAGE CABLE 0010 1SEAT 0011 1CLAMP & BRACKET 1/2 0012 1CLAMP & BRACKET 2/2 0013 1CABLE BOND 0014 1CONNECTOR 1/2 0015 1CONNECTOR 2/2

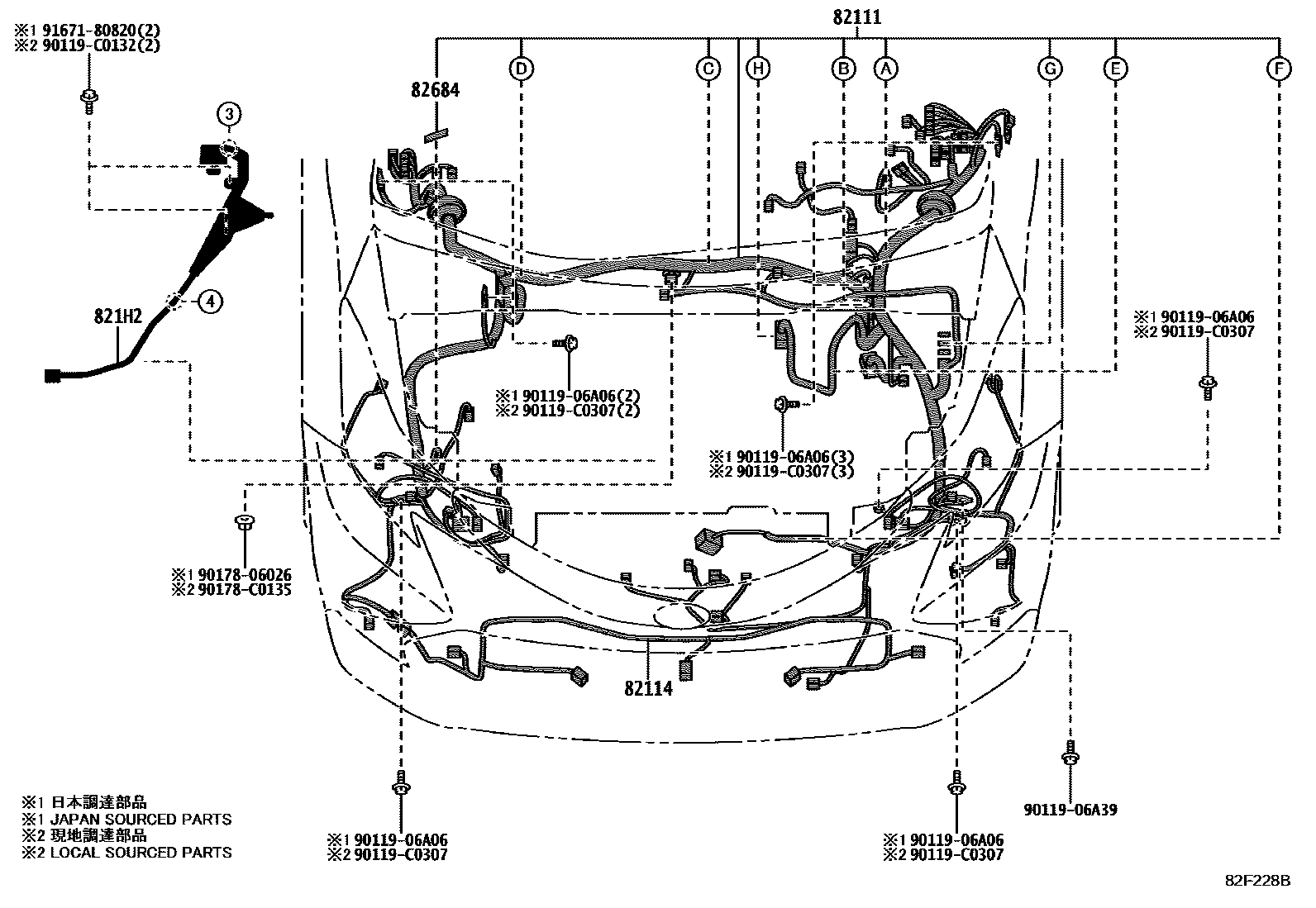

82111WIRE, ENGINE ROOM MAIN

main82111-08E20iAXLH40..P202404-202509

main82111-08J90iAXLH45..X202404-202509

main82111-08K90iAXLH40..P202303-202404

main82111-08L00iAXLH40..E202303-202404

main82111-08L10iAXLH40..L,U202303-202404

main82111-08M10iAXLH45..L202404-202509

main82111-08P40iAXLH40..E202404-202509

main82111-08Q90iAXLH40..L202404-202509

main82111-08R00iAXLH40..U202404-202509

main82111-08U30iAXLH40..P202112-202211

main82111-08U31iAXLH40..P202211-202303

main82111-08U40iAXLH40..X202112-202211

BLIND SPOT MONITOR-WITH

main82111-08U41iAXLH40..X202211-202303

BLIND SPOT MONITOR-WITH

main82111-08U50iAXLH40..L,U202112-202211

main82111-08U51iAXLH40..L,U202211-202303

main82111-08L30supersedes 82111-08U61iAXLH40..X202303-202404

SIDE LIFT UP SEAT

main82111-08P50supersedes 82111-08U61iAXLH40..X202404-202509

SIDE LIFT UP SEAT

main82111-08U70supersedes 82111-08U61iAXLH40..X202112-202211

SIDE LIFT UP SEAT&BLIND SPOT MONITOR-WITH

main82111-08U71supersedes 82111-08U61iAXLH40..X202211-202303

SIDE LIFT UP SEAT&BLIND SPOT MONITOR-WITH

82114WIRE, ENGINE ROOM, NO.4

main82114-08040iAXLH40..L,U202112-202303

main82114-08050iAXLH40..P;AXLH45..L202112-202509

821H2WIRE, HV AIR CONDITIONER

main821H2-0E040iAXLH4#202112

82684LABEL, CUT HIGH VOLTAGE ELECTRICITY

main82684-48010iAXLH4#202404

9011906A06

main90119-06A06

9011906A39

main90119-06A39

90119C0132

main90119-C0132

90119C0307

main90119-C0307

9017806026

main90178-06026

90178C0135

main90178-C0135

9167180820

main91671-80820
