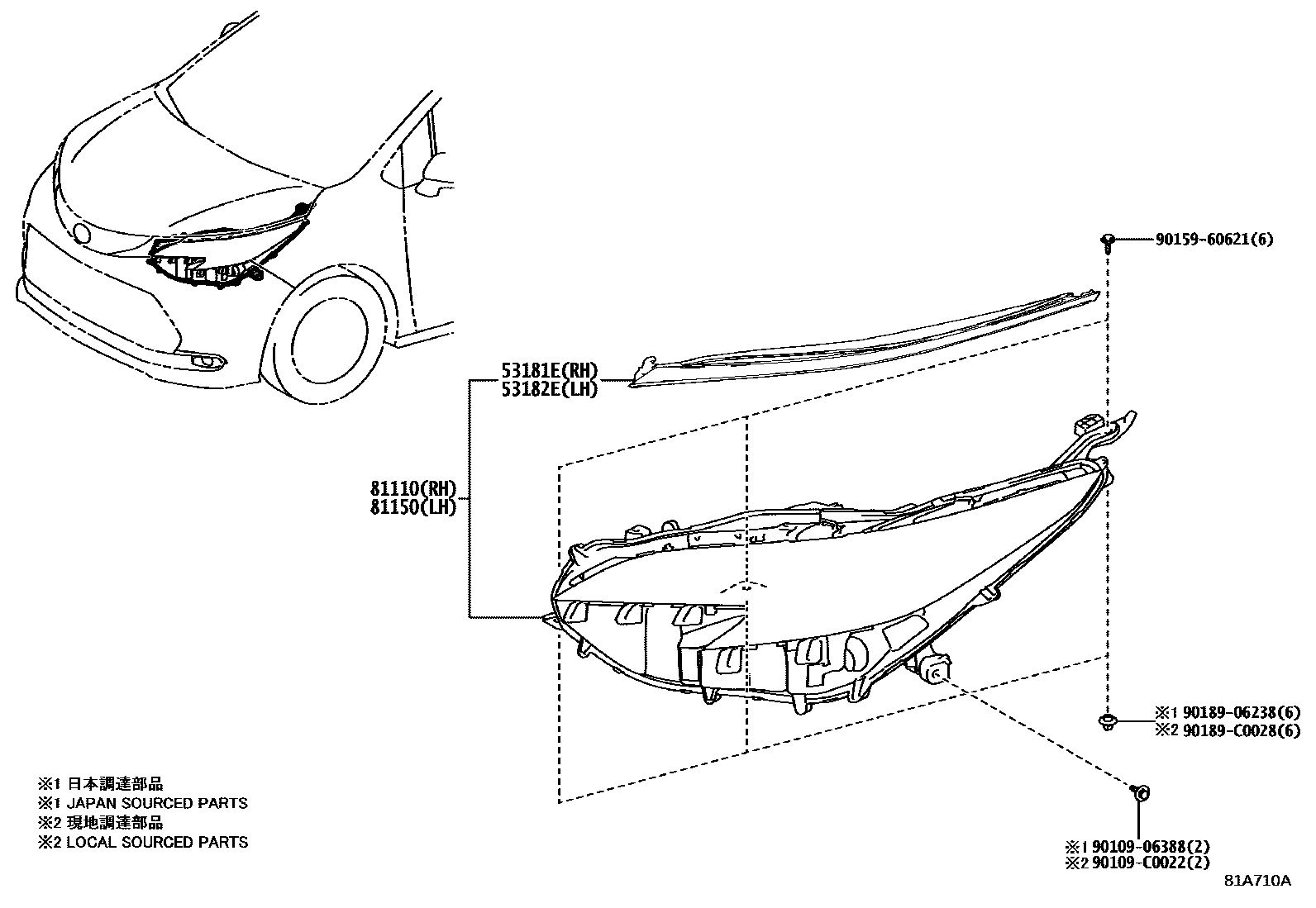

HEADLAMP

0001 1 0002 1

53181ECOVER, HEADLAMP, RH

main53107-08040iAXLH40..E202112

main53107-08050iAXLH4#..L,P,U,X202112

53182ECOVER, HEADLAMP, LH

main53108-08040iAXLH40..E202112

main53108-08050iAXLH40..P202112

81110HEADLAMP ASSY, RH

main81110-08200iAXLH40..E202112-202404

main81110-08201iAXLH40..E202404-202508

main81110-08210iAXLH40..L,U,X202112-202404

main81110-08211iAXLH4#..L,U,X202404-202508

main81110-08220iAXLH40..P202112-202404

main81110-08221iAXLH40..P202404-202508

81150HEADLAMP ASSY, LH

main81150-08200iAXLH40..E202112-202404

main81150-08201iAXLH40..E202404-202508

main81150-08210iAXLH40..L,U,X202112-202404

main81150-08211iAXLH4#..L,U,X202404-202508

main81150-08220iAXLH40..P202112-202404

main81150-08221iAXLH40..P202404-202508

9010906388

main90109-06388

90109C0022

main90109-C0022

9015960621

main90159-60621

9018906238

main90189-06238

90189C0028

main90189-C0028

9 parts on this diagram · 2 diagrams in section
