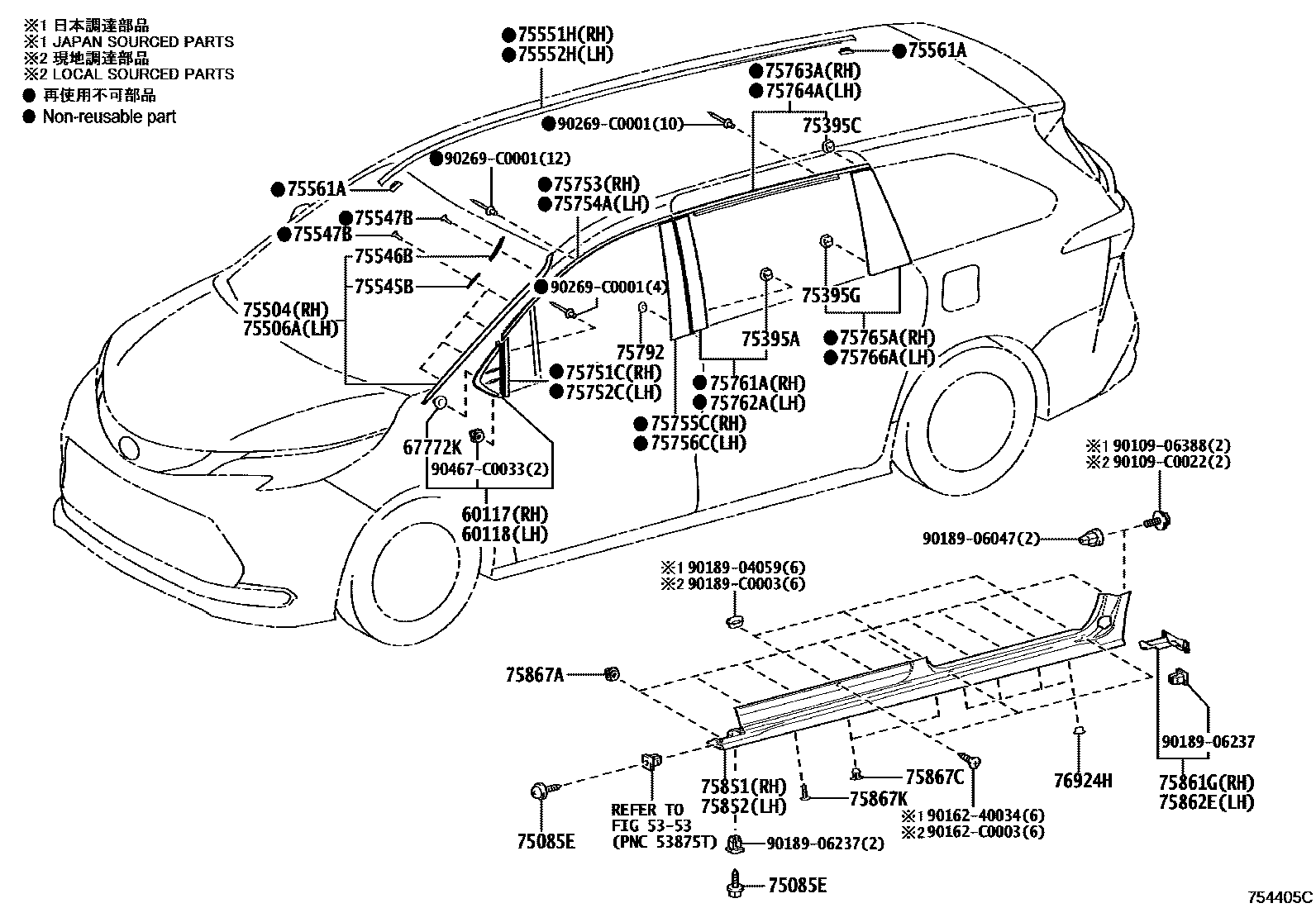

MOULDING
5353
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
67772KCAP, DOOR TRIM RETAINER
75085ESCREW, NO.1
75395ACLIP, OUTSIDE MOULDING, NO.1
75395CCLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75504MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
(J)
(L)
75551HMOULDING, ROOF DRIP SIDE, RH
75552HMOULDING, ROOF DRIP SIDE, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75851MOULDING, ROCKER PANEL, RH
PAINT REQ.
PAINT REQ.
75852MOULDING, ROCKER PANEL, LH
PAINT REQ.
PAINT REQ.
75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH
75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
(J)
(L)
75867KCLIP, ROCKER PANEL MOULDING
76924HRETAINER, SIDE MUDGUARD, NO.2
9010906388
main90109-06388
90109C0022
main90109-C0022
9016240034
main90162-40034
90162C0003
main90162-C0003
9018904059
main90189-04059
9018906047
main90189-06047
9018906237
main90189-06237
90189C0003
main90189-C0003
90269C0001
main90269-C0001
90467C0033
main90467-C0033
47 parts on this diagram · 3 diagrams in section
