REAR SEAT & SEAT TRACK

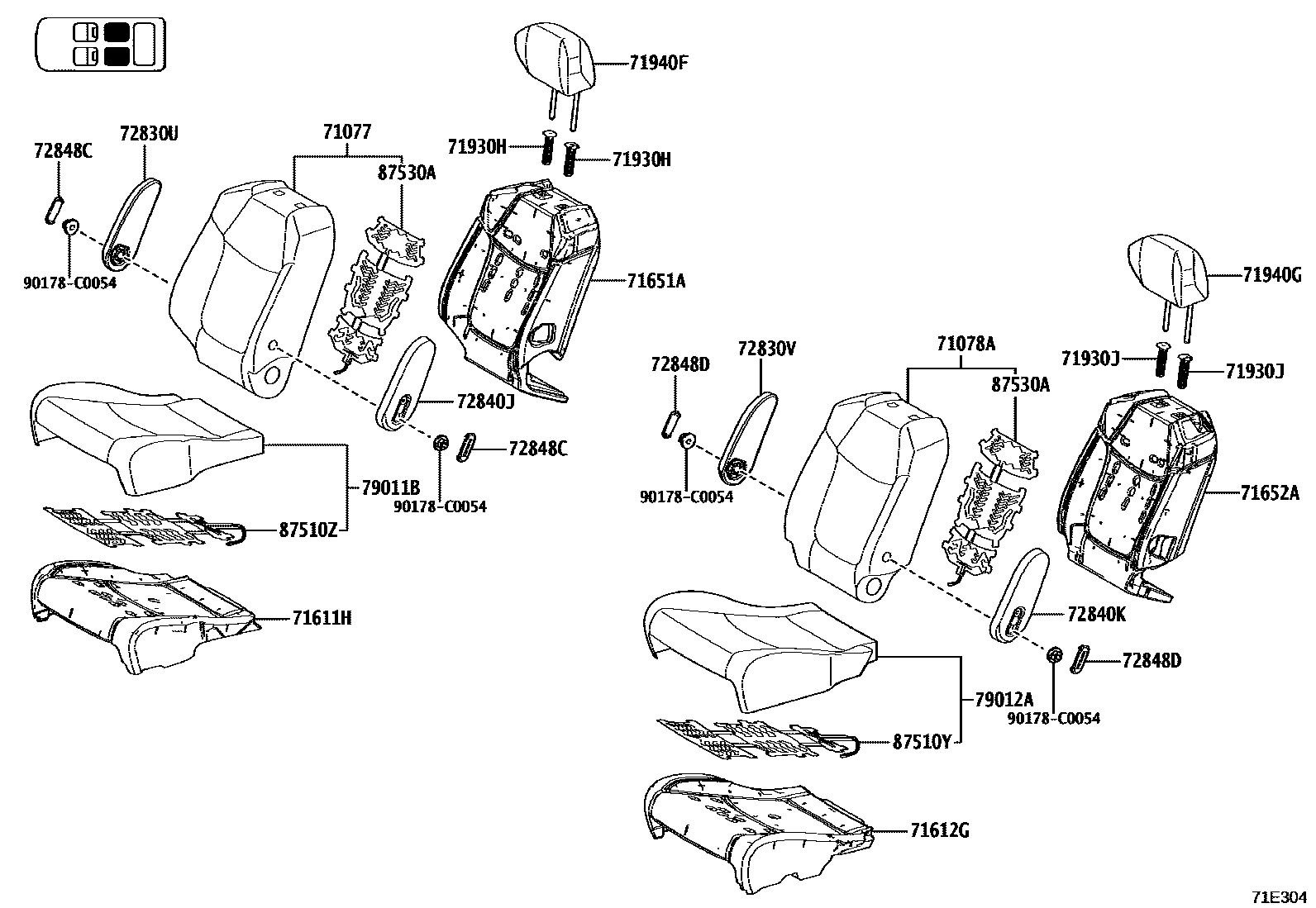

Parts diagram
71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH
main71077-08230-B0i202112-202509
LT GREY,TRIM1#
main71077-08240-B6i202112-202303
GRAY,TRIM1#
main71077-08240-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71077-08241-B7i202303-202404
GRAY,TRIM1#
main71077-08241-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main71077-08242-B9i202404-202509
GRAY,TRIM1#
main71077-08242-C0i202404-202509
BLACK,TRIM2#
main71077-08250-C3i202112-202303
BLACK,TRIM2#
main71077-08250-E3i202112-202303
NEUTRAL BEIGE,TRIM4#
main71077-08250-E4i202112-202303
NOBLE BROWN,TRIM4#
main71077-08251-C4i202303-202404
BLACK,TRIM2#
main71077-08251-E5i202303-202404
NEUTRAL BEIGE,TRIM4#
main71077-08251-E6i202303-202404
NOBLE BROWN,TRIM4#
main71077-08252-A0i202404-202509
FROMAGE,TRIM0#
main71077-08252-C5i202404-202509
BLACK,TRIM2#
main71077-08252-E7i202404-202509
NOBLE BROWN,TRIM4#
71078ACOVER SUB-ASSY, REAR NO.1 SEATBACK, LH
main71078-08230-B0i202112-202509
LT GREY,TRIM1#
main71078-08240-B6i202112-202303
GRAY,TRIM1#
main71078-08240-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71078-08241-B7i202303-202404
GRAY,TRIM1#
main71078-08241-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main71078-08242-B9i202404-202509
GRAY,TRIM1#
main71078-08242-C0i202404-202509
BLACK,TRIM2#
main71078-08250-C3i202112-202303
BLACK,TRIM2#
main71078-08250-E3i202112-202303
NEUTRAL BEIGE,TRIM4#
main71078-08250-E4i202112-202303
NOBLE BROWN,TRIM4#
main71078-08251-C4i202303-202404
BLACK,TRIM2#
main71078-08251-E5i202303-202404
NEUTRAL BEIGE,TRIM4#
main71078-08251-E6i202303-202404
NOBLE BROWN,TRIM4#
main71078-08252-A0i202404-202509
FROMAGE,TRIM0#
main71078-08252-C5i202404-202509
BLACK,TRIM2#
main71078-08252-E7i202404-202509
NOBLE BROWN,TRIM4#
71611HPAD, REAR NO.1 SEAT CUSHION, RH
main71611-08040i202112
main71611-08050i202112
71612GPAD, REAR NO.1 SEAT CUSHION, LH
main71612-08050i202112
main71612-08060i202112
71651APAD, REAR NO.1 SEATBACK, RH
main71651-08090i202112
main71651-08100i202112
71652APAD, REAR NO.1 SEATBACK, LH
main71652-08090i202112
main71652-08100i202112
71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH
main71930-06070-A0i202404
W(LOCK),FROMAGE,TRIM0#
main71930-06070-B2i202112
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,40
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#
main71930-06070-C0i202303
W(LOCK),BLACK,TRIM2#,4#
main71930-06070-C0i202303-202404
W(LOCK),BLACK,TRIM2#,41
main71930-06070-C0i202404
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM41
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-A0i202404
W/O(LOCK),FROMAGE,TRIM0#
main71931-06060-B2i202112
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,40
main71931-06060-C0i202303-202404
W/O(LOCK),BLACK,TRIM2#,41
main71931-06060-C0i202303
W/O(LOCK),BLACK,TRIM2#,4#
main71931-06060-C0i202404
W/O(LOCK),BLACK,TRIM2#
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM41
71930JSUPPORT ASSY, NO.1 SEAT HEADREST, LH
main71930-06070-A0i202404
W(LOCK),FROMAGE,TRIM0#
main71930-06070-B2i202112
W(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,4#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#
main71930-06070-C0i202112-202303
W(LOCK),BLACK,TRIM1#,2#,40
main71930-06070-C0i202404
W(LOCK),BLACK,TRIM2#
main71930-06070-C0i202303-202404
W(LOCK),BLACK,TRIM2#,41
main71930-06070-C0i202303
W(LOCK),BLACK,TRIM2#,4#
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM41
main71930-06070-E0i202112-202404
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-06060-A0i202404
W/O(LOCK),FROMAGE,TRIM0#
main71931-06060-B2i202112
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,4#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#
main71931-06060-C0i202112-202303
W/O(LOCK),BLACK,TRIM1#,2#,40
main71931-06060-C0i202303
W/O(LOCK),BLACK,TRIM2#,4#
main71931-06060-C0i202404
W/O(LOCK),BLACK,TRIM2#
main71931-06060-C0i202303-202404
W/O(LOCK),BLACK,TRIM2#,41
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM41
main71931-06060-E0i202112-202404
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
71940FHEADREST ASSY, NO.1 SEAT, RH
main71940-08380-B0i202112
LT GREY,TRIM1#
main71940-08390-B3i202112-202303
GRAY,TRIM1#
main71940-08390-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71940-08391-B4i202303-202404
GRAY,TRIM1#
main71940-08391-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main71940-08392-B6i202404
GRAY,TRIM1#
main71940-08392-C0i202404
BLACK,TRIM2#
main71940-08410-C1i202112-202303
BLACK,TRIM2#
main71940-08410-E1i202112-202303
NOBLE BROWN,TRIM4#
main71940-08410-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main71940-08411-C2i202303-202404
BLACK,TRIM2#
main71940-08411-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main71940-08411-E4i202303-202404
NOBLE BROWN,TRIM4#
main71940-08412-A0i202404
FROMAGE,TRIM01
main71940-08412-A1i202404
FROMAGE/BEIGE,TRIM0#
main71940-08412-A1i202404
FROMAGE/BEIGE,TRIM01
main71940-08412-C3i202404
BLACK,TRIM2#
main71940-08412-C3i202404-202509
BLACK,TRIM20
main71940-08412-C4i202404-202509
BLACK/BEIGE,TRIM20
main71940-08412-E5i202404-202509
NOBLE BROWN,TRIM4#
71940GHEADREST ASSY, NO.1 SEAT, LH
main71940-08380-B0i202112
LT GREY,TRIM1#
main71940-08390-B3i202112-202303
GRAY,TRIM1#
main71940-08390-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main71940-08391-B4i202303-202404
GRAY,TRIM1#
main71940-08391-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main71940-08392-B6i202404
GRAY,TRIM1#
main71940-08392-C0i202404
BLACK,TRIM2#
main71940-08410-C1i202112-202303
BLACK,TRIM2#
main71940-08410-E1i202112-202303
NOBLE BROWN,TRIM4#
main71940-08410-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main71940-08411-C2i202303-202404
BLACK,TRIM2#
main71940-08411-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main71940-08411-E4i202303-202404
NOBLE BROWN,TRIM4#
main71940-08412-A0i202404
FROMAGE,TRIM01
main71940-08412-A1i202404
FROMAGE/BEIGE,TRIM01
main71940-08412-A1i202404
FROMAGE/BEIGE,TRIM0#
main71940-08412-C3i202404
BLACK,TRIM2#
main71940-08412-C3i202404-202509
BLACK,TRIM20
main71940-08412-C4i202404-202509
BLACK/BEIGE,TRIM20
main71940-08412-E5i202404-202509
NOBLE BROWN,TRIM4#
72830UARMREST ASSY, REAR SEAT, RH
main72830-08160-B0i202112
LT GREY,TRIM1#
main72830-08170-B3i202112-202303
GRAY,TRIM1#
main72830-08170-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main72830-08171-B4i202303-202404
GRAY,TRIM1#
main72830-08171-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main72830-08172-B6i202404
GRAY,TRIM1#
main72830-08172-C2i202404
BLACK,TRIM2#
main72830-08200-C0i202112-202303
BLACK,TRIM2#
main72830-08200-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main72830-08200-E1i202112-202303
NOBLE BROWN,TRIM4#
main72830-08201-C1i202303-202404
BLACK,TRIM2#
main72830-08201-E2i202303-202404
NEUTRAL BEIGE,TRIM4#
main72830-08201-E3i202303-202404
NOBLE BROWN,TRIM4#
main72830-08202-A0i202404
FROMAGE,TRIM0#
main72830-08202-C2i202404
BLACK,TRIM2#
main72830-08202-E4i202404
NOBLE BROWN,TRIM4#
72830VARMREST ASSY, REAR NO.1 SEAT, RH
main72830-08160-B0i202112
LT GREY,TRIM1#
main72830-08170-B3i202112-202303
GRAY,TRIM1#
main72830-08170-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main72830-08171-B4i202303-202404
GRAY,TRIM1#
main72830-08171-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main72830-08172-B6i202404
GRAY,TRIM1#
main72830-08172-C2i202404
BLACK,TRIM2#
main72830-08200-C0i202112-202303
BLACK,TRIM2#
main72830-08200-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main72830-08200-E1i202112-202303
NOBLE BROWN,TRIM4#
main72830-08201-C1i202303-202404
BLACK,TRIM2#
main72830-08201-E2i202303-202404
NEUTRAL BEIGE,TRIM4#
main72830-08201-E3i202303-202404
NOBLE BROWN,TRIM4#
main72830-08202-A0i202404
FROMAGE,TRIM0#
main72830-08202-C2i202404
BLACK,TRIM2#
main72830-08202-E4i202404
NOBLE BROWN,TRIM4#
72840JARMREST ASSY, REAR SEAT, LH
main72820-08300-B0i202112
LT GREY,TRIM1#
main72820-08310-B3i202112-202303
GRAY,TRIM1#
main72820-08310-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main72820-08311-B4i202303-202404
GRAY,TRIM1#
main72820-08311-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main72820-08312-B6i202404
GRAY,TRIM1#
main72820-08312-C2i202404
BLACK,TRIM2#
main72820-08340-C0i202112-202303
BLACK,TRIM2#
main72820-08340-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main72820-08340-E1i202112-202303
NOBLE BROWN,TRIM4#
main72820-08341-C1i202303-202404
BLACK,TRIM2#
main72820-08341-E2i202303-202404
NEUTRAL BEIGE,TRIM4#
main72820-08341-E3i202303-202404
NOBLE BROWN,TRIM4#
main72820-08342-A0i202404
FROMAGE,TRIM0#
main72820-08342-C2i202404
BLACK,TRIM2#
main72820-08342-E4i202404
NOBLE BROWN,TRIM4#
72840KARMREST ASSY, REAR NO.1 SEAT, LH
main72820-08300-B0i202112
LT GREY,TRIM1#
main72820-08310-B3i202112-202303
GRAY,TRIM1#
main72820-08310-E2i202112-202303
NEUTRAL BEIGE,TRIM4#
main72820-08311-B4i202303-202404
GRAY,TRIM1#
main72820-08311-E3i202303-202404
NEUTRAL BEIGE,TRIM4#
main72820-08312-B6i202404
GRAY,TRIM1#
main72820-08312-C2i202404
BLACK,TRIM2#
main72820-08340-C0i202112-202303
BLACK,TRIM2#
main72820-08340-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main72820-08340-E1i202112-202303
NOBLE BROWN,TRIM4#
main72820-08341-C1i202303-202404
BLACK,TRIM2#
main72820-08341-E2i202303-202404
NEUTRAL BEIGE,TRIM4#
main72820-08341-E3i202303-202404
NOBLE BROWN,TRIM4#
main72820-08342-A0i202404
FROMAGE,TRIM0#
main72820-08342-C2i202404
BLACK,TRIM2#
main72820-08342-E4i202404
NOBLE BROWN,TRIM4#
72848CCAP, NO.1 SEAT ARMREST, NO.1 RH
main72848-08050-A0i202404
FROMAGE,TRIM0#
main72848-08050-B0i202112
NEUTRAL WARM GRAY,TRIM1#
main72848-08050-C0i202112
BLACK,TRIM2#,4#
main72848-08050-C0i202112
BLACK,TRIM2#
main72848-08050-E0i202112-202404
NEUTRAL BEIGE,TRIM4#
72848DCAP, NO.1 SEAT ARMREST, NO.1 LH
main72848-08050-A0i202404
FROMAGE,TRIM0#
main72848-08050-B0i202112
NEUTRAL WARM GRAY,TRIM1#
main72848-08050-C0i202112
BLACK,TRIM2#,4#
main72848-08050-C0i202112
BLACK,TRIM2#
main72848-08050-E0i202112-202404
NEUTRAL BEIGE,TRIM4#
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79011-08380-B0i202112
LT GREY,TRIM1#
main79011-08390-B6i202112-202303
GRAY,TRIM1#
main79011-08390-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main79011-08391-B7i202303-202404
GRAY,TRIM1#
main79011-08391-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main79011-08392-B9i202404-202509
GRAY,TRIM1#
main79011-08392-C0i202404-202509
BLACK,TRIM2#
main79011-08400-C3i202112-202303
BLACK,TRIM2#
main79011-08400-E3i202112-202303
NEUTRAL BEIGE,TRIM4#
main79011-08400-E4i202112-202303
NOBLE BROWN,TRIM4#
main79011-08401-C4i202303-202404
BLACK,TRIM2#
main79011-08401-E5i202303-202404
NEUTRAL BEIGE,TRIM4#
main79011-08401-E6i202303-202404
NOBLE BROWN,TRIM4#
main79011-08402-A0i202404-202509
FROMAGE,TRIM0#
main79011-08402-C5i202404-202509
BLACK,TRIM2#
main79011-08402-E7i202404-202509
NOBLE BROWN,TRIM4#
79012ACOVER SUB-ASSY, NO.1 SEAT CUSHION, LH
main79012-08330-B0i202112
LT GREY,TRIM1#
main79012-08340-B6i202112-202303
GRAY,TRIM1#
main79012-08340-E0i202112-202303
NEUTRAL BEIGE,TRIM4#
main79012-08341-B7i202303-202404
GRAY,TRIM1#
main79012-08341-E1i202303-202404
NEUTRAL BEIGE,TRIM4#
main79012-08342-B9i202404-202509
GRAY,TRIM1#
main79012-08342-C0i202404-202509
BLACK,TRIM2#
main79012-08350-C3i202112-202303
BLACK,TRIM2#
main79012-08350-E3i202112-202303
NEUTRAL BEIGE,TRIM4#
main79012-08350-E4i202112-202303
NOBLE BROWN,TRIM4#
main79012-08351-C4i202303-202404
BLACK,TRIM2#
main79012-08351-E5i202303-202404
NEUTRAL BEIGE,TRIM4#
main79012-08351-E6i202303-202404
NOBLE BROWN,TRIM4#
main79012-08352-A0i202404-202509
FROMAGE,TRIM0#
main79012-08352-C5i202404-202509
BLACK,TRIM2#
main79012-08352-E7i202404-202509
NOBLE BROWN,TRIM4#
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
main87510-08090i202112
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-08090i202112
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-08070i202112
90178C0054
main90178-C0054

22 parts on this diagram · 24 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
