SLIDE ROLLER & RAIL
58743GPROTECTOR, SLIDE DOOR PANEL, RH
58744FPROTECTOR, SLIDE DOOR PANEL, LH
6755
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
68355BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
68356BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68765ABRACKET, SLIDE DOOR, CENTER NO.1 RH
68766ABRACKET, SLIDE DOOR, CENTER NO.1 LH
68775BRACKET, SLIDE DOOR, CENTER NO.2 RH
68776BRACKET, SLIDE DOOR, CENTER NO.2 LH
69415HSTOPPER, SLIDE DOOR DOWN FEMALE, RH
69415JSTOPPER, SLIDE DOOR DOWN FEMALE, LH
69416ASTOPPER, SLIDE DOOR DOWN MALE
RH
69416BSTOPPER, SLIDE DOOR DOWN MALE
LH
69418STOP, SLIDE DOOR OPEN
85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH
85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH
9010506349
main90105-06349
9010508520
main90105-08520
90105C0317
main90105-C0317
90105C0348
main90105-C0348
90105C0357
main90105-C0357
9011906255
main90119-06255
90119C0235
main90119-C0235
90119C0255
main90119-C0255
90119C0451
main90119-C0451
90119C0616
main90119-C0616
90119C0621
main90119-C0621
90119C0645
main90119-C0645
9014880049
main90148-80049
90178C0011
main90178-C0011

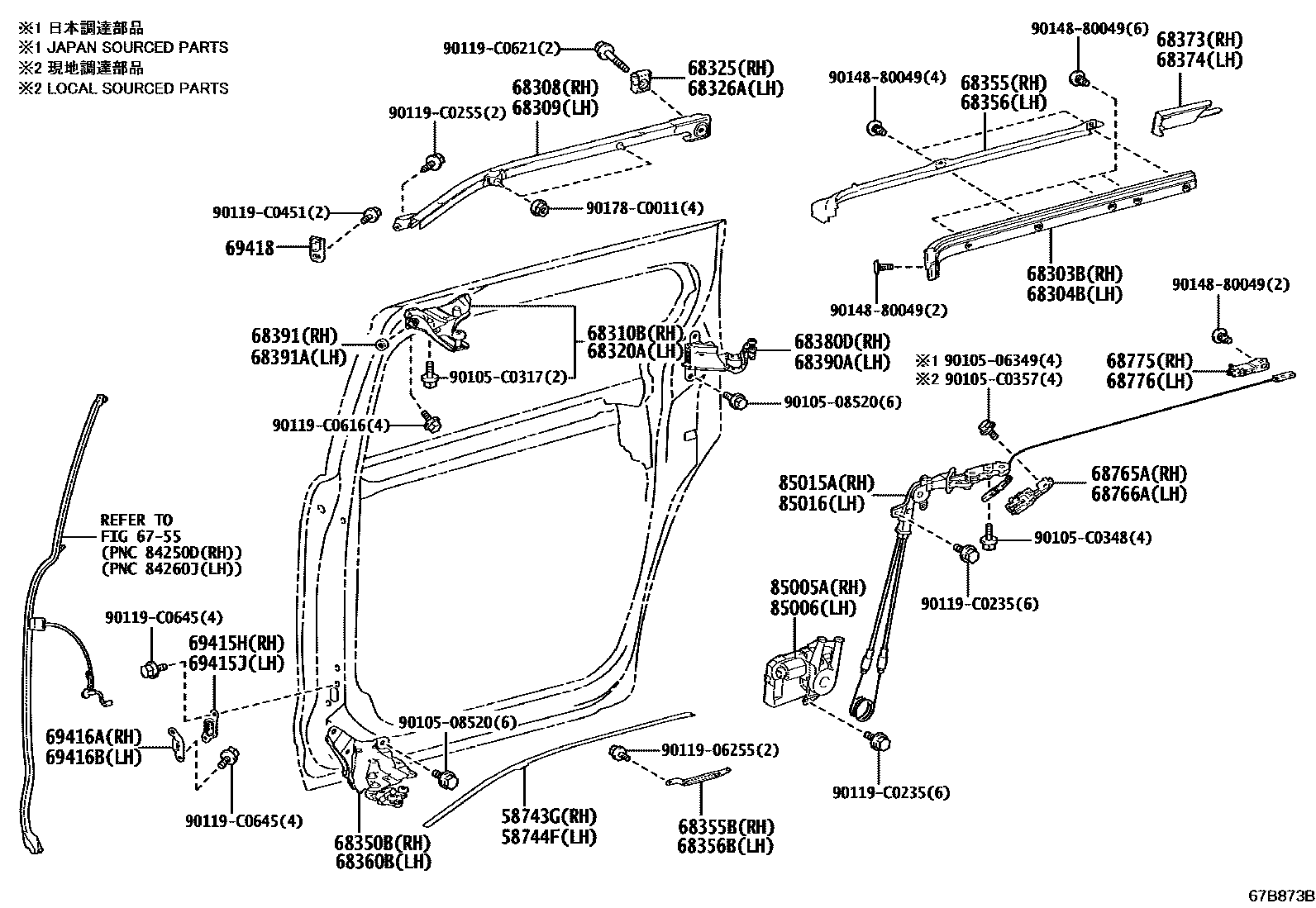

50 parts on this diagram · 1 diagram in section
