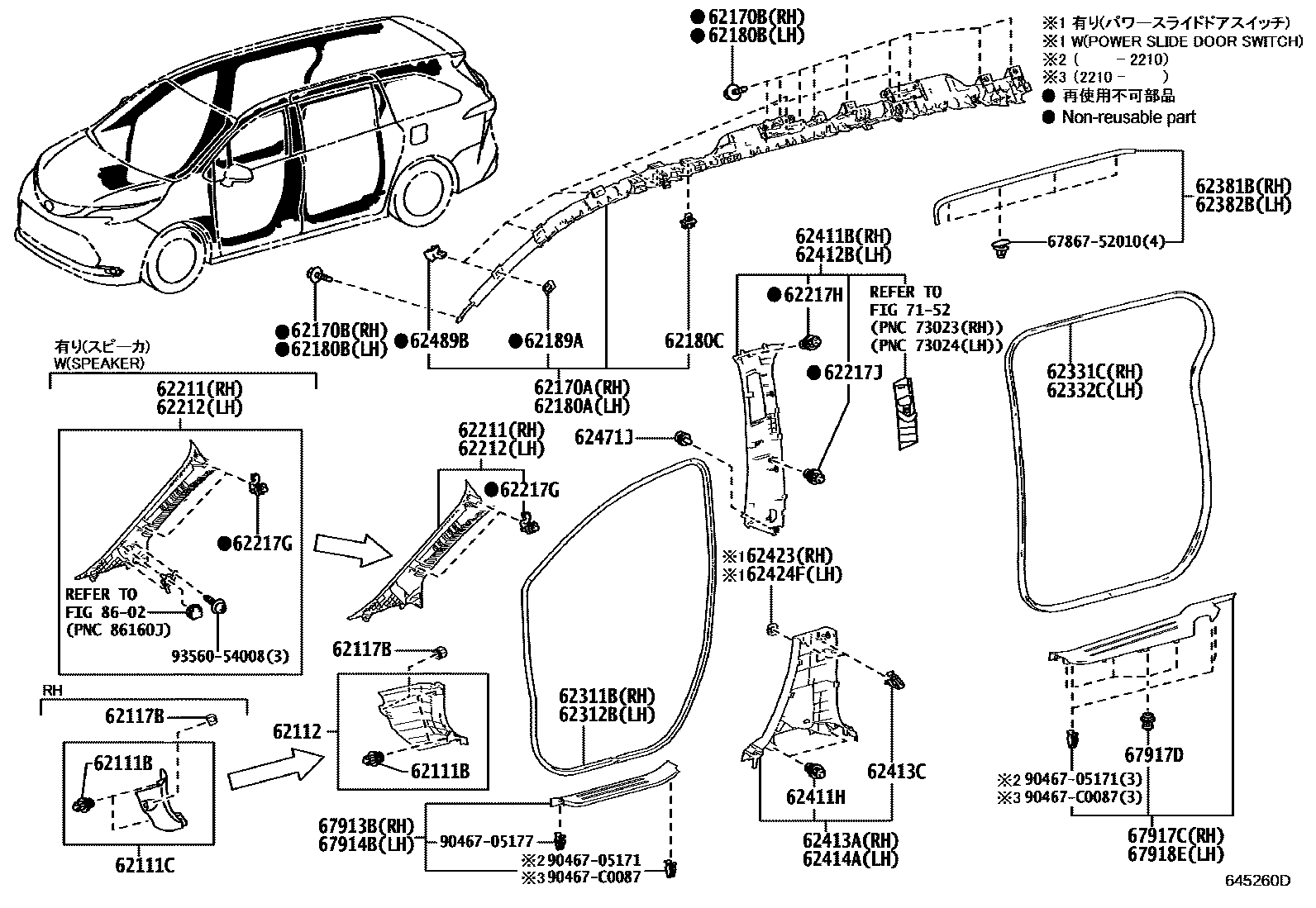

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
62112BOARD, COWL SIDE TRIM, LH
NEUTRAL WARM GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM10
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62180BBOLT, W/WASHER
62180CCLIP, CURTAIN SHIELD AIRBAG
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#
NEUTRAL WARM GRAY,TRIM11,2#,4#
NEUTRAL WARM GRAY,TRIM0#,2#,4#
NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM10
LT.GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM11,2#,4#
NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#
NEUTRAL WARM GRAY,TRIM0#,2#,4#
NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM0#,1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
FROMAGE,TRIM0#,1#,40
FROMAGE,TRIM11,4#
FROMAGE,TRIM0#,1#,41
FROMAGE,TRIM0#,1#,40,41
FROMAGE,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM2#,41
NEUTRAL WARM GRAY,TRIM2#,40,41
NEUTRAL WARM GRAY,TRIM2#,4#
62411HCLIP
62412BGARNISH, CENTER PILLAR, UPPER LH
FROMAGE,TRIM0#,1#,40
FROMAGE,TRIM0#,1#,41
FROMAGE,TRIM0#,1#,40,41
FROMAGE,TRIM11,4#
FROMAGE,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM2#,41
NEUTRAL WARM GRAY,TRIM2#
NEUTRAL WARM GRAY,TRIM2#,40,41
NEUTRAL WARM GRAY,TRIM2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM11,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM0#,2#,4#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#
62423COVER, CENTER PILLAR GARNISH, LOWER RH
BLACK,TRIM0#,1#,2#,4#
62424FCOVER, CENTER PILLAR GARNISH, LOWER LH
BLACK,TRIM0#,1#,2#,4#
62471JCLIP (FOR ROOF SIDE GARNISH)
62489BCLIP, ROOF SIDE INNER GARNISH
67913BPLATE, FRONT DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM0#,2#,4#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
67918EPLATE, REAR DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
7152
8602
6786752010CLIP, DOOR WEATHERSTRIP
main67867-52010
9046705171
main90467-05171
9046705177
main90467-05177
90467C0087
main90467-C0087
9356054008
main93560-54008
43 parts on this diagram · 3 diagrams in section
