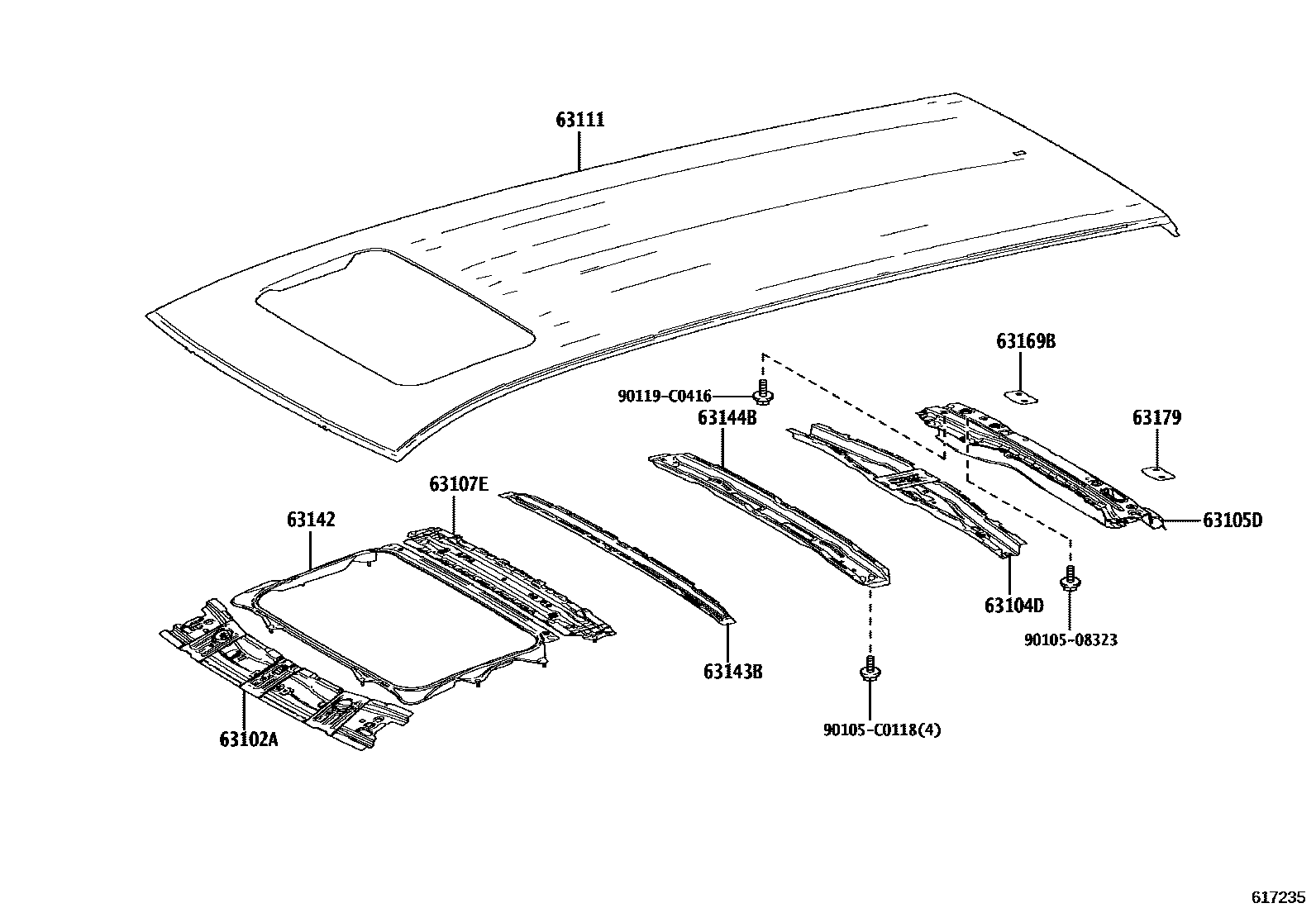

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL (SINGLE MOON ROOF)0002 1ROOF PANEL (TWIN MOON ROOF) 0003 1SLIDING ROOF 0004 1DRAIN HOSE 0005 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-08060iAXLH4#202112

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-08040iAXLH4#..E,L,X202112

main63104-08050iAXLH40..P,U202112

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-08040iAXLH4#202112

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-08050iAXLH4#202112

63111PANEL, ROOF

main63111-08300iAXLH40..P,U202112

main63111-08310iAXLH4#..E,L,X202112

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-08030iAXLH4#202112

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08050iAXLH4#..E,L,X202112

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-08040iAXLH4#..E,L,X202112

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E090iAXLH4#202112

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-0E090iAXLH4#202112

9010508323

main90105-08323

90105C0118

main90105-C0118

90119C0416

main90119-C0416

13 parts on this diagram · 5 diagrams in section
