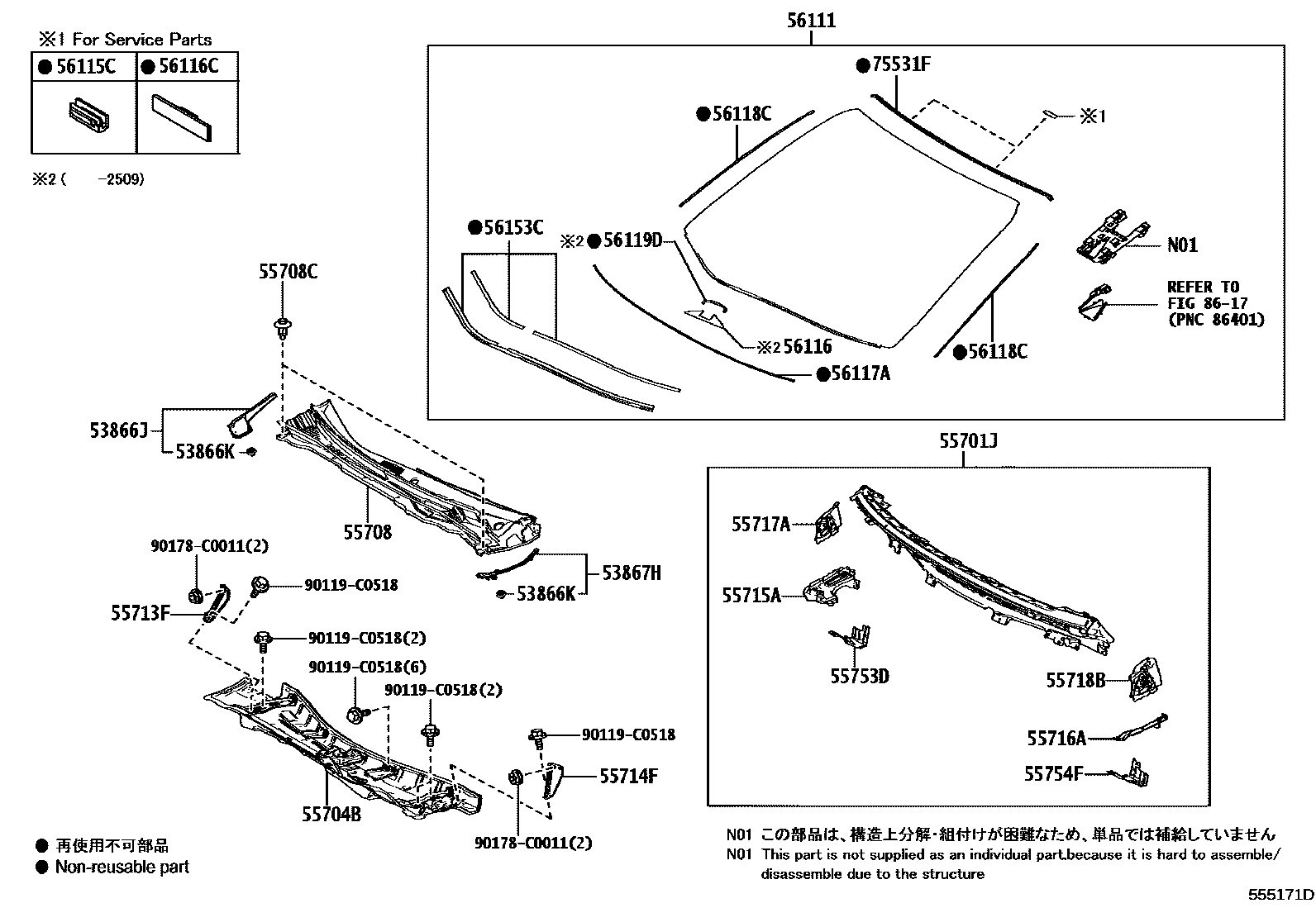

COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-08040iAXLH4#202112

53866KCLIP, FRONT FENDER TO COWL SIDE SEAL

main90467-C0063×2iAXLH4#202112

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-08040iAXLH4#202112

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-08040iAXLH4#202112

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-08050iAXLH4#202112-202509

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-08060iAXLH4#202112

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-C0010×2iAXLH4#202112

55713FREINFORCEMENT, COWL TOP SIDE, RH

main55713-08030iAXLH4#202112

55714FREINFORCEMENT, COWL TOP SIDE, LH

main55714-08030iAXLH4#202112

55715ABRACE, COWL TOP TO APRON, RH

main55715-08030iAXLH4#202112

55716ABRACE, COWL TOP TO APRON, LH

main55716-08030iAXLH4#202112

55717APANEL, COWL TOP SIDE, INNER RH

main55717-08080iAXLH4#202112

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-08070iAXLH4#202112

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-08020iAXLH4#202112

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-08020iAXLH4#202112

56111GLASS, WINDSHIELD

main56101-08430iAXLH4#..L,X202404-202509

main56101-08440iAXLH40..L,X202112-202404

main56101-08470iAXLH40..U202112-202509

main56101-08500iAXLH40..P202112-202509

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iAXLH4#202112

56116SPACER, WINDSHIELD GLASS

main56116-08020iAXLH4#202112-202509

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAXLH4#202112

56117ADAM, WINDOW GLASS ADHESIVE

main56117-08060iAXLH4#202112

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-08020×2iAXLH4#202112

56119DDAM, WINDOW GLASS ADHESIVE, NO.3

main56119-08020iAXLH4#202112-202509

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-08030iAXLH4#202112

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-08040iAXLH4#202112

8617

90119C0518

main90119-C0518

90178C0011

main90178-C0011

27 parts on this diagram · 1 diagram in section
