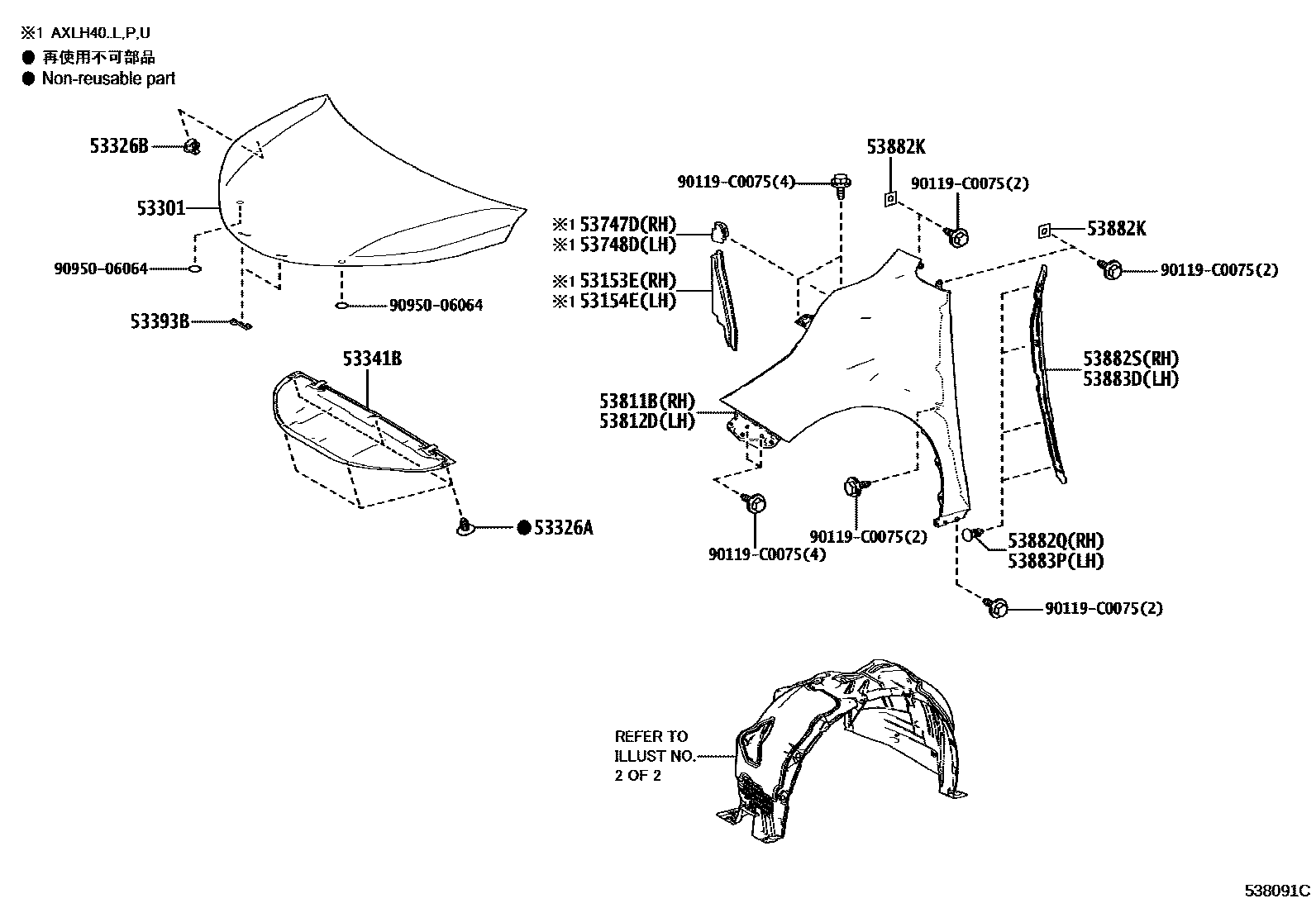

HOOD & FRONT FENDER

0001 1 0002 1

53153EGUIDE, FRONT SIDE AIR

main53153-08030iAXLH4#..L,P,U202112

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-08030iAXLH4#..L,P,U202112

53301HOOD SUB-ASSY

main53301-08080iAXLH4#202112-202509

53326ACLIP, HOOD MOULDING

main90467-C0006iAXLH4#202112

53326BCLIP, HOOD MOULDING

main53326-08030iAXLH4#202112

53341BINSULATOR, HOOD

main53341-08030iAXLH4#202112

53393BPROTECTOR, HOOD, FRONT

main53393-08020iAXLH4#202112

53747DEXTENSION, APRON FENDER SIDE, RH

main53747-08090iAXLH4#..L,P,U202112

53748DEXTENSION, APRON FENDER SIDE, LH

main53748-08060iAXLH4#..L,P,U202112

53811BPANEL, FRONT FENDER, RH

main53811-08070iAXLH4#202112

53812DPANEL, FRONT FENDER, LH

main53812-08060iAXLH4#202112

53882KSEAL, FRONT FENDER

main53882-0D030iAXLH4#202112

53882QCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-C0012-C1iAXLH4#202112

BLACK

53882SSEAL, FRONT FENDER, RH

main53882-08040iAXLH40202112-202212

sub53882-08041

main53882-08041iAXLH4#202301

53883DSEAL, FRONT FENDER, LH

main53883-08040iAXLH40202112-202212

sub53883-08041

main53883-08041iAXLH4#202301

53883PCLIP, NO.1(FOR FRONT FENDER SEAL)

main90467-C0012-C1iAXLH4#202112

BLACK

90119C0075

main90119-C0075

9095006064

main90950-06064¥110

18 parts on this diagram · 2 diagrams in section
