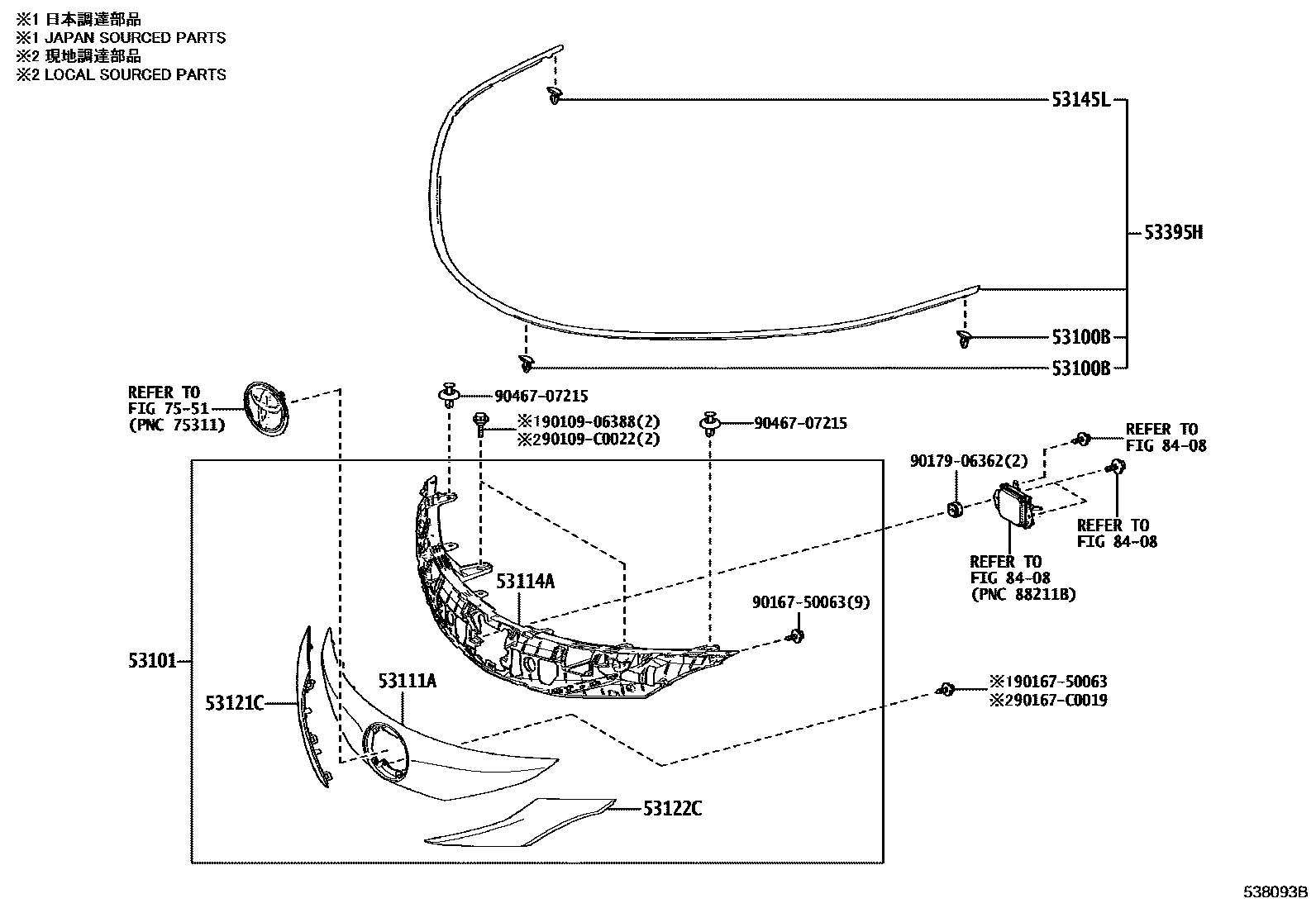

RADIATOR GRILLE

53100BCLIP, RADIATOR GRILLE

main53145-08020×2iAXLH4#202112

53101GRILLE SUB-ASSY, RADIATOR

main53101-08240iAXLH40..E202112

PLATED

main53101-08250iAXLH4#..L,P,U,X202112

PLATED

53111AGRILLE, RADIATOR, OUTSIDE

main53111-08120iAXLH40..E202112

main53111-08190iAXLH4#..L,P,U,X202112

53114AGRILLE, RADIATOR, INNER

main53114-08080iAXLH4#202112

53121CPLATE, RADIATOR GRILLE FINISH, RH

main53121-08040iAXLH40..E202112

main53121-08050iAXLH4#..L,P,U,X202112

53122CPLATE, RADIATOR GRILLE FINISH, LH

main53122-08070iAXLH40..E202112

main53122-08080iAXLH4#..L,P,U,X202112

53145LCLIP, RADIATOR GRILLE

main53145-60030×31iAXLH4#202112

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-08020iAXLH4#202112

7551

8408

9010906388

main90109-06388

90109C0022

main90109-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

9017906362

main90179-06362

9046707215

main90467-07215

16 parts on this diagram · 1 diagram in section
