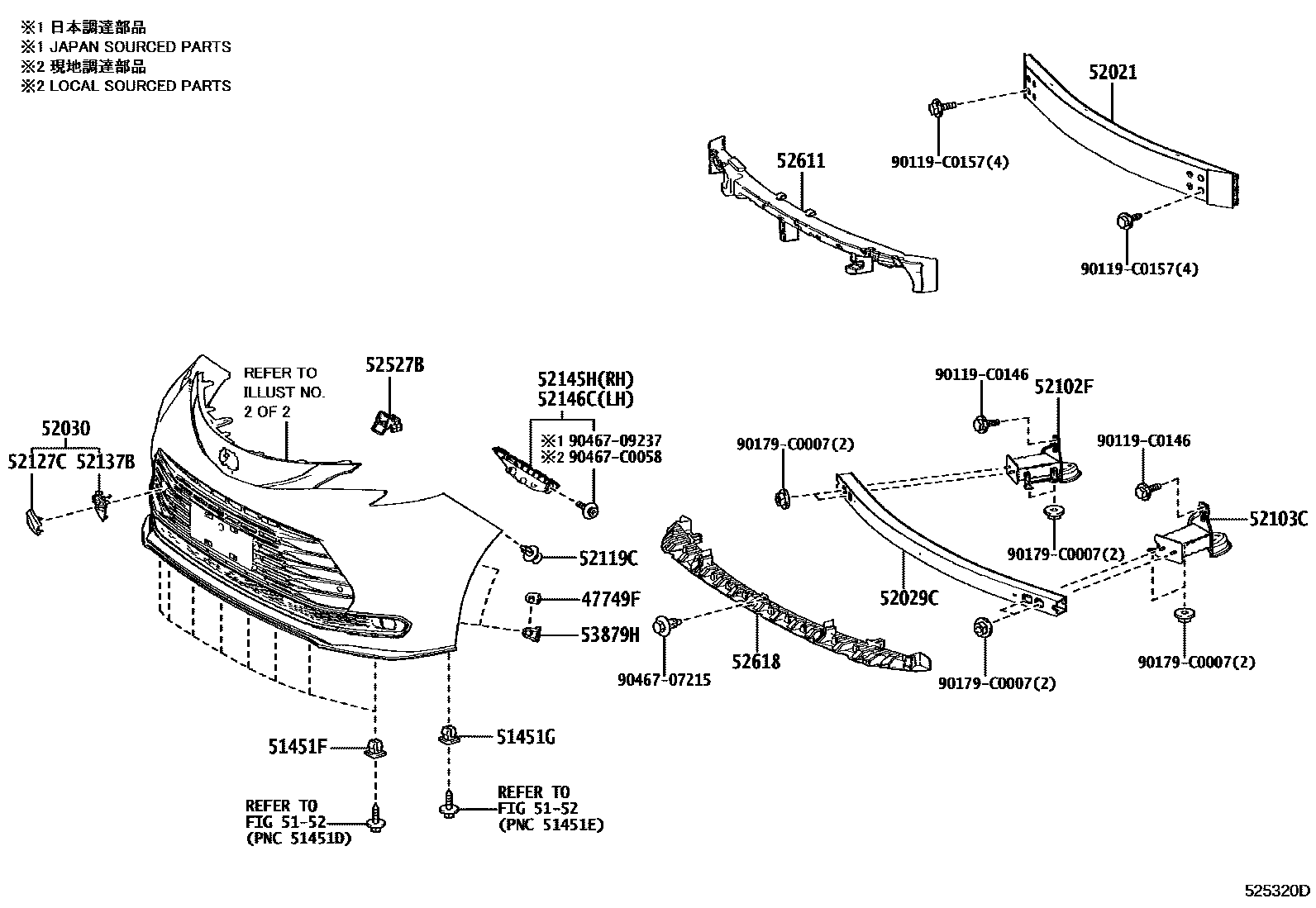

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
51451FGROMMET, NO.1
(J)
(L)
51451GGROMMET, NO.2
(J)
(L)
5152
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2
52030COVER ASSY, FRONT BUMPER HOLE, RH
NO PAINT REQ.
NO PAINT REQ.
52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH
52119CCLIP, FRONT BUMPER COVER
(J)
(L)
52137BPLATE, FRONT BUMPER BRACKET, NO.1
52145HSTAY, FRONT BUMPER SIDE, RH
52146CSTAY, FRONT BUMPER SIDE, LH
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
53879HRETAINER, FRONT FENDER LINER
90119C0146
main90119-C0146
90119C0157
main90119-C0157
90179C0007
main90179-C0007
9046707215
main90467-07215
9046709237
main90467-09237
90467C0058
main90467-C0058
24 parts on this diagram · 2 diagrams in section
