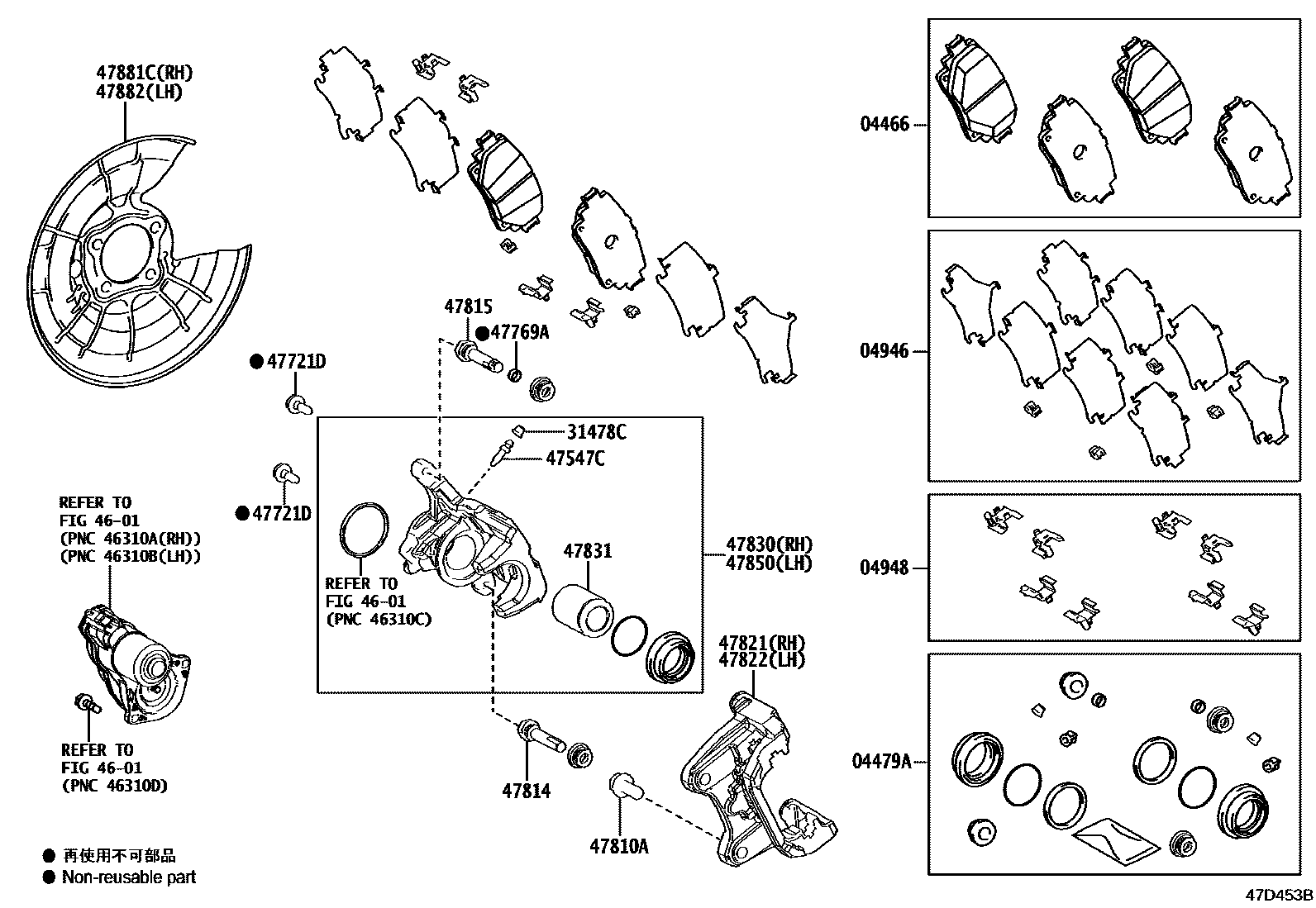

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E090iAXLH4#202112

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02490iAXLH4#202112

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02200iAXLH4#202112

04948FITTING KIT, DISC BRAKE, REAR

main04948-02170iAXLH4#202304

main04948-02171iAXLH40202112-202304

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010iAXLH4#202112

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXLH4#202112

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612iAXLH4#202112

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0P010iAXLH4#202112

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0397iAXLH4#202112

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180iAXLH4#202112

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180iAXLH4#202112

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-08030iAXLH4#202112

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-08030iAXLH4#202112

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-08030iAXLH4#202112

47831PISTON, REAR DISC BRAKE

main47831-0E120iAXLH40202112-202302

main47831-0E121iAXLH4#202302

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-08030iAXLH4#202112

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E030iAXLH4#202112

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E030iAXLH4#202112

19 parts on this diagram · 1 diagram in section
