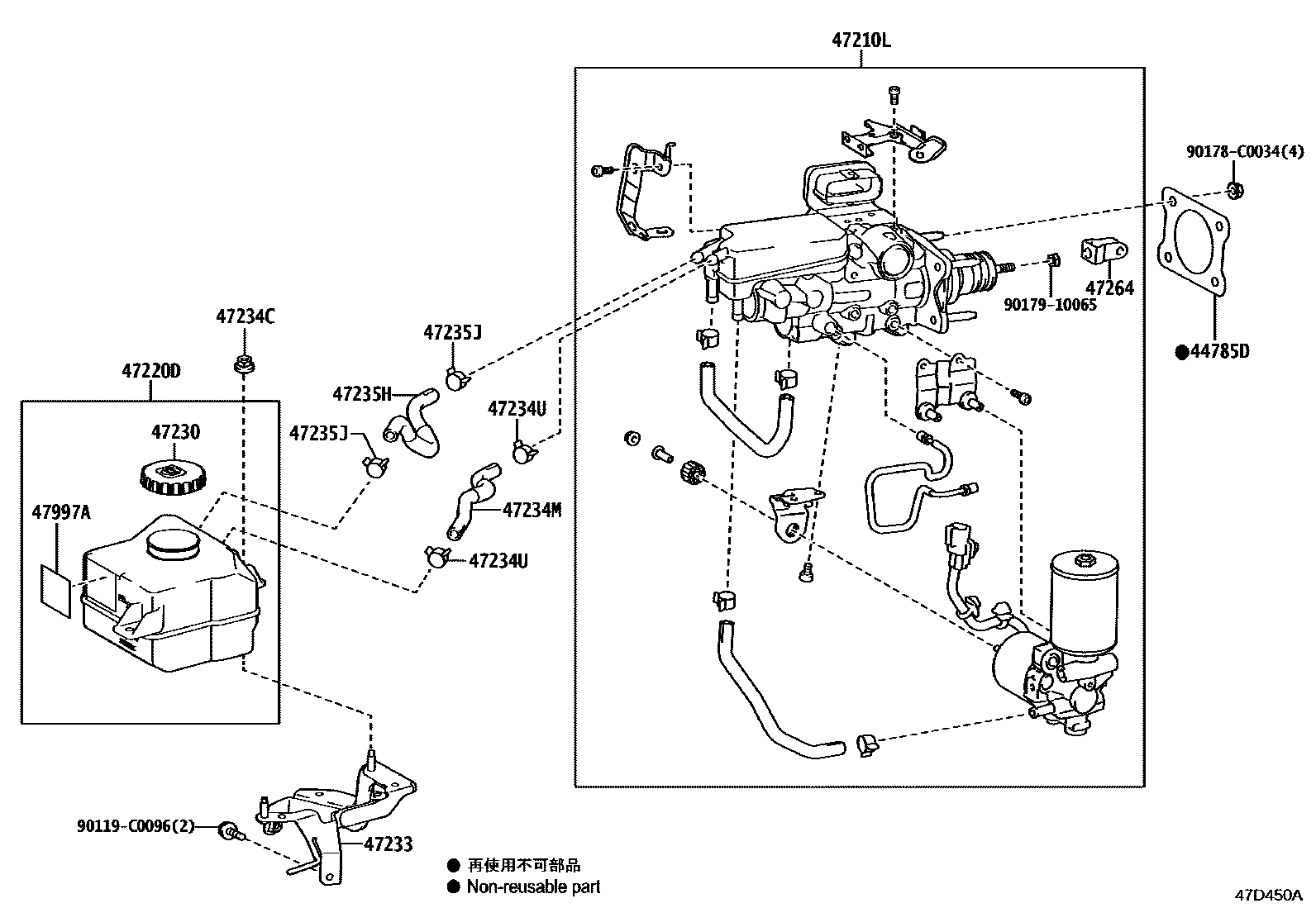

BRAKE MASTER CYLINDER

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02050iAXLH4#202112

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-08030iAXLH40202112-202404

*614

main47050-08031iAXLH4#202404

*614

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-08050iAXLH4#202112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R100iAXLH4#202210

(L)

main47230-47090iAXLH4#202112

(J)

47233BRACKET, RESERVOIR

main47233-08030iAXLH4#202112

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90178-C0076iAXLH4#202112

47234MHOSE, RESERVOIR, NO.1

main47234-08050iAXLH4#202112

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main90466-C0026iAXLH4#202112

47235HHOSE, RESERVOIR, NO.2

main47235-08030iAXLH4#202112

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main90466-C0026iAXLH4#202112

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXLH4#202112

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXLH4#202112

90119C0096

main90119-C0096

90178C0034

main90178-C0034

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
