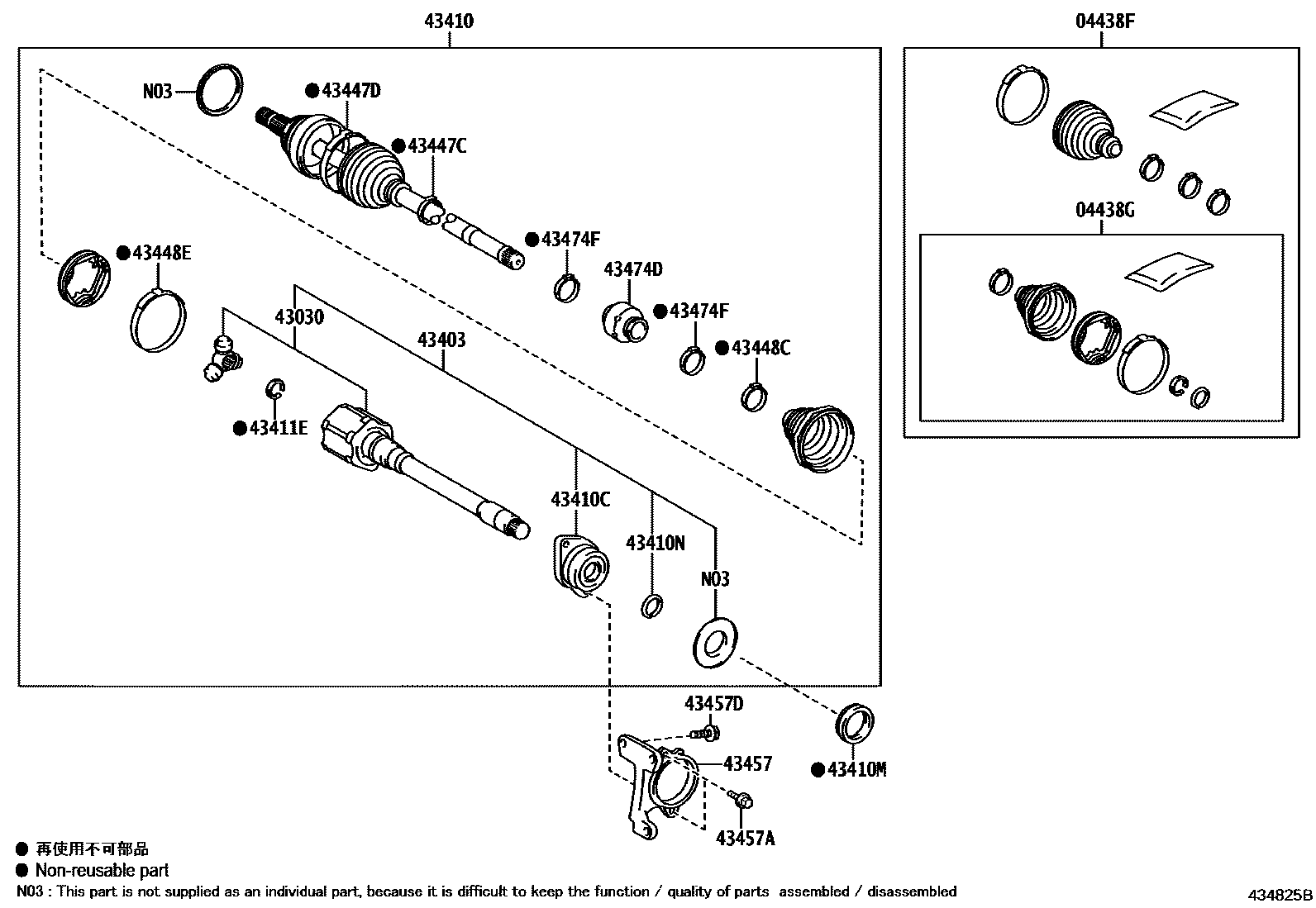

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02B90iAXLH4#202112

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02A10iAXLH4#202112

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-08130iAXLH4#202112

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-0E041iAXLH4#202112

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-08221iAXLH4#202112

43410CBEARING (FOR FRONT DRIVE SHAFT)

main43045-0R010iAXLH4#202112

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-C0057iAXLH4#202112

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0E320iAXLH4#202112

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0R210iAXLH4#202112

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E390iAXLH4#202112

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E580iAXLH4#202112

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E390iAXLH4#202112

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E380iAXLH4#202112

43457BRACKET, DRIVE SHAFT BEARING

main43457-06160iAXLH4#202112

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-C0124iAXLH4#202112

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-C0014iAXLH4#202112

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-08030iAXLH4#202112

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0E190iAXLH4#202112

18 parts on this diagram · 2 diagrams in section
