ANTENNA

0001 1 0002 1

6452

86101CORD SUB-ASSY, ANTENNA

main86101-08100iGSL3#201109-201409

main86101-08530iASL30201109-201308

main86101-08580iGSL3#201409-201505

sub86101-08581

main86101-08581iGSL3#201506-202009

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-08040iGSL30201109-202009

main86300-08050iGSL35201608-202009

main86300-08070iASL30201109-201308

86396NUT, ANTENNA

main86396-47010iASL30201109-201409

86960ANTENNA ASSY, SATELLITE RADIO

main86960-08020iASL30,GSL30201109-201208

sub86960-08021

main86960-08021iASL30201209-201409

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9008011545

main90080-11545

9008011546

main90080-11546

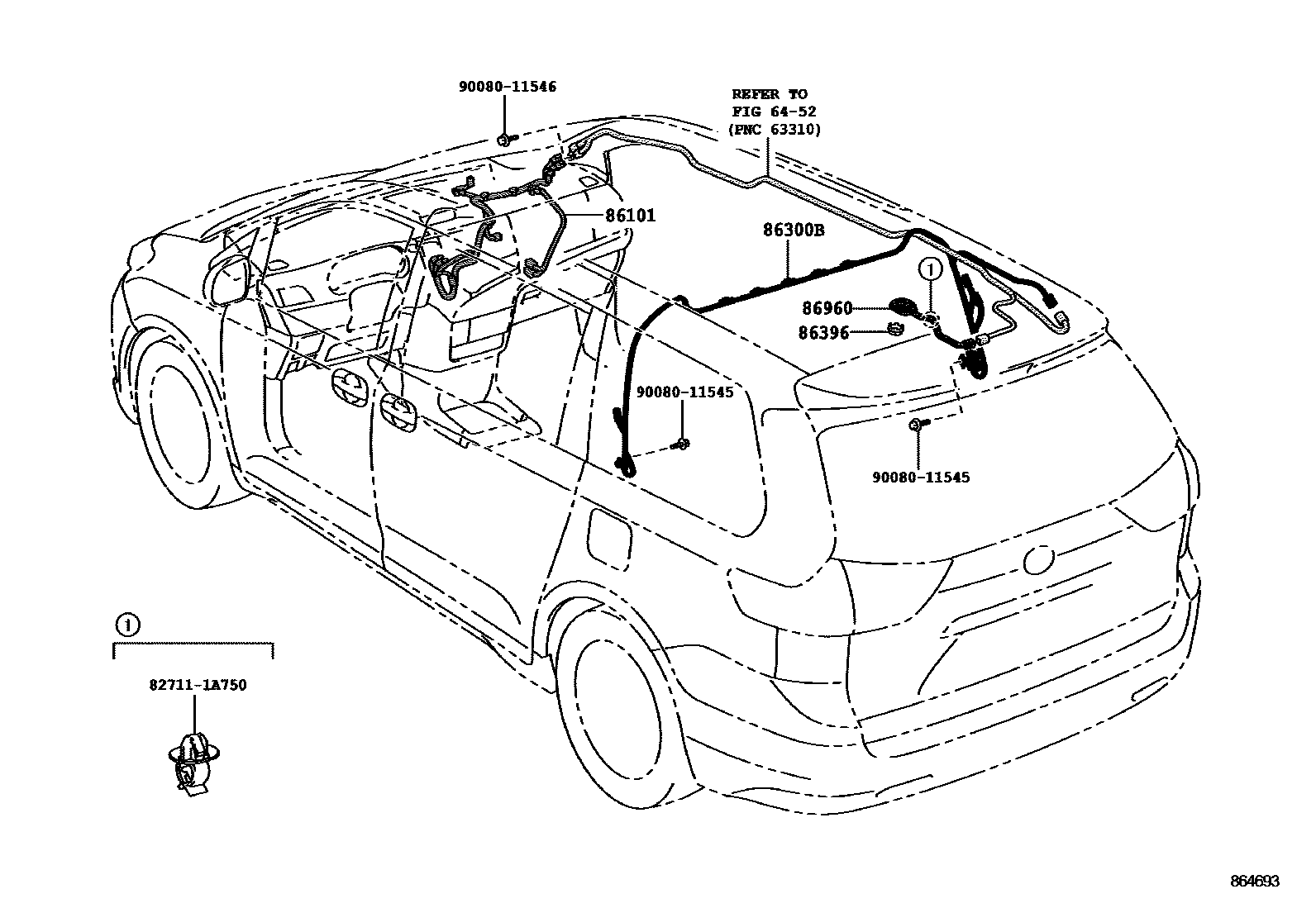

8 parts on this diagram · 2 diagrams in section
