TIRE PRESSURE WARNING SYSTEM

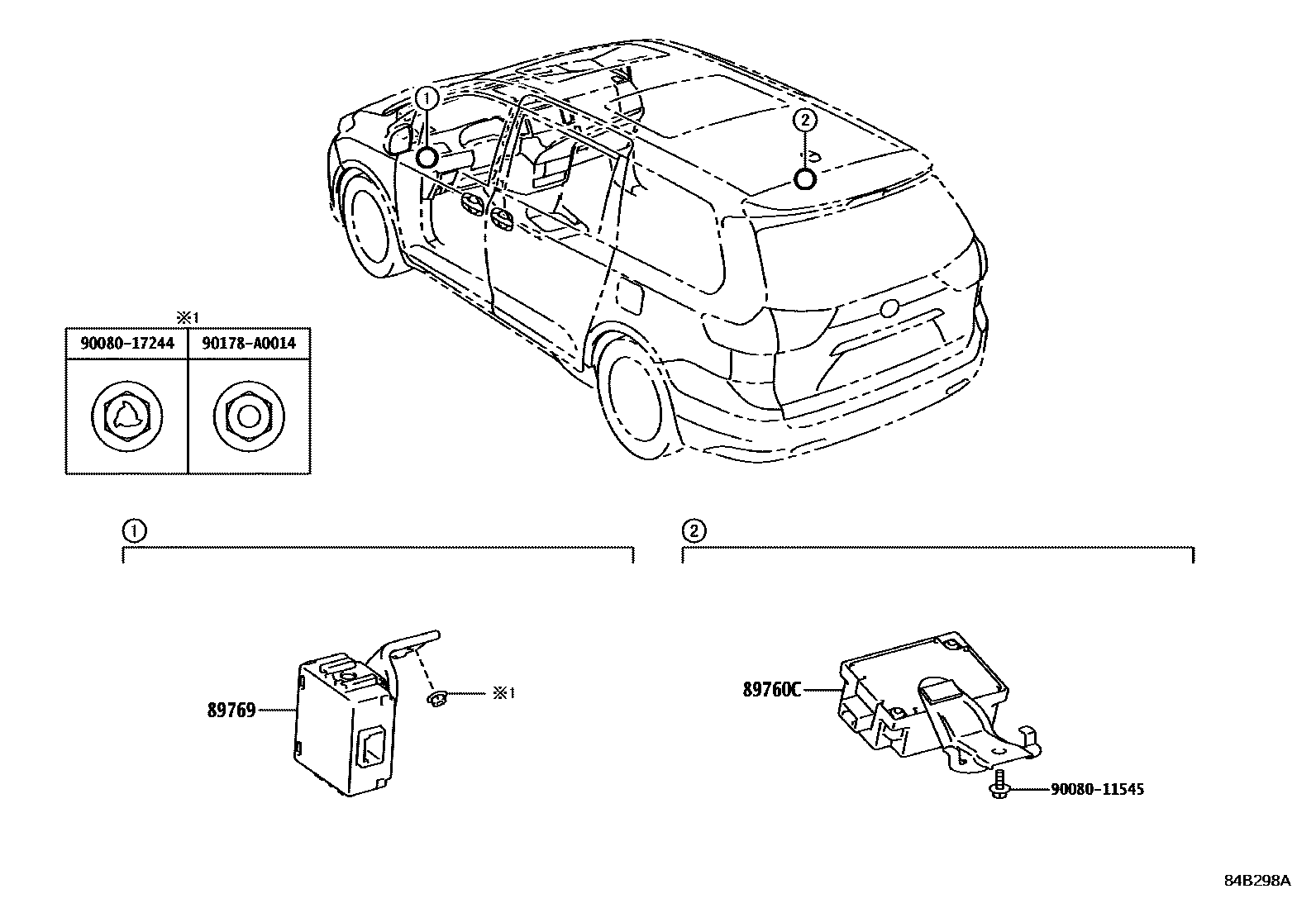

Parts diagram

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-08030i201308-202009

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-08030i201308-202009

9008011545

main90080-11545

9008017244

main90080-17244

90178A0014

main90178-A0014

5 parts on this diagram · 1 diagram in section
