METER

0001 1 0002 1

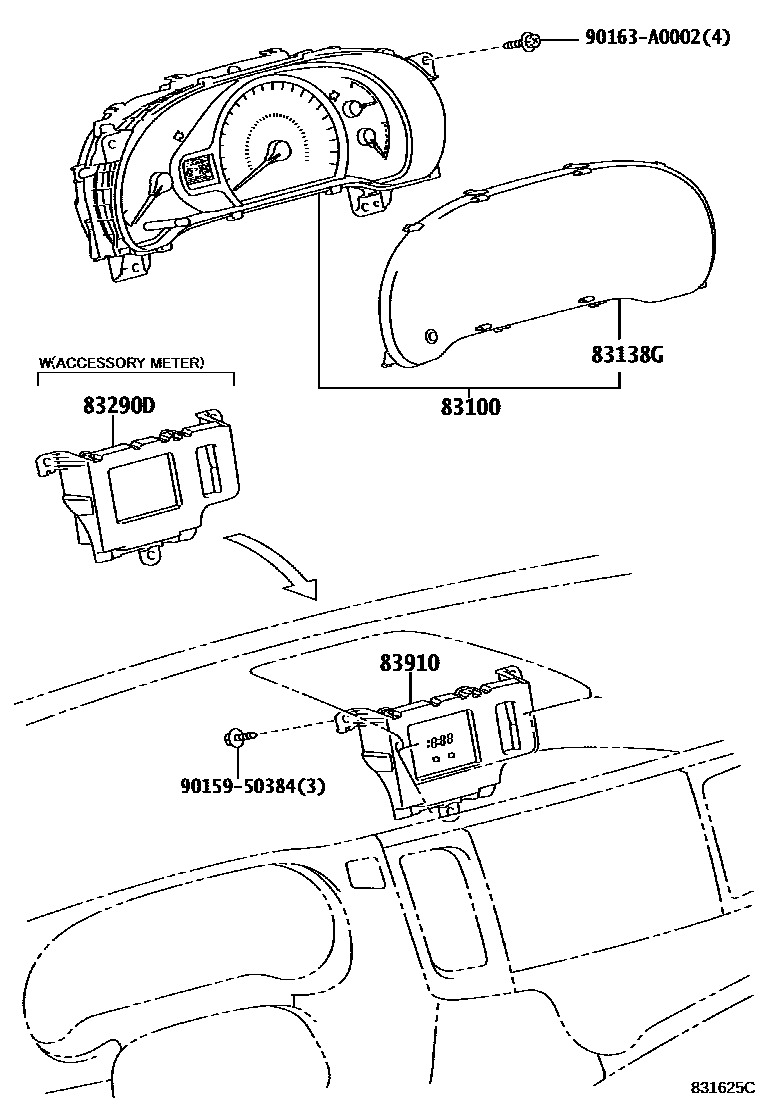

83100METER ASSY, COMBINATION

main83800-08390iGSL30201109-201308

DENSO

main83800-08400iASL30201109-201308

DENSO

main83800-08561iGSL3#201308-201409

DENSO

main83800-08630iGSL3#201409-201608

DENSO

main83800-08700iGSL3#201608-201711

DENSO

main83800-08760iGSL3#201711-201808

DENSO

main83800-08A20iGSL3#201808-201812

DENSO

sub83800-08A21

main83800-08A21iGSL3#201901-201904

DENSO

main83800-08A22iGSL3#201904-202009

DENSO

83138GGLASS, COMBINATION METER

main83852-08350iASL30201109-201308

main83852-08370iGSL3#201109-201409

main83852-08570iGSL3#201409-202009

83290DMETER ASSY, ACCESSORY

main83290-08040iGSL3#201109-201409

83910CLOCK ASSY

main83910-08010iASL30201109-201308

9015950384

main90159-50384

90163A0002

main90163-A0002

6 parts on this diagram · 2 diagrams in section
