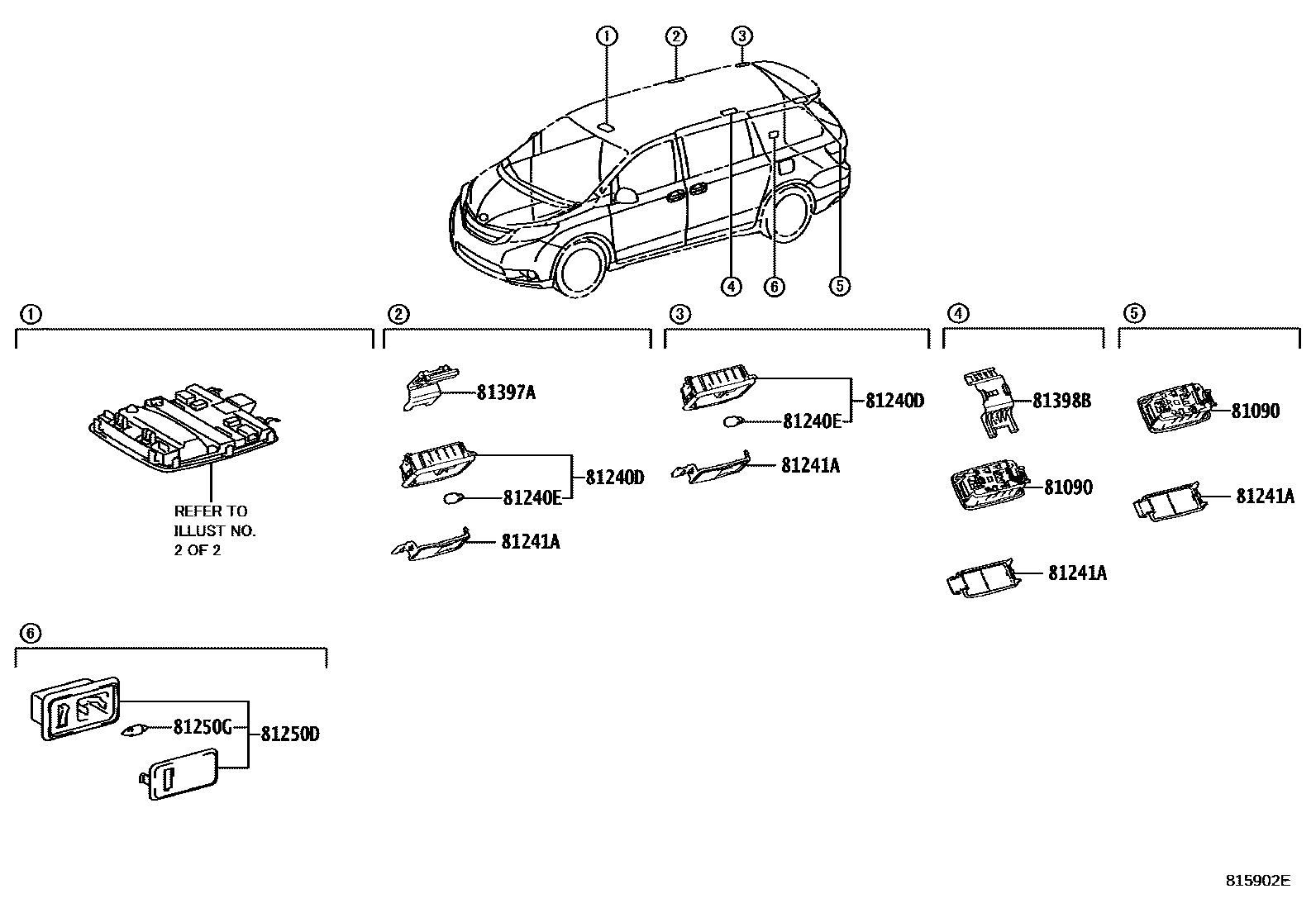

INTERIOR LAMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-08020-B0iASL30201109-202009

LT.GRAY,TRIM1#

main81090-08020-E0iGSL35201109-202009

GREGE,TRIM4#

81240DLAMP ASSY, ROOM, NO.2

main81240-08030-B0iASL30201109-202009

LT.GRAY,TRIM1#

main81240-08030-E0iGSL35201109-202009

GREGE,TRIM4#

81240EBULB, ROOM LAMP, NO.2

main90084-81002iGSL35201109-202009

12V 5W

81241ALENS, ROOM LAMP, NO.2

main81241-08020iASL30201109-202009

81250DLAMP ASSY, REAR ROOM, RH

main81081-45010iGSL3#201109-201508

main81330-58010iGSL3#201509-202009

81250GBULB, REAR ROOM LAMP, RH

main99132-12050iGSL3#201509-202009

12V 5W

main99132-13050iGSL3#201109-201509

12V 5W

81397ARETAINER, ROOM LAMP, RH

main81397-08010iGSL35201109-202009

81398BRETAINER, ROOM LAMP, LH

main81398-08020iASL30201109-202009

8 parts on this diagram · 6 diagrams in section
