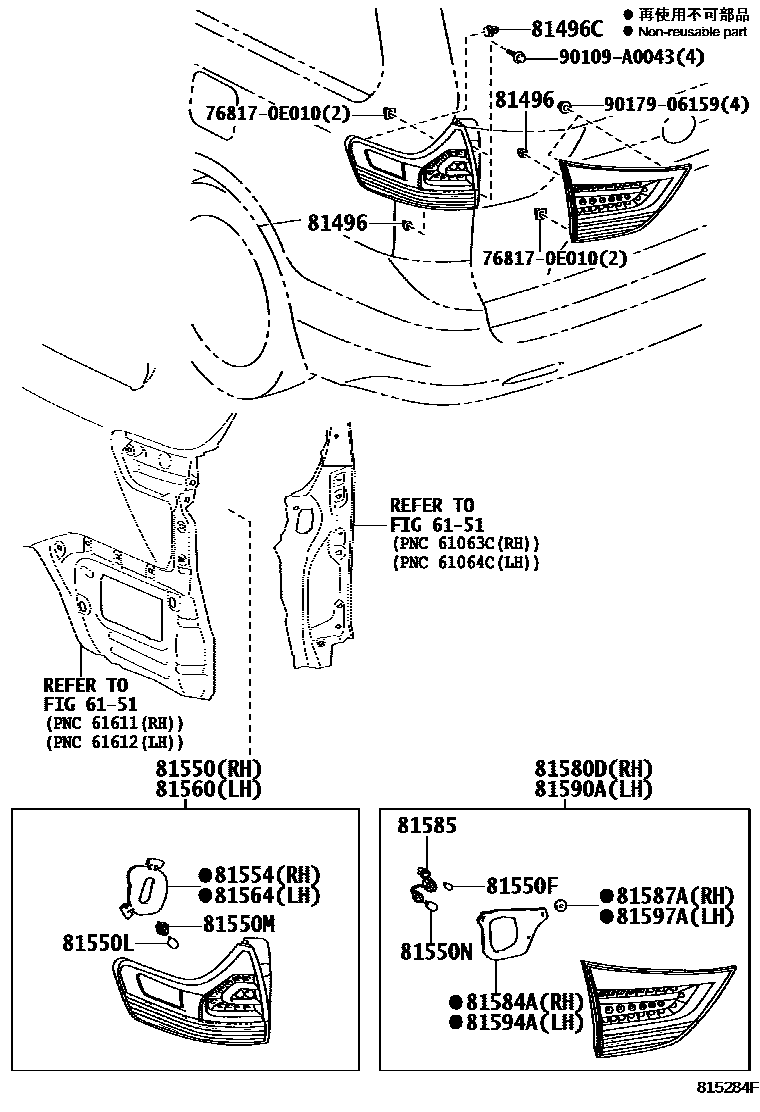

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0E020×4iGSL3#201109-201409

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iASL30201109-201308

81550LAMP ASSY, REAR COMBINATION, RH

main81550-08030iASL30201109-201308

main81550-08050iGSL3#201409-201608

main81550-08051iGSL3#201904-202009

81550FBULB, TAILLAMP

main99132-12050×2iASL30201109-201308

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iGSL3#201109-201409

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026×2iASL30201109-201308

81550NBULB, BACK UP LAMP

main90084-98039×2iGSL3#201711-202009

12V 16W

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-08050iGSL3#201409-201608

main81554-08030iGSL3#201109-201409

81560LAMP ASSY, REAR COMBINATION, LH

main81560-08030iASL30201109-201308

main81560-08050iGSL3#201409-201608

main81560-08051iGSL3#201904-202009

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-08050iGSL3#201409-201608

main81564-08030iGSL3#201109-201409

81580DLAMP ASSY, REAR, RH

main81580-08010iASL30,GSL30201109-201110

main81580-08011iASL30201110-201308

main81580-08030iGSL3#201409-201608

main81580-08031iGSL3#201904-202009

81584PACKING, REAR LAMP RH

main81582-08030iGSL3#201409-201608

81584AGASKET, REAR LAMP RH

main81584-08010iASL30201109-201308

main81584-08030iGSL3#201409-201608

81585SOCKET & WIRE, REAR LAMP

main81585-08010×2iASL30201109-201308

81587APLATE, REAR LAMP CIRCUIT, RH

main81587-08010iASL30201109-201308

81590ALAMP ASSY, REAR, LH

main81590-08010iASL30,GSL30201109-201110

main81590-08011iASL30201110-201308

main81590-08030iGSL3#201409-201608

main81590-08031iGSL3#201904-202009

81594AGASKET, REAR LAMP LH

main81584-08010iASL30201109-201308

main81584-08030iGSL3#201409-201608

81597APLATE, REAR LAMP CIRCUIT, LH

main81587-08010iASL30201109-201308

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

90109A0043

main90109-A0043

9017906159

main90179-06159

22 parts on this diagram · 2 diagrams in section
