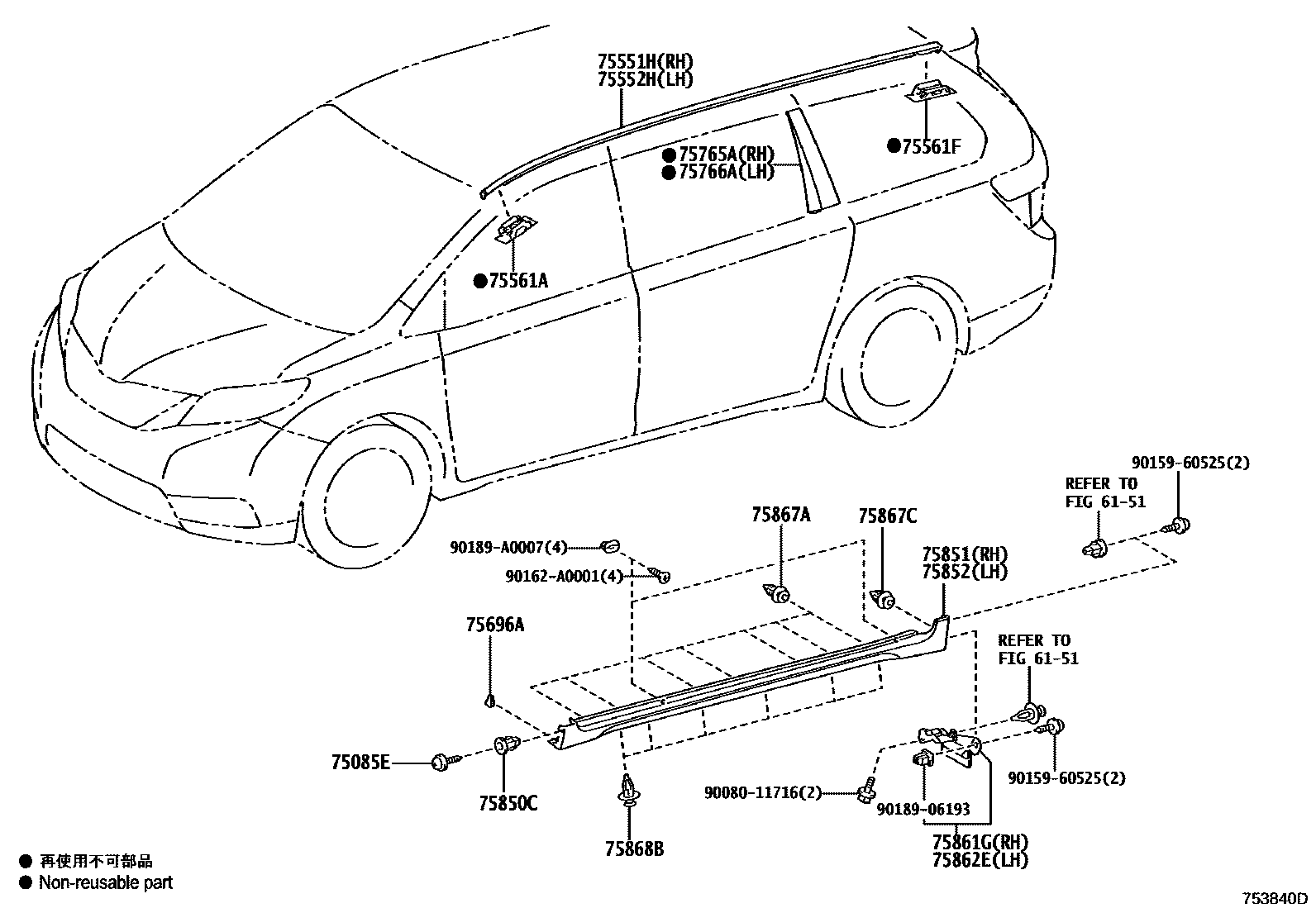

MOULDING

6151

75085ESCREW, NO.1

main90168-A0003iASL30,GSL3#201109-202009

75551HMOULDING, ROOF DRIP SIDE, RH

main75551-08020iASL30201109-202009

75552HMOULDING, ROOF DRIP SIDE, LH

main75552-08020iASL30201109-202009

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-08040iGSL3#201505-202009

main75561-52040iGSL3#201109-201505

75561FCLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-08020iASL30201109-202009

75696APAD, BODY OUTSIDE MOULDING

main75696-08020iGSL3#201711-202009

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-08020iGSL3#201109-202009

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-08020iASL30201109-202009

75850CGROMMET, NO.1

main90189-06145iASL30,GSL3#201109-201410

main90189-A0008iGSL3#201411-202009

75851MOULDING, ROCKER PANEL, RH

main75851-08900iGSL3#201109-201711

main75851-08901iGSL3#201711-202009

75852MOULDING, ROCKER PANEL, LH

main75852-08900iGSL3#201711-202009

main75852-08901iGSL3#201109-201711

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-08010iASL30201109-201808

main75861-08011iGSL3#201808-202009

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-08010iGSL3#201109-201808

main75862-08011iGSL3#201808-202009

75867ACLIP, ROCKER PANEL MOULDING

main75867-AA010iASL30201109-202009

75867CCLIP, ROCKER PANEL MOULDING

main90467-A0007iASL30201109-202009

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75867-30120iASL30201109-202009

9008011716

main90080-11716

9015960525

main90159-60525

90162A0001

main90162-A0001

9018906193

main90189-06193

90189A0007

main90189-A0007

22 parts on this diagram · 1 diagram in section
