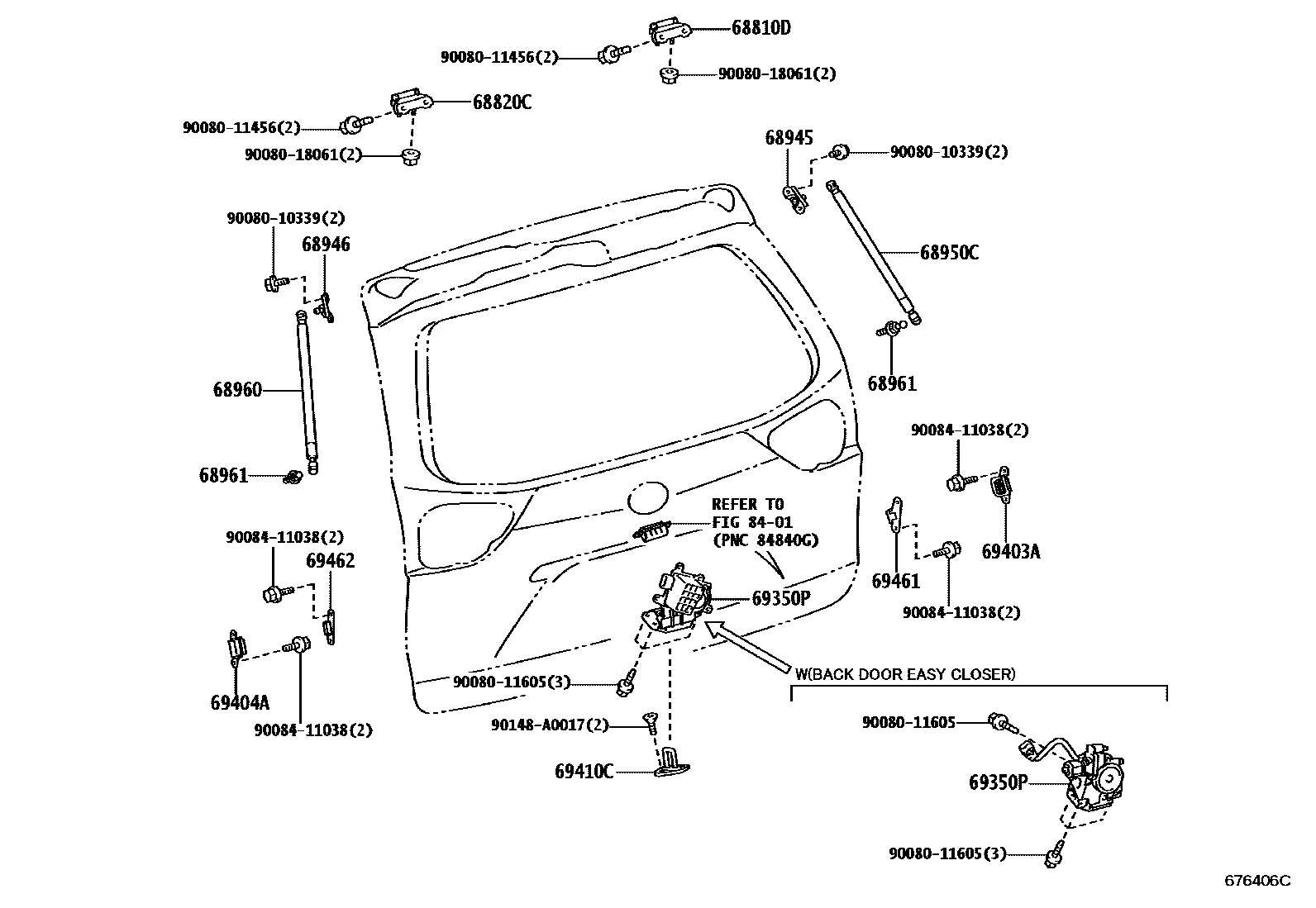

BACK DOOR LOCK & HINGE

0001 1 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0E020iASL30,GSL3#201109-201409

68820CHINGE ASSY, BACK DOOR, LH

main68810-0E020iASL30201109-201308

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-08010iASL30201109-201308

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-08010iASL30201109-201308

68950CSTAY ASSY, BACK DOOR, RH

main68950-08010iASL30201109-201308

sub68950-08011

main68950-08020iGSL3#201109-201403

main68950-08021iGSL3#201404-201409

main68950-08022iGSL3#201702-201711

68960STAY ASSY, BACK DOOR, LH

main68960-08010iASL30201109-201308

sub68960-08011

main68960-08020iGSL3#201109-201403

main68960-08021iGSL3#201404-201409

main68960-08022iGSL3#201702-201711

68961BOLT, BACK DOOR STAY

main68961-08020×2iASL30201109-201308

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-08020iASL30201109-201308

main69350-08040iGSL3#201109-201409

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-08020iASL30201109-201308

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-08020iASL30201109-201308

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-08040iASL30201109-201308

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-08020iASL30201109-201308

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-08020iASL30201109-201308

8401

9008010339

main90080-10339

9008011456

main90080-11456

9008011605

main90080-11605

9008018061

main90080-18061

9008411038

main90084-11038

90148A0017

main90148-A0017

20 parts on this diagram · 2 diagrams in section
