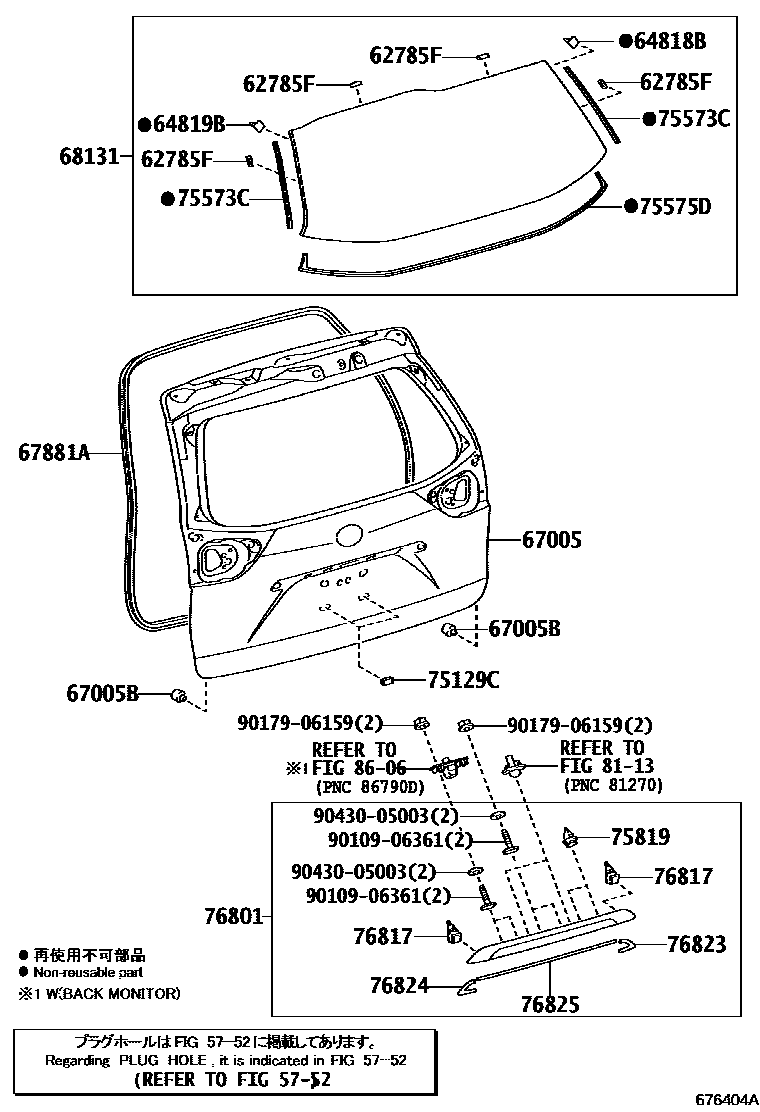

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

62785FSPACER, BACK DOOR GLASS

main62785-60030iASL30201109-202009

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-08020iASL30201109-202009

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-08020iGSL3#201109-202009

67005PANEL SUB-ASSY, BACK DOOR

main67005-08080iASL30201109-201308

main67005-08100iGSL3#201109-202009

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-A0001iASL30201109-202009

67881AWEATHERSTRIP, BACK DOOR

main67881-08030iASL30201109-202009

68131GLASS, BACK DOOR

main68105-08040iASL30,GSL30201109-201308

*HSEA,T=3.5,GREEN

main68105-08050iGSL3#201308-201608

*TEM,T=3.5,PRIVACY

main68105-08050iGSL3#201608-201711

main68105-08060iGSL3#201711-202009

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iASL30201109-202009

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-08020iASL30201109-202009

75575DMOULDING, BACK WINDOW, LOWER

main75575-08010iGSL3#201109-202009

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iASL30201109-202009

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-08040iGSL3#201109-201711

PLATED

main76801-08040iGSL3#201711-202009

main76801-08900iASL30201109-201308

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-07010iGSL3#201109-202009

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76821-08010iASL30201109-202009

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76822-08010iASL30201109-202009

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-08010iASL30201109-202009

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010906361

main90109-06361

9017906159

main90179-06159

9043005003

main90430-05003

22 parts on this diagram · 2 diagrams in section
