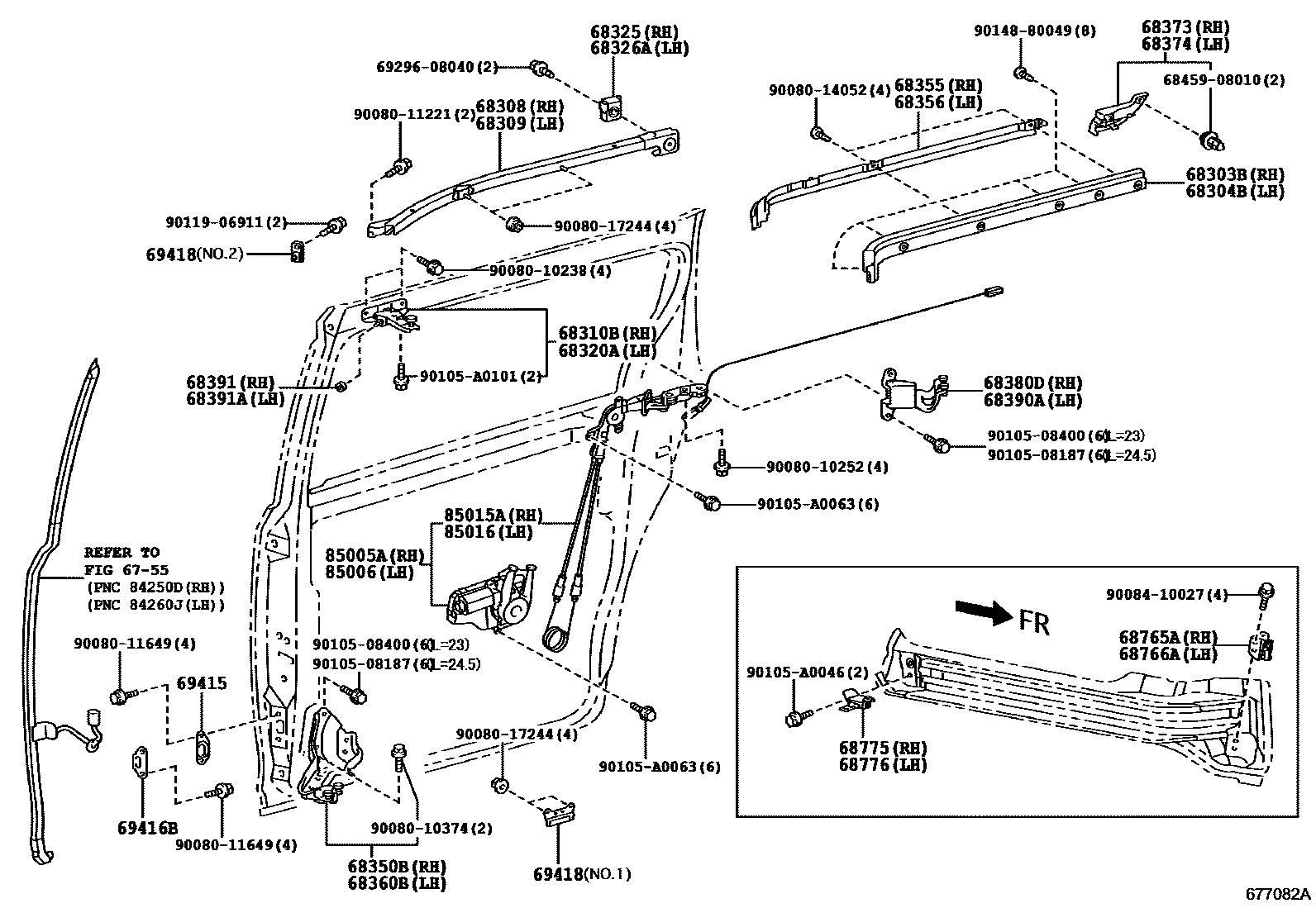

SLIDE ROLLER & RAIL

6755

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-08040iGSL3#201109-202009

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-08040iASL30201109-202009

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-08030iASL30201109-202009

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-08030iASL30201109-202009

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-08030iASL30201109-201901

sub68310-08031

main68310-08031iGSL3#201902-202009

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-08020iASL30201109-201901

sub68320-08021

main68320-08021iGSL3#201902-202009

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-45060iASL30201109-202009

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-45060iASL30201109-202009

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-08030iASL30,GSL30201109-201110

sub68350-08031

main68350-08031iASL30201111-202009

68355GARNISH, SLIDE DOOR CENTER RAIL, RH

main61057-08020iASL30201109-202009

68356GARNISH, SLIDE DOOR CENTER RAIL, LH

main61067-08020iASL30201109-202009

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-08030iASL30,GSL30201109-201110

sub68360-08031

main68360-08031iASL30201111-202009

68373MOULDING, SLIDE RAIL END, RH

main68373-08020iASL30201109-202009

68374MOULDING, SLIDE RAIL END, LH

main68374-08020iASL30201109-202009

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-08040iASL30201109-201804

sub68380-08041

main68380-08041iGSL3#201805-202009

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-08040iGSL3#201109-201804

sub68390-08041

main68390-08041iGSL3#201805-202009

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iGSL3#201109-202009

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iGSL3#201109-202009

68765ABRACKET, SLIDE DOOR, CENTER NO.1 RH

main68765-08020iASL30201109-202009

68766ABRACKET, SLIDE DOOR, CENTER NO.1 LH

main68766-08020iGSL3#201109-202009

68775BRACKET, SLIDE DOOR, CENTER NO.2 RH

main68775-08020iASL30201109-202009

68776BRACKET, SLIDE DOOR, CENTER NO.2 LH

main68776-08020iASL30201109-202009

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-45010iASL30201109-202009

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-58010iGSL3#201109-202009

sub69046-28020

69418STOP, SLIDE DOOR OPEN

main69418-08020iGSL3#201109-202009

NO.1

main69418-45010iGSL3#201109-202009

NO.2

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-08012iASL30,GSL30201109-201206

sub85005-08013

main85005-08013iASL30,GSL30201207-201308

main85005-08014iGSL3#201308-201712

sub85005-08015

main85005-08015iGSL3#201712-201808

main85005-08016iGSL3#201808-202009

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-08012iASL30,GSL30201109-201206

sub85006-08013

main85006-08013iASL30,GSL30201207-201308

main85006-08014iGSL3#201308-201712

sub85006-08015

main85006-08015iGSL3#201712-201808

main85006-08016iGSL3#201808-202009

85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH

main85015-08010iASL30201109-201712

sub85015-08011

main85015-08011iGSL3#201712-202009

85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH

main85016-08010iASL30201109-201712

sub85016-08011

main85016-08011iGSL3#201712-202009

6845908010

main68459-08010

6929608040SCREW, DOOR INSIDE HANDLE

main69296-08040

9008010238

main90080-10238

9008010252

main90080-10252

9008010374

main90080-10374

9008011221

main90080-11221

9008011649

main90080-11649

9008014052

main90080-14052

9008017244

main90080-17244

9008410027

main90084-10027

9010508187

main90105-08187

9010508400

main90105-08400

90105A0046

main90105-A0046

90105A0063

main90105-A0063

90105A0101

main90105-A0101

9011906911

main90119-06911

9014880049

main90148-80049

47 parts on this diagram · 1 diagram in section
