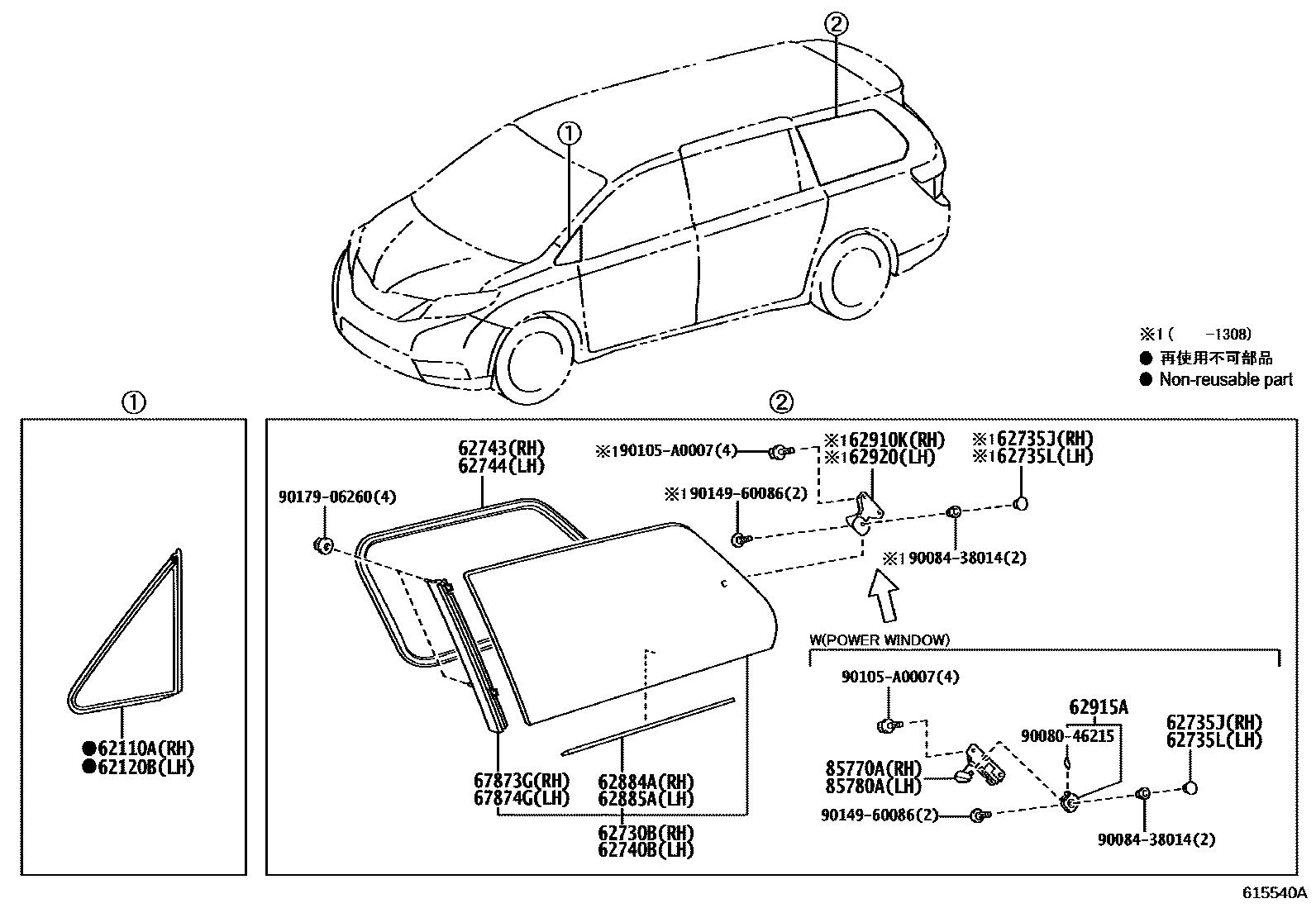

SIDE WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
62120BWINDOW ASSY, FRONT SIDE FIX, LH
62730BWINDOW ASSY, QUARTER, REAR RH
*TT,T=3.5,PRIVACY
62735JRETAINER, QUARTER WINDOW HINGE, LH
62735LRETAINER, QUARTER WINDOW HINGE, RH
62740BWINDOW ASSY, QUARTER, REAR LH
*TT,T=3.5,PRIVACY
62743WEATHERSTRIP, QUARTER WINDOW, REAR RH
62744WEATHERSTRIP, QUARTER WINDOW, REAR LH
62884AGUARD, QUARTER WINDOW, RH
62885AGUARD, QUARTER WINDOW, LH
62910KLOCK ASSY, QUARTER WINDOW, RH
LT.GRAY,TRIM1#
GREGE,TRIM4#
62915AHINGE, QUARTER WINDOW LOCK
62920LOCK ASSY, QUARTER WINDOW, LH
LT.GRAY,TRIM1#
GREGE,TRIM4#
67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH
67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH
85770AMOTOR ASSY, POWER VENT WINDOW, RH
85780AMOTOR ASSY, POWER VENT WINDOW, LH
9008046215
main90080-46215
9008438014
main90084-38014
90105A0007
main90105-A0007
9014960086
main90149-60086
9017906260
main90179-06260
22 parts on this diagram · 1 diagram in section
