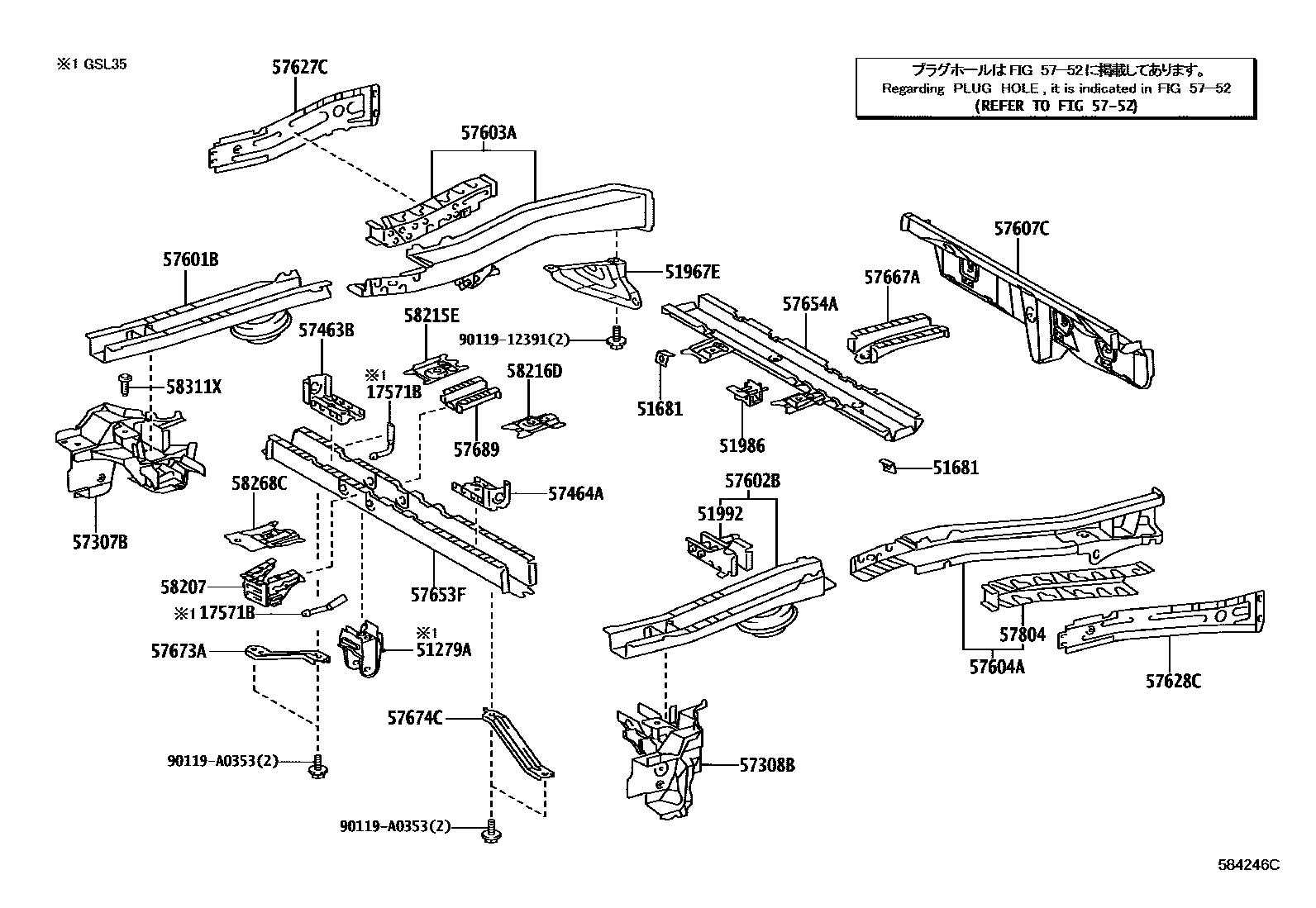

REAR FLOOR PANEL & REAR FLOOR MEMBER
17571BBRACKET, EXHAUST PIPE SUPPORT
51279ABRACKET, DIFFERENTIAL SUPPORT
51681BRACKET, FLEXIBLE HOSE
51967EHOOK, TRANSPORT, REAR RH
51986HANGER, EXHAUST PIPE SUPPORT, NO.3
51992HANGER, EXHAUST PIPE SUPPORT, NO.2
57307BOUTRIGGER SUB-ASSY, NO.4 RH
57308BOUTRIGGER SUB-ASSY, NO.4 LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
5752
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57627CCOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57653FMEMBER, REAR FLOOR CROSS, NO.2
57654AMEMBER, REAR FLOOR CROSS, NO.3
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57673ABRACE, REAR FLOOR NO.2 CROSSMEMBER, RH
57674CBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH
57689REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58215EBRACKET, REAR SEAT MOUNTING, RH
58216DBRACKET, REAR SEAT MOUNTING, LH
58268CREINFORCEMENT, PARKING BRAKE CABLE, NO.3 RH
58311PAN, REAR FLOOR
58311XBOLT, REAR FLOOR WELD
9011912391
main90119-12391
90119A0353
main90119-A0353
33 parts on this diagram · 3 diagrams in section
