RADIATOR GRILLE

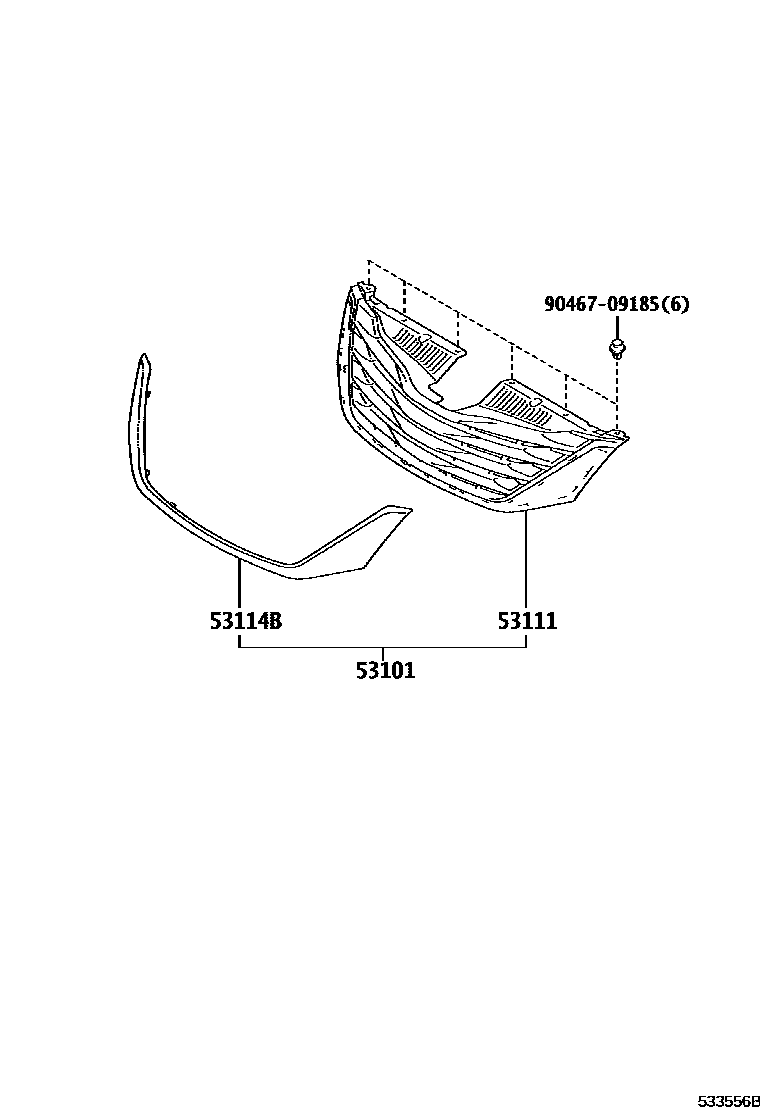

Parts diagram

53101GRILLE SUB-ASSY, RADIATOR

main53101-08010i201409-201608

PLATED

main53101-08090i201109-201308

PLATED

main53101-08100i201109-201208

PLATED

main53101-08101i201208-201409

PLATED

main53101-08170i201711-202009

53111GRILLE, RADIATOR

main53111-08040i201109-201308

NO PAINT REQ.

main53111-08050i201109-201208

NO PAINT REQ.

main53111-08051i201208-201409

NO PAINT REQ.

main53111-08080i201409-201608

PLATED

main53111-08140i201711-202009

53114BGRILLE, RADIATOR, UPPER

main53114-08020i201109-201308

9046709185

main90467-09185

4 parts on this diagram · 2 diagrams in section
