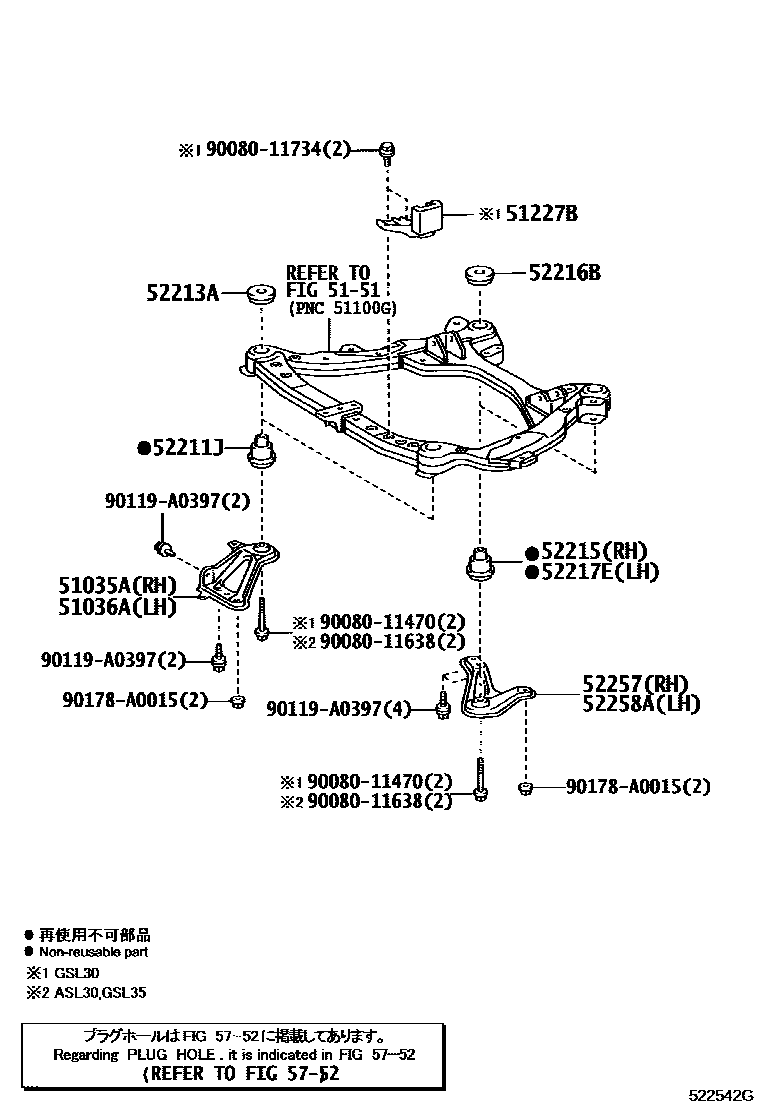

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

51035APLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-08010iGSL30¥3,710201109-202009

main51035-08020iGSL35¥3,710201109-202009

51036APLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-08010iGSL30¥3,710201109-202009

main51036-08020iGSL35¥3,710201109-202009

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iGSL30201109-202009

5151

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06030iGSL30201109-202009

main52211-08020iGSL35¥4,100201109-202009

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06030iGSL30201109-202009

main52213-58010iGSL35¥1,940201109-202009

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iGSL30201109-202009

main52215-08020iGSL35¥5,300201109-202009

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030iGSL30201109-202009

main52216-08020iGSL35¥1,940201109-202009

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iGSL30201109-202009

main52217-08010iASL30¥4,950201109-202009

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-08010iGSL30¥3,920201109-201409

main51023-08030iASL30¥3,290201109-202009

main51023-08040iGSL30¥4,830201409-202009

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-08010iGSL30¥3,920201109-201409

main51024-08030iGSL35¥3,290201109-202009

main51024-08040iGSL30¥4,830201409-202009

5752

9008011470

main90080-11470

9008011638

main90080-11638¥810

9008011734

main90080-11734

90119A0397

main90119-A0397

90178A0015

main90178-A0015

17 parts on this diagram · 2 diagrams in section
