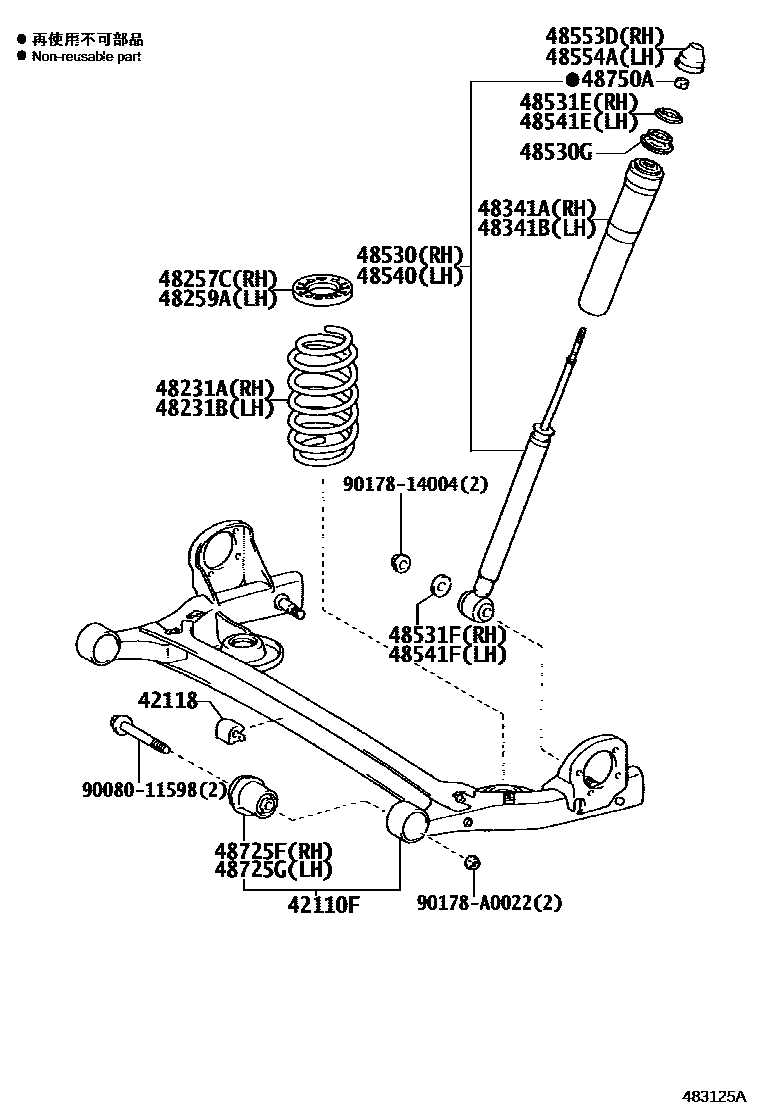

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
42118DAMPER, REAR AXLE BEAM
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-08010
MARK 48531-08020
MARK 48531-08040
MARK 48531-08050
MARK 48531-08060
MARK 48531-08080
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-08010
MARK 48531-08020
MARK 48531-08040
MARK 48531-08050
MARK 48531-08060
MARK 48531-08080
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
9008011598
main90080-11598
9017814004
main90178-14004
90178A0022
main90178-A0022
23 parts on this diagram · 1 diagram in section
