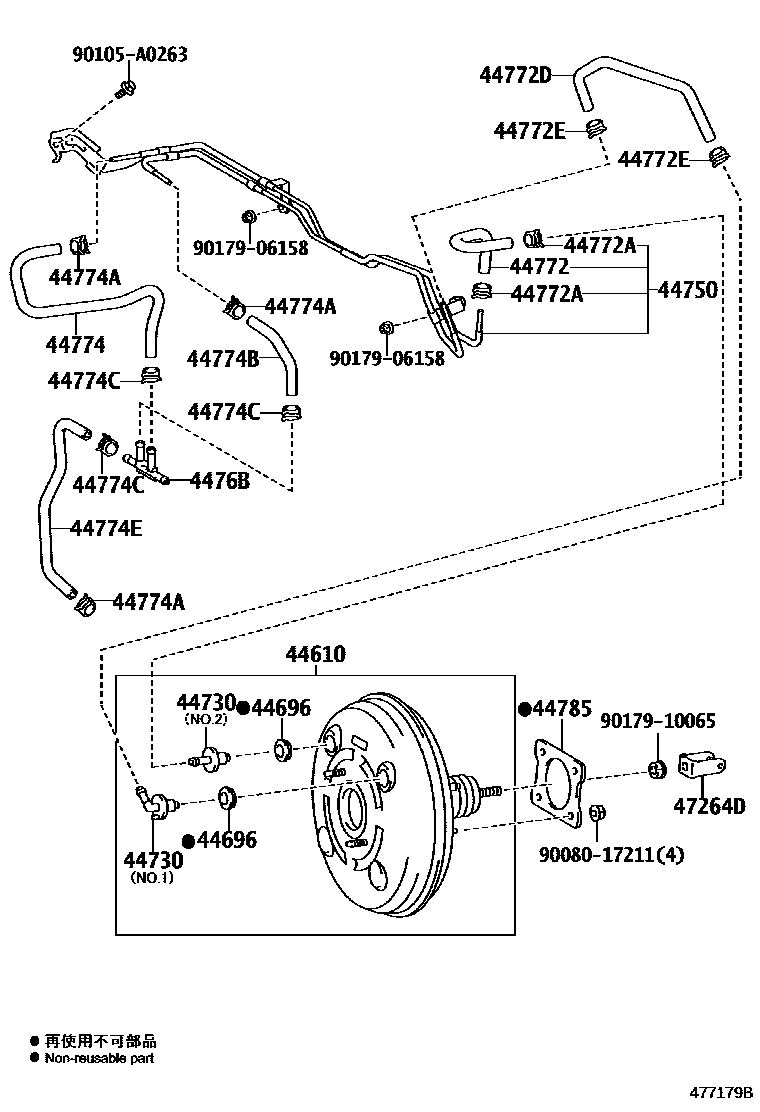

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-08071iGSL3#201109-201608

main44610-08080iASL30201109-201308

main44610-08090iGSL3#201608-202009

44696GROMMET, CHECK VALVE

main90080-48071iASL30201109-202009

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iASL30201109-201308

NO.1

main44730-60070iGSL3#201109-202009

main44730-60070iASL30201109-201308

NO.2

44750HOSE ASSY, VACUUM

main44750-08060iGSL3#201608-201709

main44750-08080iASL30201109-201308

main44750-08090iGSL3#201709-202009

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iASL30201109-201308

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-08020iASL30201109-201308

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iASL30201109-201308

44772DHOSE, CHECK VALVE TO ACTUATOR

main44772-08030iASL30201109-201308

44772ECLIP(FOR CHECK VALVE TO ACTUATOR HOSE)

main90467-16014iASL30201109-201308

44774HOSE, UNION TO CONNECTOR TUBE

main44774-08020iASL30201109-201308

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iASL30201109-201308

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-08030iASL30201109-201308

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-A0003iASL30201109-201308

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-08040iASL30201109-201308

44785GASKET, BRAKE BOOSTER

main44785-02060iGSL3#201109-202009

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iGSL3#201808-202009

(L)

main47264-06040iASL30,GSL3#201206-201608

W/MARK

main47264-06040iGSL3#201608-201808

main47264-48020iASL30,GSL30201109-201206

W/O MARK

main47264-48020iGSL3#201808-202009

(J)

9008017211

main90080-17211

90105A0263

main90105-A0263

9017906158

main90179-06158

9017910065

main90179-10065

20 parts on this diagram · 3 diagrams in section
