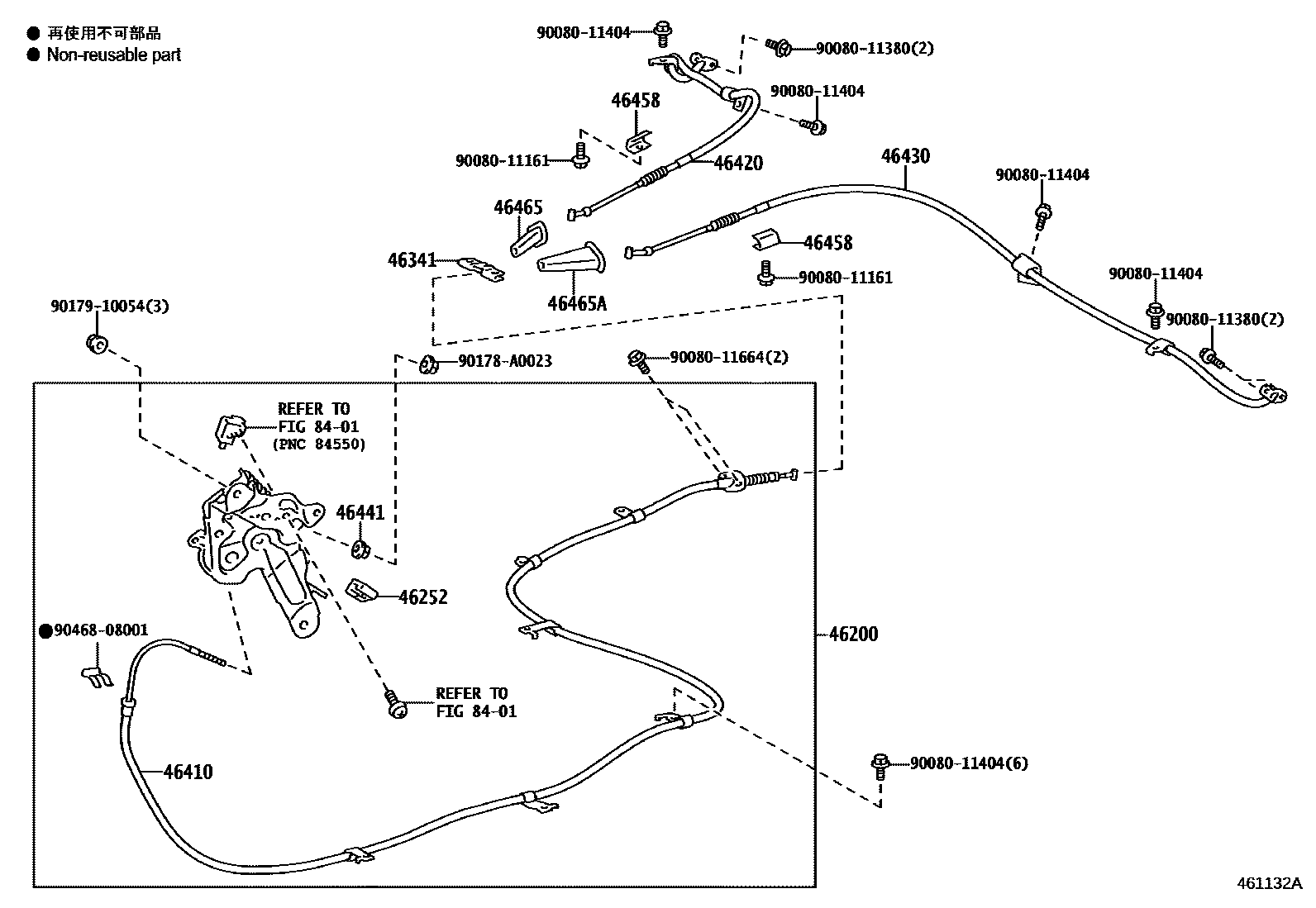

PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
46441NUT, WIRE ADJUSTING, NO.1
46458RETAINER, CABLE
46465GUIDE, PARKING BRAKE CABLE, RH
46465AGUIDE, PARKING BRAKE CABLE, LH
8401
9008011161
main90080-11161
9008011380
main90080-11380
9008011404
main90080-11404
9008011664
main90080-11664
90178A0023
main90178-A0023
9017910054
main90179-10054
9046808001
main90468-08001
18 parts on this diagram · 2 diagrams in section
