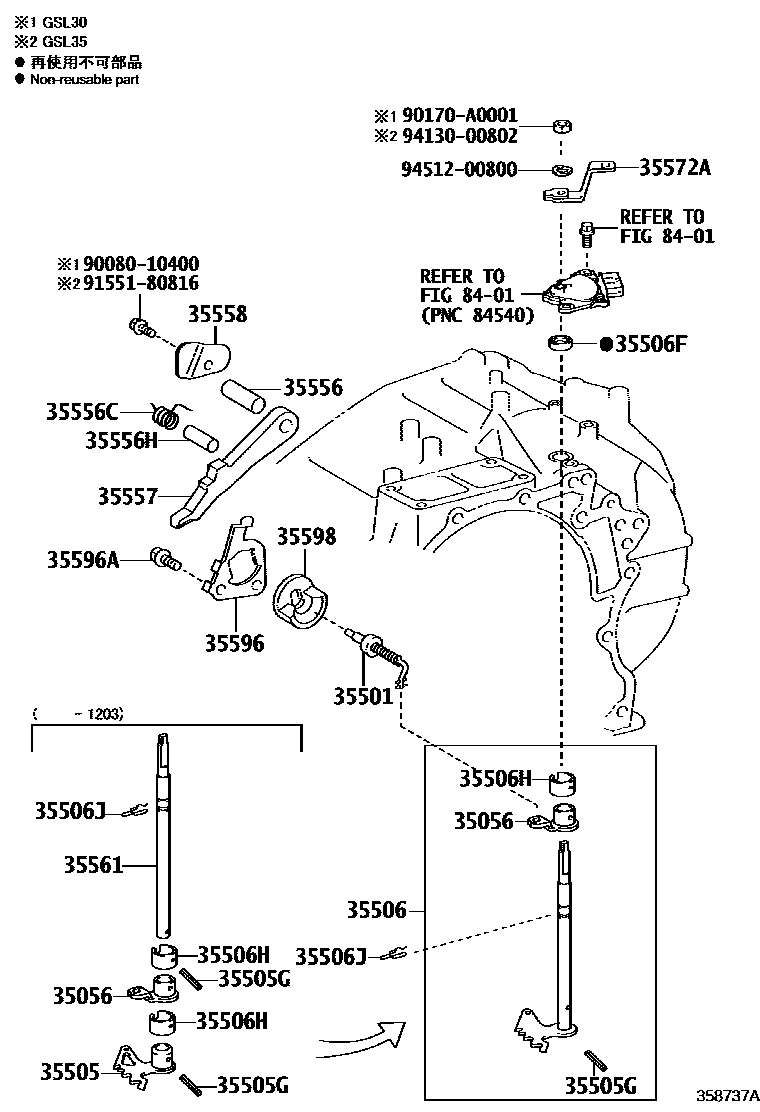

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U660E 0002 1U760E 0003 1UA80E,UA80F

35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER

main35057-33010iGSL3#201109-201409

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iGSL3#201409-201608

main35501-48040iGSL3#201608-201711

35505LEVER SUB-ASSY, MANUAL VALVE

main35502-48010iGSL3#201608-201711

main35505-33011iGSL30201109-201203

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iGSL3#201203-201409

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35503-48010iGSL3#201711-202009

NO.2

main35506-33011iASL30201109-201308

main35506-33020iGSL3#201409-201608

main35506-48010iGSL30201608-201711

NO.1,TMC:REFER 35-01

main35506-48011iGSL30201906-202006

NO.1,TMC:REFER 35-01

main35506-48020iGSL3#201608-201711

NO.1,AISIN:SEE 35-01

main35506-48021iGSL3#201906-202009

NO.1,AISIN:SEE 35-01

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iGSL3#201711-202009

main90311-12002iGSL35201409-201501

main90311-A0009iGSL30201109-201409

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iGSL3#201203-201409

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iGSL35201409-201501

main90524-09004iGSL3#201711-202009

main90524-A0001iGSL35201501-201608

TRANSAXLE NO.=3XXXXX

35556SHAFT, PARKING LOCK PAWL

main35556-0R010iGSL35201501-201608

main35556-33010iGSL3#201109-201409

main35556-33020iASL30201109-201308

main35556-48030iGSL30201608-201711

TOYOTA:REFER 35-01

main35556-48040iGSL3#201608-201711

AISIN:REFER 35-01

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21007iGSL35201308-201409

main90508-21008iASL30201109-201308

main90508-A0008iGSL30201409-201608

35556HSHAFT, PARKING LOCK PAWL

main35556-0R020iGSL30201411-201608

main35556-33030iASL30201109-201308

main35556-63010iGSL3#201109-201409

35557PAWL, PARKING LOCK

main35557-33020iGSL30201109-201203

main35557-33021iGSL3#201203-201409

main35557-48040iGSL3#201608-201711

main35557-73010iASL30201109-201308

35558CLAMP, PAWL SHAFT

main35558-06010iGSL30201212-201409

main35558-33010iGSL30201109-201212

main35558-33020iASL30201109-201308

35561SHAFT, MANUAL VALVE LEVER

main35561-33020iGSL30201109-201203

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08020iGSL30201409-201608

main35572-33020iGSL35201109-201409

main35572-48050iGSL3#201608-201711

sub35572-48051

35596PLATE, PAWL STOPPER

main35596-07010iGSL30201409-201608

main35596-33010iGSL35201409-201501

main35596-48030iGSL3#201608-201711

main35596-73010iASL30201109-201308

35596ABOLT (FOR PAWL STOPPER PLATE)

main90080-10400×2iGSL30201409-201608

*8-1.25PX16-13.5

main91551-80816×2iGSL35201109-201409

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-0R010iGSL30201212-201409

main35598-33010iGSL35201409-201501

main35598-48030iGSL3#201608-201609

main35598-48040iGSL3#201610-201711

8401

9008010400

main90080-10400

90170A0001

main90170-A0001

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

24 parts on this diagram · 3 diagrams in section
