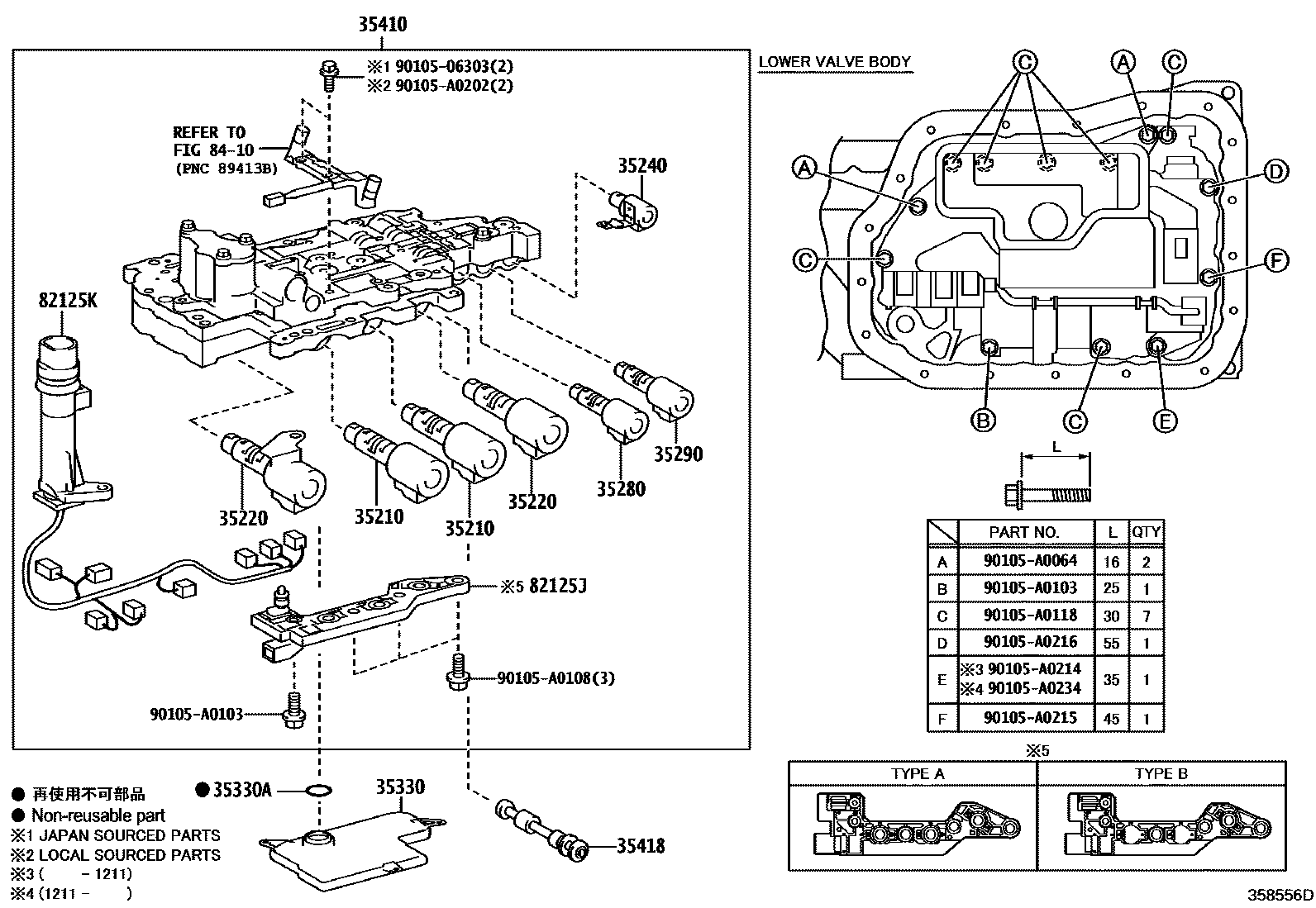

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U660F 0003 1U760E 0004 1U660E 0005 1U660F,U760E 0006 1UA80E,UA80F

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030×2iGSL3#201409-201608

main35210-73010×2iASL30201109-201308

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040×2iGSL3#201109-201409

main35220-73010×2iASL30201109-201308

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iASL30201109-201308

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASL30201109-201308

main35280-52040iGSL3#201109-201409

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASL30201109-201308

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGSL30201109-201308

main35330-48020iGSL3#201409-201608

main35330-73010iASL30201109-201308

35330ARING, O (FOR OIL STRAINER)

main90301-27015iGSL35201409-201501

main90301-A0026iGSL30201409-201608

35410BODY ASSY, TRANSMISSION VALVE

main35410-08020iGSL30201109-201205

sub35410-33171

main35410-08021iGSL35201501-201608

TRANSAXLE NO.=3XXXXX

main35410-33240iGSL35201308-201409

main35410-33260iASL30201109-201308

main35410-48070iGSL30201608-201711

TOYOTA:REFER 35-01

main35410-48090iGSL3#201608-201711

AISIN:REFER 35-01

35418VALVE, MANUAL

main35418-73010iGSL3#201409-201608

82125JWIRE, TRANSMISSION

main82125-33090iGSL30201109-201203

TYPE A:REFER ILLUST.

sub82125-33091

main82125-33150iGSL3#201409-201608

sub82125-33151

main82125-33170iGSL3#201608-201711

main82125-33171iGSL3#201808-202009

main82125-73010iASL30201109-201308

sub82125-73011

82125KWIRE, TRANSMISSION

main82125-33100iGSL30201109-201203

main82125-33160iGSL3#201409-201608

8410

9010506303

main90105-06303

90105A0064

main90105-A0064

90105A0103

main90105-A0103

90105A0108

main90105-A0108

90105A0118

main90105-A0118

90105A0202

main90105-A0202

90105A0214

main90105-A0214

90105A0215

main90105-A0215

90105A0216

main90105-A0216

90105A0234

main90105-A0234

22 parts on this diagram · 6 diagrams in section
