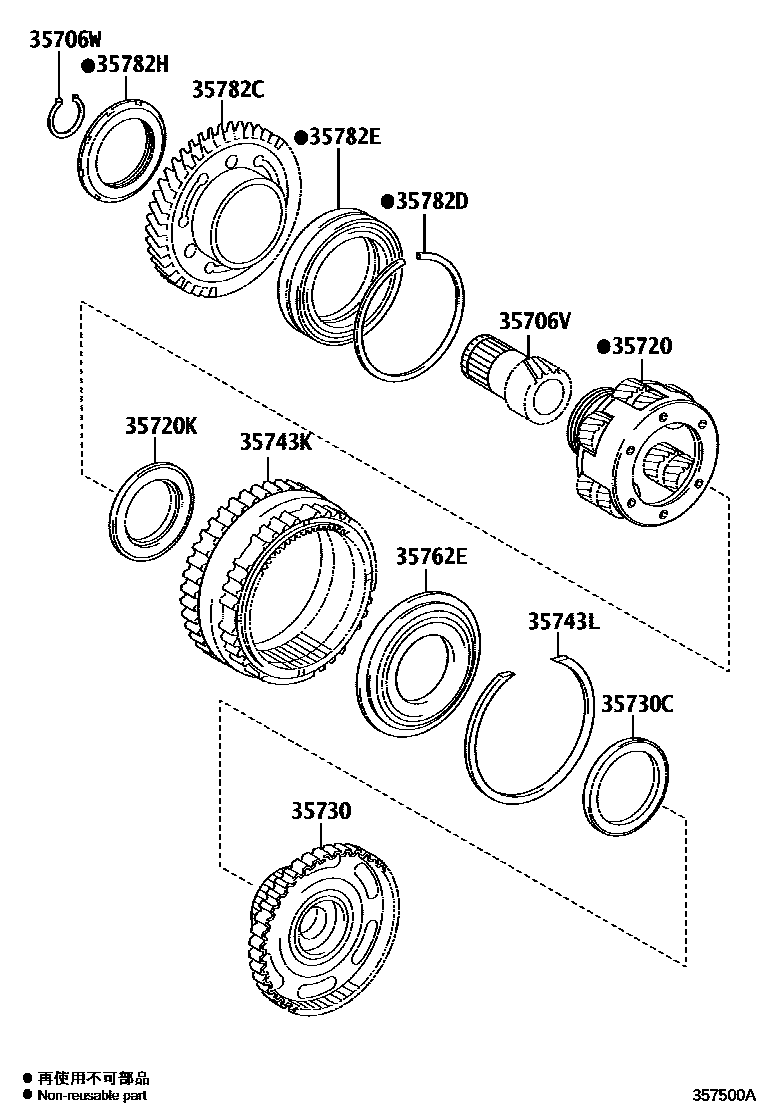

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U760E 0002 1U660E 0003 1UA80(FRONT PLANETARY GEAR) 0004 1UA80(REAR PLANETARY GEAR)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGSL35201409-201501

main35706-48030iGSL30201608-201711

TOYOTA:REFER 35-01

main35706-48040iGSL3#201608-201711

AISIN:REFER 35-01

main35706-73010iASL30201109-201308

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iGSL3#201109-201409

35720GEAR ASSY, FRONT PLANETARY

main35720-33050iASL30201109-201308

sub35720-33070

main35720-33062iGSL3#201109-201409

main35720-48070iGSL30201610-201711

TOYOTA:REFER 35-01

main35720-48080iGSL30201608-201610

TOYOTA:REFER 35-01

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iGSL35201308-201310

main90374-62004iASL30201109-201308

sub90374-62011

main90374-62007iGSL35201409-201501

main90374-A0028iGSL30201409-201608

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iGSL3#201109-201409

main35730-33030iASL30201109-201308

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASL30201109-201308

main90374-A0029iGSL30201409-201608

35743GEAR, FRONT PLANETARY RING

main35743-48020iGSL3#201608-201711

35743KGEAR, PLANETARY RING

main35743-33030iGSL3#201409-201608

main35743-33040iASL30201109-201308

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iGSL35201409-201501

main90520-A0016iGSL30201109-201409

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGSL35201308-201409

main35762-73010iASL30201109-201308

35782CGEAR, COUNTER DRIVE

main35782-33031iGSL3#201109-201409

main35782-33040iASL30201109-201308

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iASL30201109-201308

main90520-99154iGSL35201409-201501

main90520-A0009iGSL30201109-201408

main90520-A0042iGSL35201501-201608

TRANSAXLE NO.=3XXXXX

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iASL30201109-201308

main90369-72002iGSL35201409-201501

main90369-A0005iGSL30201109-201407

main90369-A0006iGSL30201407-201409

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iGSL35201409-201501

main90179-A0017iGSL30201411-201608

14 parts on this diagram · 4 diagrams in section
