TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

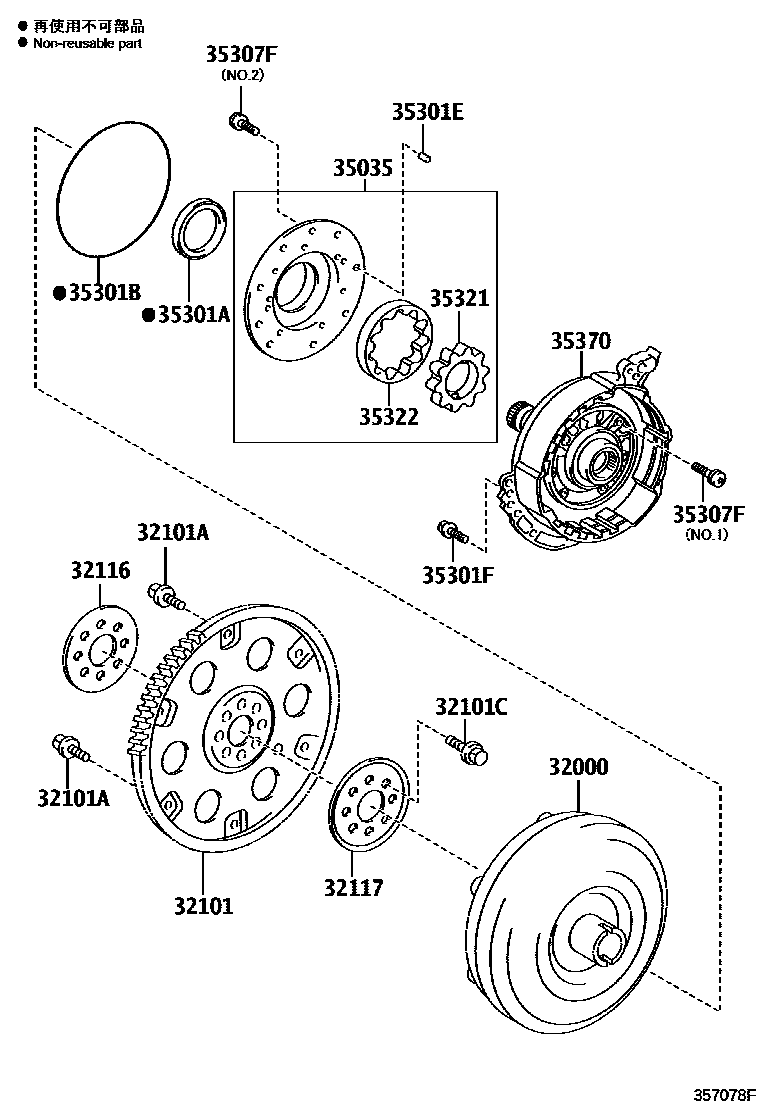

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-07022i201409-201608
(L)
sub32000-33160
main32000-07022i201109-201409
sub32000-33160
main32000-33132i201308-201409
sub32000-33160
main32000-33132i201409-201411
(J)
sub32000-33160
main32000-33141i201109-201308
sub32000-33142
main32000-48060i201608-202004
main32000-48060i201903-202009
AISIN AW:REFER 35-01
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06050i201109-201308
(L)
main32101-0E010i201312-202009
(L)
main32101-48010i201109-201312
main32101-48010i201312-202009
(J)
main32101-73010i201109-201308
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201109-202009
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201109-202009
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i201109-201409
*10-1.25PX18-13,(J)
main90105-10048i201409-202009
*10-1.25PX18-13
main90105-12384i201109-201308
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i201109-201308
main32116-32020i201109-201608
32117SPACER, DRIVE PLATE, REAR
main32117-20060i201109-201308
main32117-32020i201109-202009
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-07011i201109-201608
(L)
main35035-07011i201501-201608
AXLE NO.=3XXXXXX,(L)
main35035-33031i201211-201608
(J)
main35035-33031i201308-201501
main35035-33031i201501-201608
AXLE NO.=3XXXXXX,(J)
main35035-33042i201109-201308
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i201109-201501
main90311-43010i201211-201608
(J)
main90311-43010i201501-201608
AXLE NO.=3XXXXXX,(J)
main90311-51013i201608-202009
main90311-A0010i201109-201608
(L)
main90311-A0010i201501-201608
AXLE NO.=3XXXXXX,(L)
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-06010i201501-201608
TRANSAXLE NO.=3XXXXX
main35697-06010i201212-201608
main35697-33010i201109-201501
main90301-A0002i201109-201212
sub35697-06010
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040i201211-201608
(J)
main90250-08040i201501-201608
AXLE NO.=3XXXXXX,(J)
main90250-08040i201308-201501
main90250-08052i201109-201308
main90250-A0023i201109-201608
(L)
main90250-A0023i201501-201608
AXLE NO.=3XXXXXX,(L)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-A0120i201109-201608
*8-1.25PX35-22
main90105-A0120i201501-201608
*8-1.25PX35-22,TRANSAXLE NO.=3XXXXX
main91551-80835i201109-201501
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90148-60064i201308-201501
NO.1
main90148-60064i201501-201608
AXL NO.=3XX,NO.1,(J)
main90148-60064i201211-201608
(J),NO.1
main90148-60065i201308-201501
NO.2
main90148-60065i201211-201608
(J),NO.2
main90148-60065i201501-201608
AXL NO.=3XX,NO.2,(J)
main90148-60067i201109-201308
NO.1
main90148-60068i201109-201308
NO.2
main90148-A0010i201109-201409
(L),NO.2
main90148-A0010i201409-201608
NO.2
main90148-A0010i201501-201608
AXL NO.=3XX,NO.2,(L)
main90148-A0011i201109-201409
(L),NO.1
main90148-A0011i201501-201608
AXL NO.=3XX,NO.1,(L)
main90148-A0011i201409-201608
NO.1
35321GEAR, FRONT OIL PUMP DRIVE
main35321-07011i201109-201212
T=11.567,MARK 1,(L)
sub35321-0R010
main35321-07021i201109-201212
T=11.567,MARK 2,(L)
sub35321-0R020
main35321-07031i201109-201212
T=11.567,MARK 3,(L)
sub35321-0R030
main35321-07041i201109-201212
T=11.567,MARK 4,(L)
sub35321-0R040
main35321-07051i201109-201212
T=11.567,MARK 5,(L)
sub35321-0R050
main35321-0R010i201212-201608
T=11.567,MARK 1,(L)
main35321-0R010i201501-201608
T=11.567,MARK 1,AXLE NO.=3XXXXXX,(L)
main35321-0R020i201212-201608
T=11.567,MARK 2,(L)
main35321-0R020i201501-201608
T=11.567,MARK 2,AXLE NO.=3XXXXXX,(L)
main35321-0R030i201501-201608
T=11.567,MARK 3,AXLE NO.=3XXXXXX,(L)
main35321-0R030i201212-201608
T=11.567,MARK 3,(L)
main35321-0R040i201501-201608
T=11.567,MARK 4,AXLE NO.=3XXXXXX,(L)
main35321-0R040i201212-201608
T=11.567,MARK 4,(L)
main35321-0R050i201212-201608
T=11.567,MARK 5,(L)
main35321-0R050i201501-201608
T=11.567,MARK 5,AXLE NO.=3XXXXXX,(L)
main35321-33111i201109-201608
T=11.567,MARK 1,(J)
main35321-33111i201501-201608
T=11.567,MARK 1,AXLE NO.=3XXXXXX,(J)
main35321-33121i201109-201608
T=11.567,MARK 2,(J)
main35321-33121i201501-201608
T=11.567,MARK 2,AXLE NO.=3XXXXXX,(J)
main35321-33131i201109-201608
T=11.567,MARK 3,(J)
main35321-33131i201501-201608
T=11.567,MARK 3,AXLE NO.=3XXXXXX,(J)
main35321-33141i201109-201608
T=11.567,MARK 4,(J)
main35321-33141i201501-201608
T=11.567,MARK 4,AXLE NO.=3XXXXXX,(J)
main35321-33151i201109-201608
T=11.567,MARK 5,(J)
main35321-33151i201501-201608
T=11.567,MARK 5,AXLE NO.=3XXXXXX,(J)
main35321-48110i201608-202009
T=16.66
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-07010i201109-201212
T=11.567,MARK 1,(L)
sub35322-0R010
main35322-07020i201109-201212
T=11.567,MARK 2,(L)
sub35322-0R020
main35322-07030i201109-201212
T=11.567,MARK 3,(L)
sub35322-0R030
main35322-07040i201109-201212
T=11.567,MARK 4,(L)
sub35322-0R040
main35322-07050i201109-201212
T=11.567,MARK 5,(L)
sub35322-0R050
main35322-0R010i201212-201608
T=11.567,MARK 1,(L)
main35322-0R010i201501-201608
T=11.567,MARK 1,AXLE NO.=3XXXXXX,(L)
main35322-0R020i201212-201608
T=11.567,MARK 2,(L)
main35322-0R020i201501-201608
T=11.567,MARK 2,AXLE NO.=3XXXXXX,(L)
main35322-0R030i201212-201608
T=11.567,MARK 3,(L)
main35322-0R030i201501-201608
T=11.567,MARK 3,AXLE NO.=3XXXXXX,(L)
main35322-0R040i201212-201608
T=11.567,MARK 4,(L)
main35322-0R040i201501-201608
T=11.567,MARK 4,AXLE NO.=3XXXXXX,(L)
main35322-0R050i201501-201608
T=11.567,MARK 5,AXLE NO.=3XXXXXX,(L)
main35322-0R050i201212-201608
T=11.567,MARK 5,(L)
main35322-33110i201109-201409
T=11.567,MARK 1
main35322-33110i201211-201608
T=11.567,MARK 1,(J)
main35322-33110i201501-201608
T=11.567,MARK 1,AXLE NO.=3XXXXXX,(J)
main35322-33120i201211-201608
T=11.567,MARK 2,(J)
main35322-33120i201109-201409
T=11.567,MARK 2
main35322-33120i201501-201608
T=11.567,MARK 2,AXLE NO.=3XXXXXX,(J)
main35322-33130i201211-201608
T=11.567,MARK 3,(J)
main35322-33130i201109-201409
T=11.567,MARK 3
main35322-33130i201501-201608
T=11.567,MARK 3,AXLE NO.=3XXXXXX,(J)
main35322-33140i201109-201409
T=11.567,MARK 4
main35322-33140i201211-201608
T=11.567,MARK 4,(J)
main35322-33140i201501-201608
T=11.567,MARK 4,AXLE NO.=3XXXXXX,(J)
main35322-33150i201211-201608
T=11.567,MARK 5,(J)
main35322-33150i201109-201409
T=11.567,MARK 5
main35322-33150i201501-201608
T=11.567,MARK 5,AXLE NO.=3XXXXXX,(J)
main35322-48110i201608-202009
T=16.66
35370SHAFT ASSY, STATOR
main35370-07010i201109-201608
(L)
main35370-07010i201501-201608
AXLE NO.=3XXXXXX,(L)
main35370-33031i201501-201608
AXLE NO.=3XXXXXX,(J)
main35370-33031i201211-201608
(J)
main35370-33031i201308-201501
main35370-33042i201109-201308
main35370-48030i201608-201711
TOYOTA:REFER 35-01
sub35370-48040
main35370-48040i201608-202009
AISIN AW:REFER 35-01

15 parts on this diagram · 2 diagrams in section
