AIR CLEANER

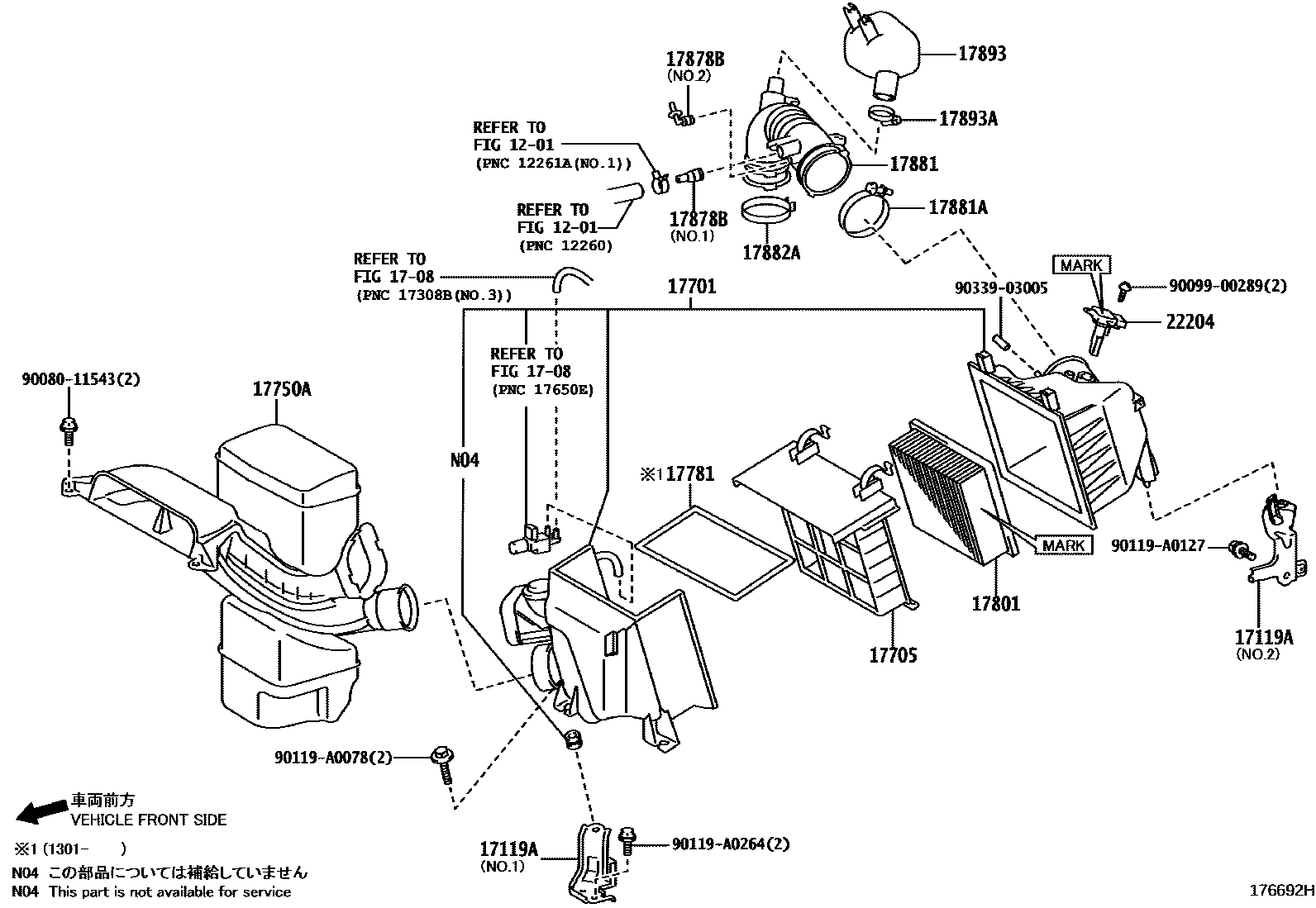

Parts diagram
1201
1708
17119ABRACKET, AIR CLEANER
main17119-0P080i201109-201308
NO.1:REFER ILLUST.
main17119-0P090i201109-201308
NO.2:REFER ILLUST.
main17119-0P110i201608-201711
17701CASE SUB-ASSY, AIR CLEANER
main17701-0P150i201608-201711
main17711-0P023i201109-201301
main17711-0P024i201301-201308
17705CAP SUB-ASSY, AIR CLEANER
main17705-0P090i201109-201301
sub17781-31040
main17705-0P091i201301-201308
main17705-0P230i201608-201711
17750COVER ASSY, AIR CLEANER INLET, SEAL
main17750-0P010i201109-201409
17750AINLET ASSY, AIR CLEANER
main17750-0P100i201711-202009
main17750-0V020i201109-201308
17781SEAL, AIR CLEANER INLET
main17781-0P010i201301-201308
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
main17801-0P051i201409-201608
MARK = MADE IN USA
main17801-31131i201109-201308
MARK 17801-31131
17878BTUBE, VENTILATION
main17878-0P040i201608-201711
NO.1
main17878-0P060i201711-202009
NO.2
main17878-0V010i201109-201308
NO.1:REFER ILLUST.
main17878-0V020i201109-201308
NO.2:REFER ILLUST.
17881HOSE, AIR CLEANER, NO.1
main17881-0P080i201109-201409
main17881-0P250i201608-201711
main17881-0V060i201109-201308
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main90460-93002×2i201409-201608
sub96111-30930
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
main90460-93002×2i201608-201711
sub96111-30930
main90466-71001i201109-201308
17893RESONATOR, INTAKE AIR
main17893-0P090i201109-201409
main17893-0V050i201109-201308
17893ACLAMP, HOSE
main96111-10380i201409-201608
main96111-10400i201109-201308
22204METER SUB-ASSY, INTAKE AIR FLOW
main22204-0V010i201409-201608
MARK 22204-0V010
main22204-0V020i201109-201308
MARK 22204-0V020
main22204-28010i201109-201308
MARK 22204-28010
main22204-75040i201608-201711
9008011543
main90080-11543
9009900289
main90099-00289
90119A0078
main90119-A0078
90119A0127
main90119-A0127
90119A0264
main90119-A0264
9033903005
main90339-03005

22 parts on this diagram · 4 diagrams in section
